BRIG E340 - Boat Drainage System; System Overview and Components

— 20 — "BRIG" inflatable boats

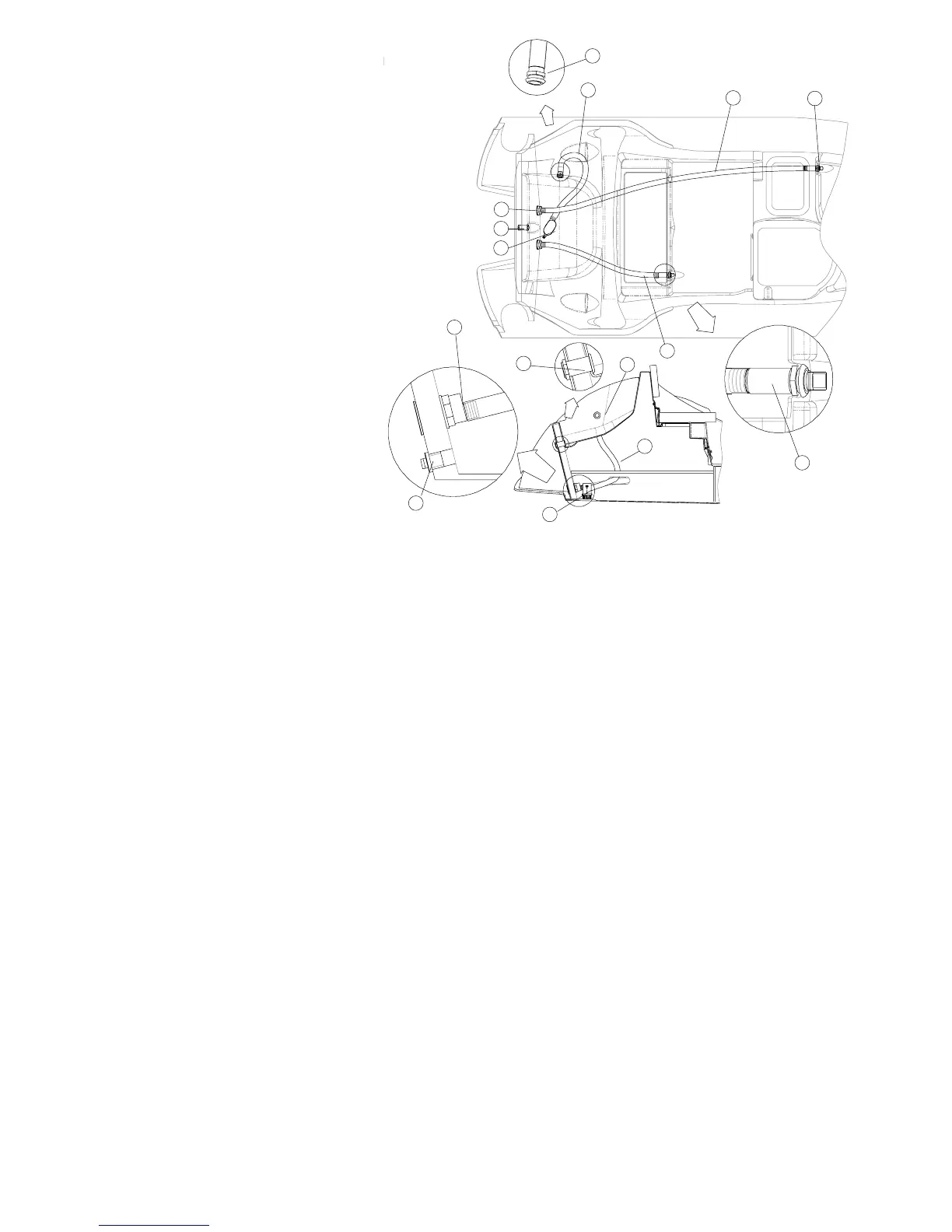

Drain system, (Fig. D8), consists of the three independent
systems:
– cockpit drain system;
– engine recess drain thru-hull;
– hull drain system.
COCKPIT AND ENGINE RECESS DRAIN SYSTEM:
– two cockpit drain sockets with waterproof plugs (1);
– two stern drain sockets with flexible diaphragmes (2);
– two drain hoses (3);
– engine recess drain thru-hull (4).
HULL DRAIN SYSTEM :
– automatic bilge pump (5);
– drain hose (6);
– bilge pump drain thru-hull mounted in the engine
recess (7).
– bilge valve (8).
DRAIN SYSTEM.
1
3
7
4
2
5
6
2
4
6
1
5
7
3
1
3
Fig.D8
8
