BRIG E340 - Fuel System Setup; System Components

— 18 — "BRIG" inflatable boats

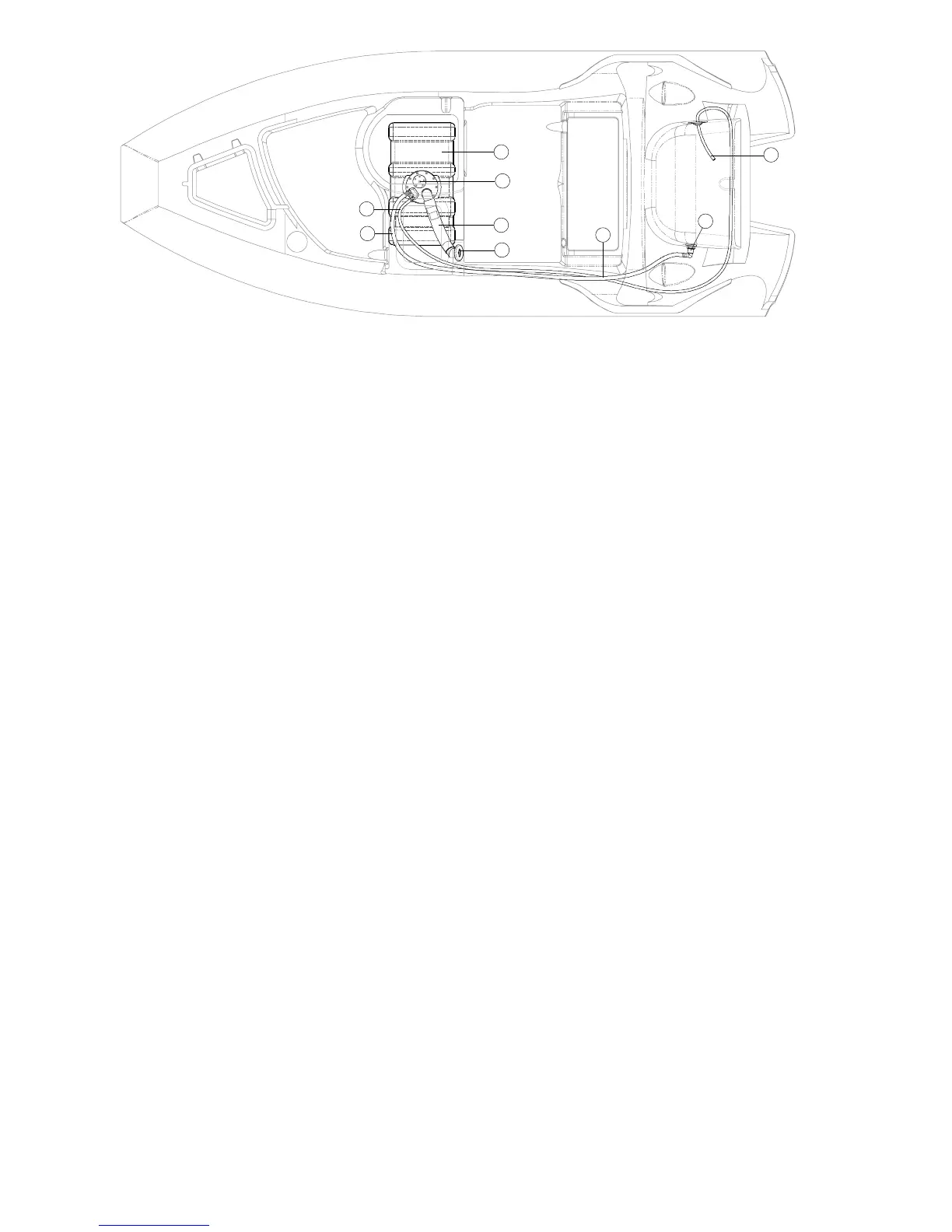

Fuel system consists of the following components (Fig. D7):
– built-in fuel tank (33L for E340 or 43L for E380) (1);
– electric fuel gauge (2);
– fuel line (from fuel fill to fuel tank) (3);
– fuel fill (4);
– fuel line (from fuel fill to fuel tank) (5);
– drain line (6);
– drain branch pipe (7).
FUEL SYSTEM.
5
6
1
2
3
4
5
6
7
Fig.D7
