BRIG E340 - Electrical Wiring Diagram; Electrical System Components

— 22 — "BRIG" inflatable boats
steering console
9
10
8
5
fuel tank
12
13
14

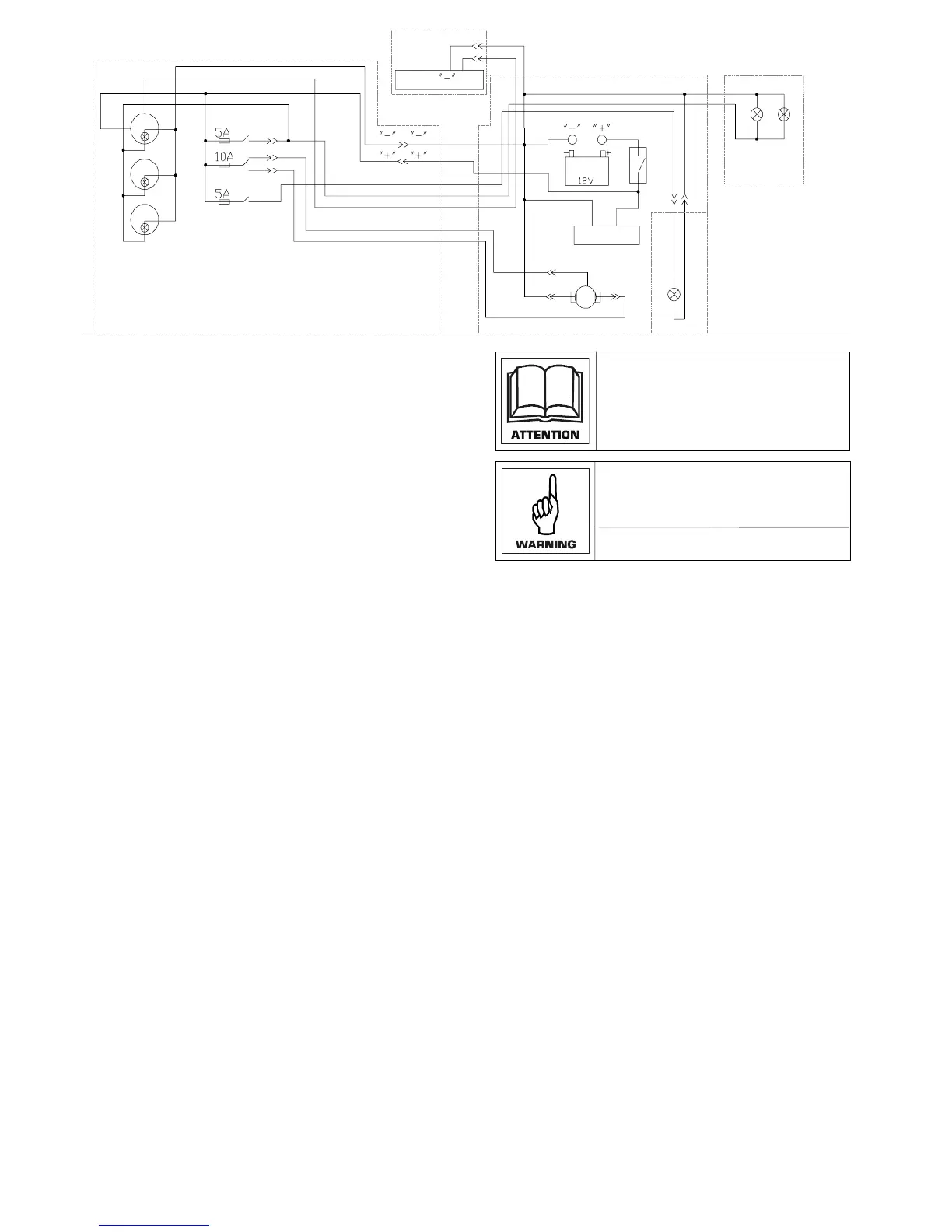

Fig.D9
stern locker
rod
1
4
2
6
7
3
bow plate
11
DESCRIPTION:
1 — Battery (provided on the market).
2 — Battery disconnector.
3 — Outboard motor (provided on the market).
4 — Hull drain pump.
5 — Masthead light (white).
6 — Port light (red).
7 — Starboard light (green).
8 — Fuel level gauge.
9 — Analog fuel clock.
10 — Speedometer.
11 — Tachometer.
12 — Meter lamp and navigation lights switch with 5A safety device.
13 — Hull drain pump "FORCED" / "AUTO" switch with 10A safety device.
14 — Masthead light switch with 5A safety device.
WIRING DIAGRAM.
Any modification, repair and planned
maintenance may be made by authorized
representative specialists only.
Do not touch the electrical equipment
with wet hands.
When leaving the boat, remember
to disconnect the batteries.
