BRIG E340 - Trailer Support Guidelines; Trailer Support Points

— 24 — "BRIG" inflatable boats
BOAT TRAILERING.
Installed on a trailer (or on kell-blocks for storage) the boat should been laying on all surface of the Basic loading area (keel line)
(see Fig. T1).
It is possible to install the boat on several reference points. Thereby the point of support (1) must be an obligatory, and the point
of support (2),(3),(4),(5) - must be an additional.
Lateral roller supports can be used only with a view of prevention from tipping.
IT IS FORBIDDEN
In order to avoid the hull damage trail the boat staying on the side areas only.

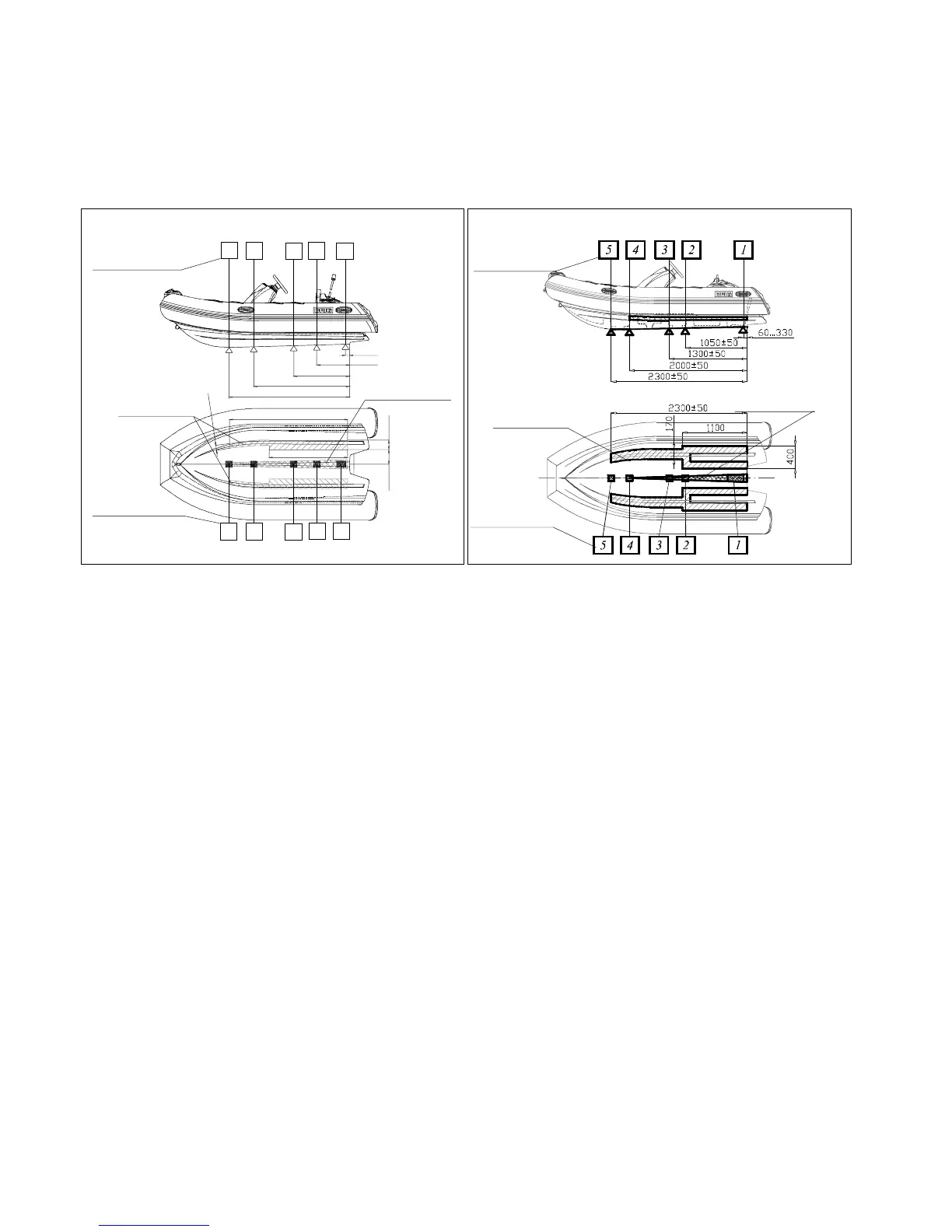

Fig.T1
Support areas
Basic load area
(keel line)
Points of support
Points of support
Support areas
Points of support
Points of support
5
4
3
2
1
60...200
+
- 50500
+
- 50850
+
- 501500
+
- 501900
+
- 501900
1300
150
230
75
5 4 3
2 1
Basic load area
(keel line)
E380E340
