74
4
4
edge of the plug with a non-hardening
sealant.

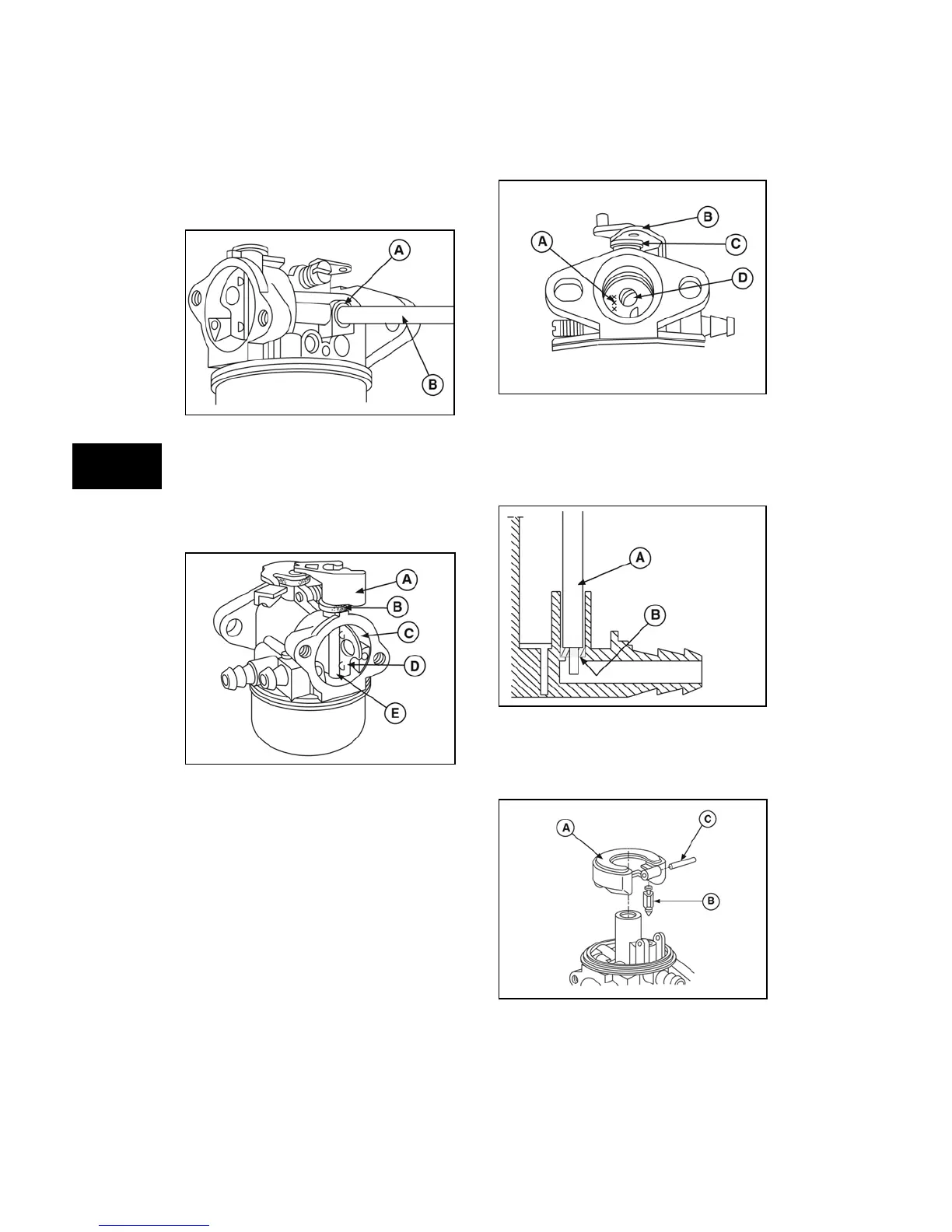

Figure 29
2. Install new foam seal (B, Figure 30) on
choke shaft (E), then slide shaft into
carburetor body (C). Rotate shaft
clockwise (A), and insert choke valve into
slot until centered, with dimples (D)
positioned as shown. Actuate the choke
shaft to check for proper movement.
Figure 30
3. Install new foam seal (C, Figure 31) on
throttle shaft (B), then slide shaft into
carburetor body. Rotate shaft until flat is
facing out. Position throttle valve on flat
with numbers facing out (A), then install
screws (D). Actuate the throttle shaft to
check for proper movement.
Figure 31
4. Install idle speed screw with spring, if
equipped.
5. Using Bushing Driver #19057
(A, Figure 32), install new needle seat with
grooved edge down (B) until firmly seated.
Figure 32
6. Install new inlet needle (B, Figure 33) on
float (A), then position float in carburetor
body. Secure with new hinge pin (C) and
center the pin between the float bosses.
Figure 33
