Preparation
Installation
Before performing any generator maintenance, always
perform the following steps:
1 Set the generator’s circuit breaker to its OFF
position.
2 Press and hold the control panel OFF button.
3 Remove 15 Amp fuse from control panel.
4 Utility voltage is present at generator control
panel. Disconnect power before servicing control
panel by removing the fuses from the transfer
switch.

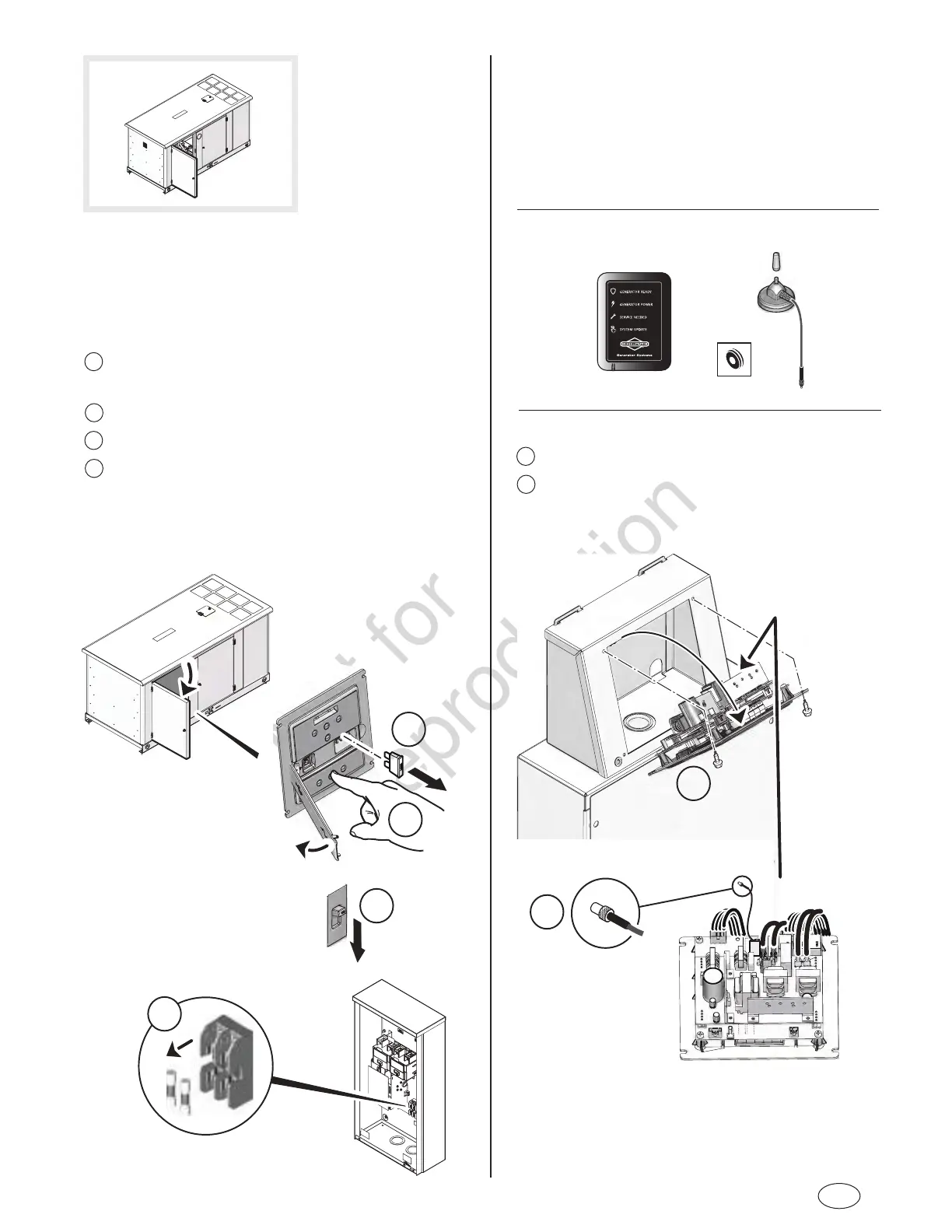

1 Remove the four screws attaching the control panel.
2 Locate the ON BOARD RADIO wire connection.
4
2
1
1
3
Option 1
Control Panel is equipped with an ON BOARD
RADIO
GENERATOR READY
GENERATOR POWER
SERVICE NEEDED
SYSTEM UPDATE
Generator Systems
2
Kit parts required:
7
en
To Next Page
