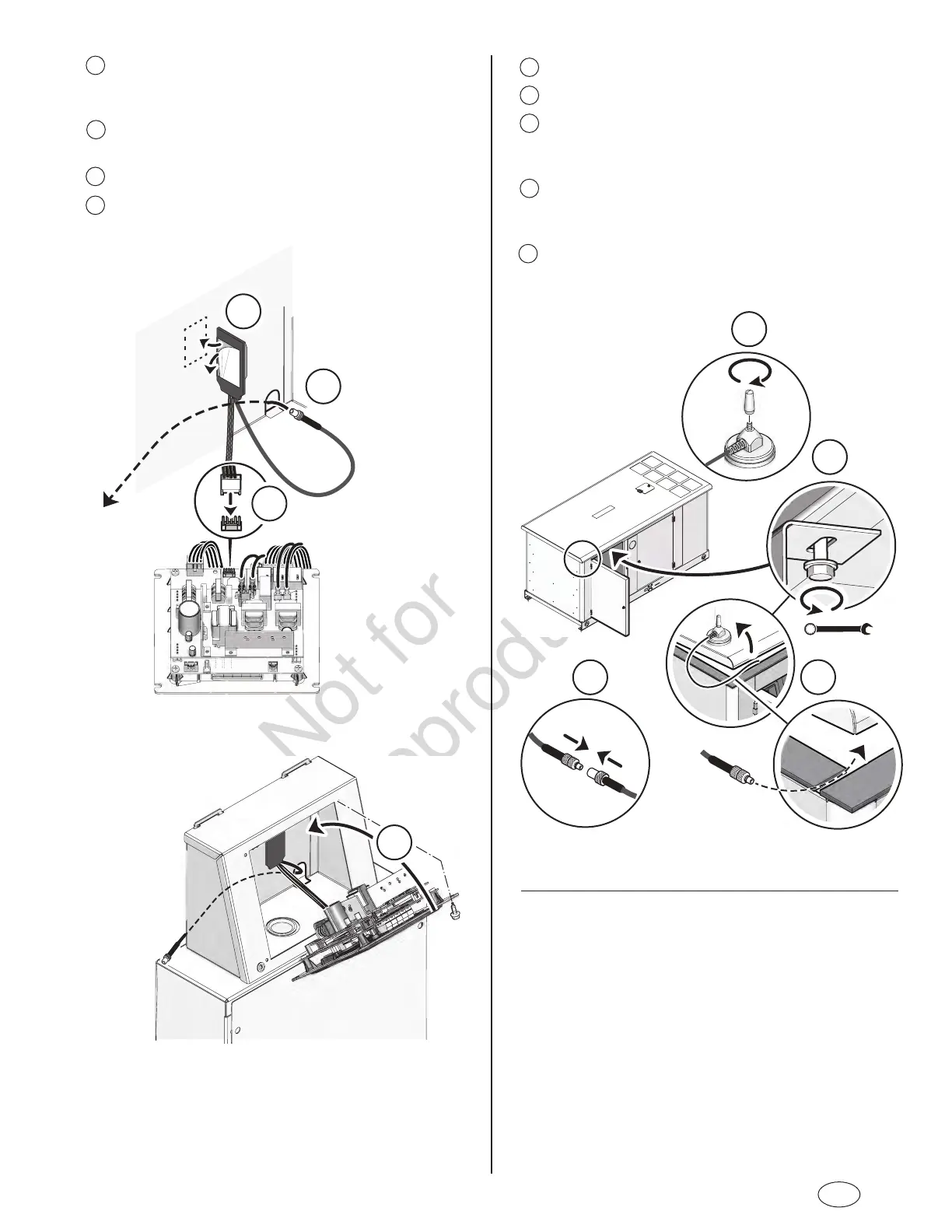

3 Remove RED plastic from adhesive on OFF
BOARD RADIO. Attach radio to inside wall under
control panel. Press down firmly.
4 Insert the antenna wire through inside cabinet hole
and around the backside as shown.
5 Plug connector into control panel as shown.
6 Fasten the four screws attaching the control panel.
3
5
6
4
After installation has been completed, replace fuses in
transfer switch, replace 15 Amp fuse in control panel,
and set generator circuit breaker to its ON position.
Go to: LINK MONITOR WITH GENERATOR.
7 Assemble antenna piece to base.
8 Loosen inside roof bolt in corner.
9 Mount the antenna to the top of the roof. While
lifting roof in corner, lay antenna wire in space
between rubber gaskets.
10 Insert antenna wire to the OFF BOARD RADIO wire
until it clicks. Route wire away from sharp objects
and wire tie.
11 Tighten roof bolt (8) securely.
10
7
9
8
7/16
9
