Pop-up Menu

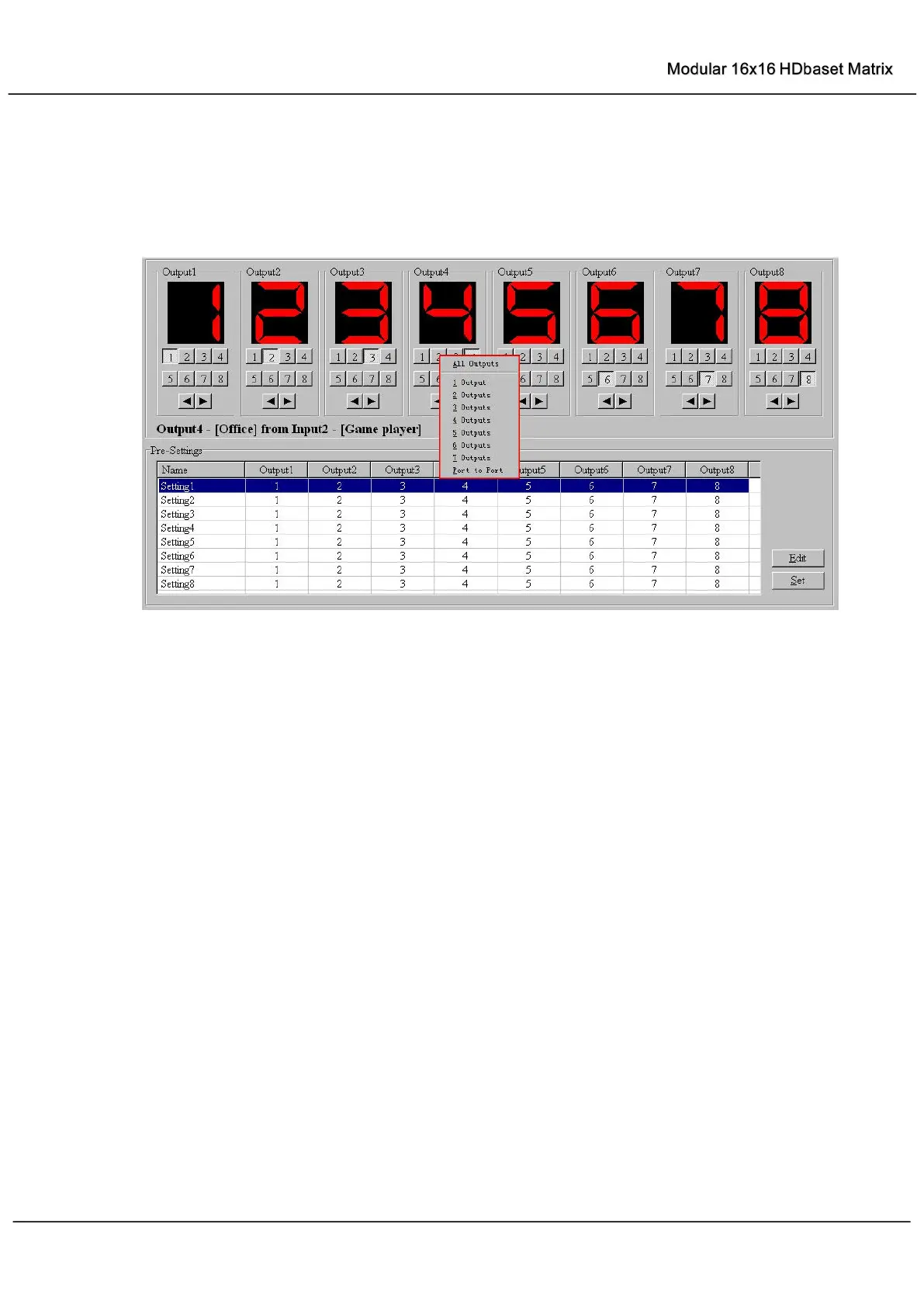

When mouse moves over ② setting buttons, and click mouse right button, menu will pop up
like as:
All Outputs: All Outputs from same Input
“1 Output” to “7 Outputs”: Set current Output (where mouse right clicked) and the next x-1 ( x
range is from 1 to 7, set total x Outputs at the same time ) Output(s) from same Input
Port to Port: Output1 from Input1, Output2 from Input2, Output3 from Input3, etc.
