Back Panel

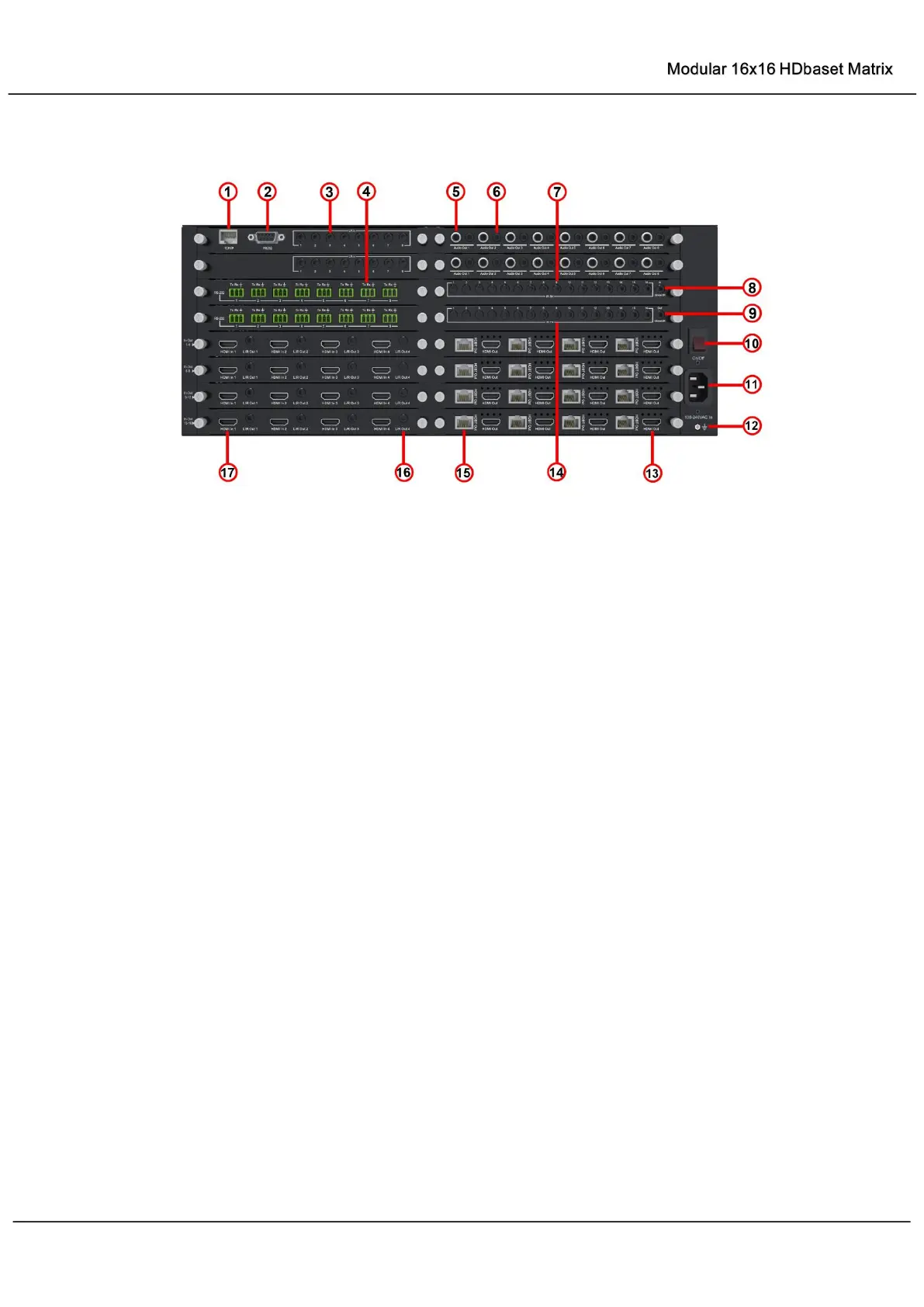

1. RJ45 – TCP control
1. Master RS232 Port –DB9, female
2. L/R Input 1 to 16 – 3.5mm stereo earphone jack, to embed 2CH audio into the
corresponding HDMI Inputs
3. RS232 Port 1 to 16 -- 3-pin phoenix terminal connector
4. Coaxial Output -- RCA connector. Multichannel digital audio loop outs for use with a
sound system or multi-channel zone amplifier - Audio outputs follow the corresponding
HDBaseT outputs e.g. Audio out 1 follows HDBaseT output 1.
5. L/R Output -- 3.5mm stereo earphone jack. Analog audio loop outs for use with a
sound system or multi-channel zone amplifier - Audio outputs follow the corresponding
HDBaseT outputs e.g. Audio out 1 follows HDBaseT output 1.
6. IR Output 1 to 16 –3.5mm mono phone-jack, connect to IR emitter cable.
7. Global IR Output -- 3.5mm mono phone-jack.
8. Global IR Input -- 3.5mm mono phone-jack.
9. Power Switch – Power on/off the matrix
10. DC Power Input – Connect to DC power supply included in package
11. GND – Connect to ground
12. HDMI Output – Connect to HDMI sink
13. IR Input 1 to 16 – 3.5mm stereo phone-jack, connect to IR sensor cable
14. HDBaseT output – Connect to HDBT Receiver
15. L/R Output – 3.5mm stereo earphone jack. Extract analog audio from corresponding
HDMI input.
16. HDMI Input – Connect to HDMI source
