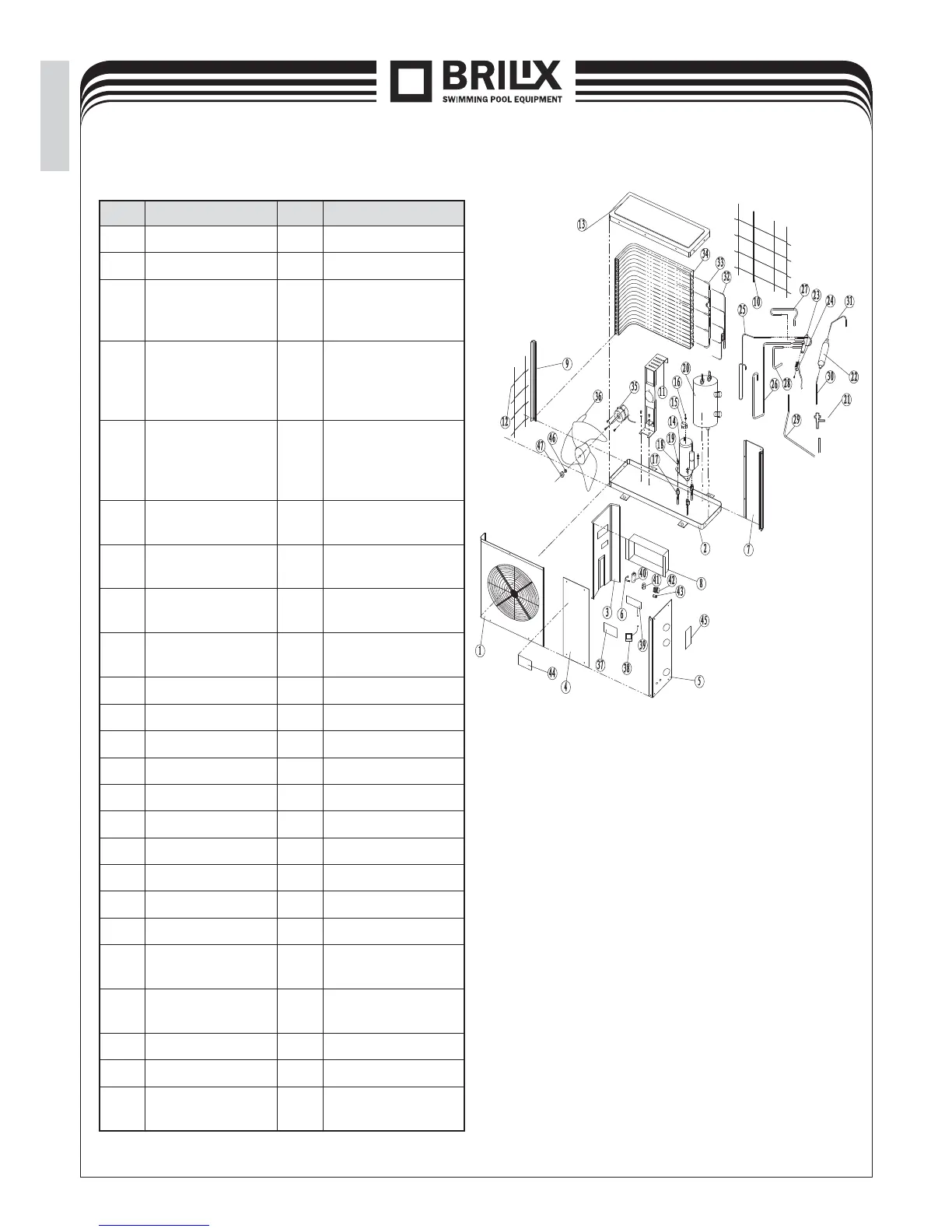

9. Schematic representation and list of parts
Num Component name Num Component name
1 ventilation panel 25 air outlet hose
2 base 26 air return hose
3 central panel 27
titanium tube
to the four-way
valve E
4 front panel 28
air collection tube
from the four-way
valve C to the
capacitor
5 side panel 29
tube from the
capillary tubes
to the liquid
separator
6 capacitor terminal 30
tube from the filter
to the capillary tubes
7 rear panel 31
tube from the filter
to the titanium tube
8 terminal board 32
liquid separator
assembly
9 rear support rod 33
air connection tube
assembly
10 rear grid 34 capacitor
11 motor console 35 fan motor
12 side grid 36 fan blade
13 top cover 37 wiring diagram
14 compressor 38 control panel
15 compressor cover 39 controller
16 nut 40 compressor capacitor
17 shock-proof gasket 41 fan capacitor
18 compressor gasket 42 cable terminals
19 nut 43 cable clamp
20
titanium heat
exchanger in PVC
44 logo
21
electronic
expansion valve
45 name plate
22 filter 46 spring washer
23 Four-way valve 47 nut
24
four-way valve
connection
