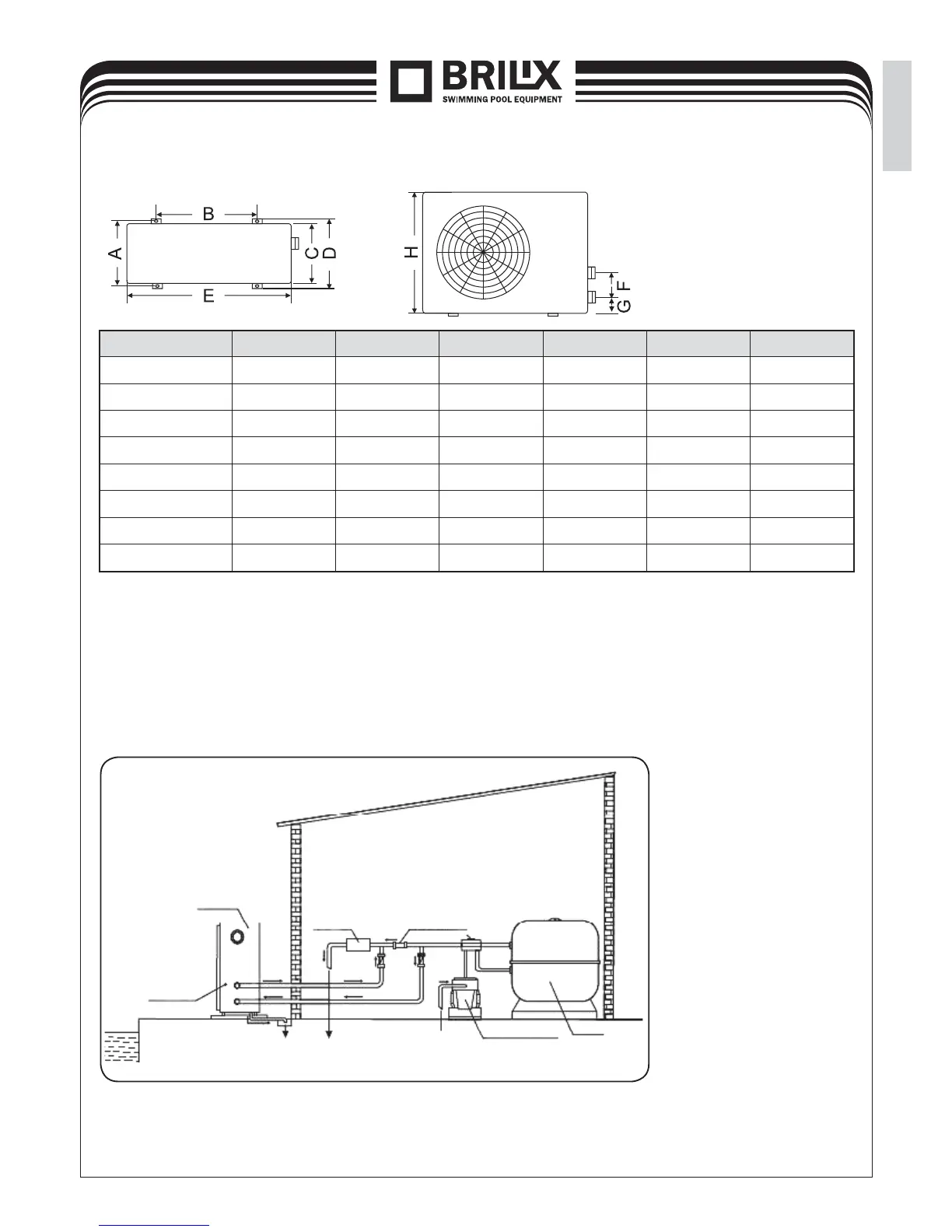

3. Dimensions
Models XHP 40 XHP 60 XHP 100 XHP 140 XHP 160 XHP 200
A 290 350 350 360 410 410
B 410 680 680 655 650 650
C 265 280 280 300 360 360
D 290 350 350 360 410 410
E 750 930 930 1000 1045 1045
F 210 210 230 340 560 560
G 838383838383
H 500 550 550 620 695 695
Unit: mm
4. Installation
4.1 Installation illustration
heat pump
water treatment
side joining valve
input for
power cable
output
input
discharge pipe for
condensed water
discharge
spout
swimming pool
water feed
water input
water pump
filter
