Brilix XHPFDPLUS60 - 5.1 LED Wire Controller Functions

13
5.Operation
5.1 The functions of LED wire controller
5.2 How to know operation parameter
(LED display show real time till HP unit is power off)
(1) Long press
5 seconds to enter operating parameter interface.
(2) Under parameter interface, Press
or to check the parameters
(3) Leave it 8 seconds, LED will display water in temperature (under running) or time (until stops)
(4) Under current mode, press
or to modify the water setting temperature whenever it is ON/OFF
status.
(5) While running, the LED displays the water-in temperature and current mode

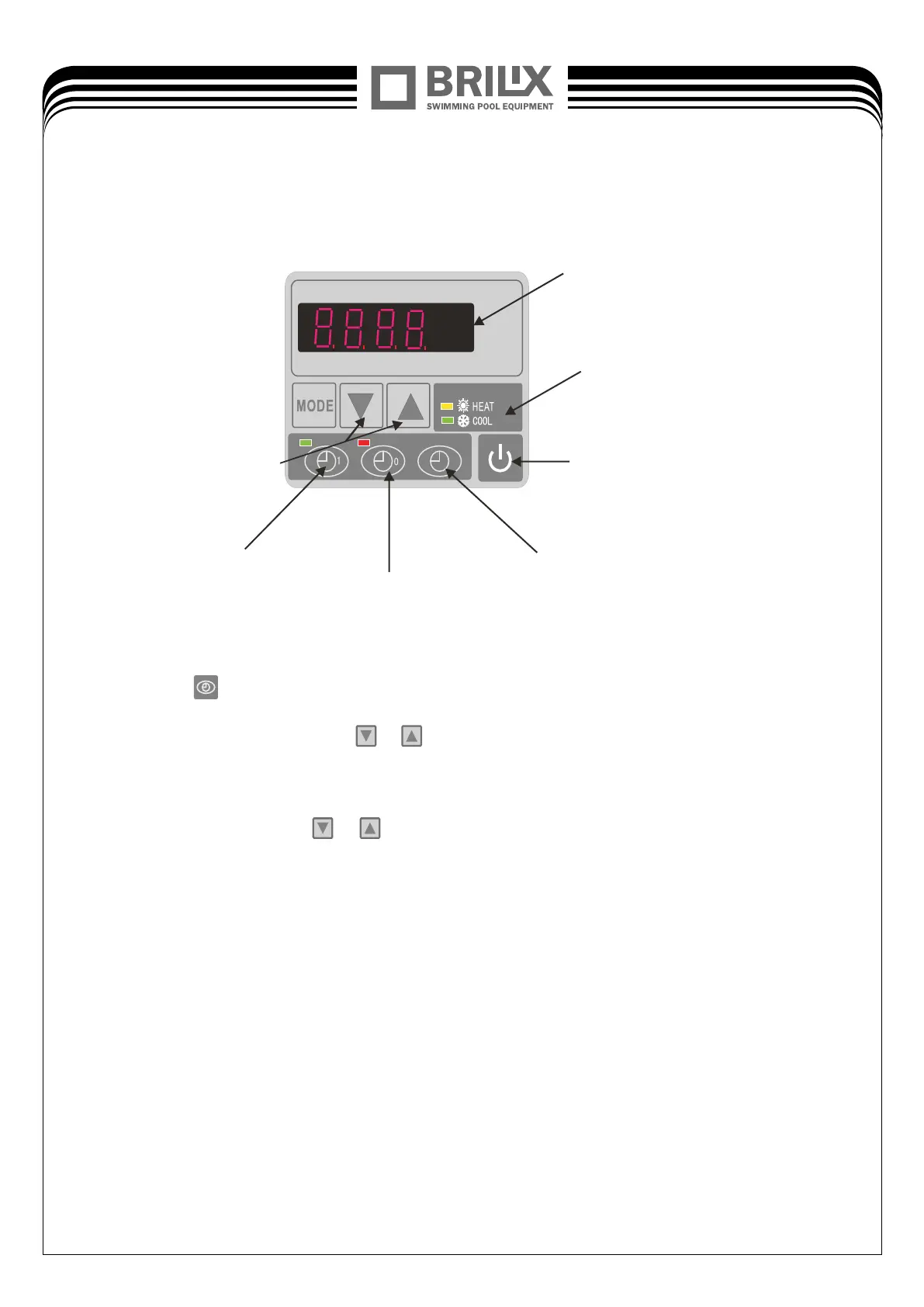

LED display
Operation mode display
ON/OFF
Time button
Timer off button
Timer on button
Up and down button
- The cables must be properly installed to prevent interference.
- The pump is intended for connection to a general power supply with earth connection.
- Section of the cable; This section is indicative and should be checked and adapted according to the needs
and conditions of use.
- The tolerance of acceptable voltage variation is +/- 10% during operation.
The connections must be dimensioned according to the power of the device and the state of installation.
13
5.Operation
5.1 The functions of LED wire controller
5.2 How to know operation parameter
(LED display show real time till HP unit is power off)
(1) Long press
5 seconds to enter operating parameter interface.
(2) Under parameter interface, Press
or to check the parameters
(3) Leave it 8 seconds, LED will display water in temperature (under running) or time (until stops)
(4) Under current mode, press
or to modify the water setting temperature whenever it is ON/OFF
status.
(5) While running, the LED displays the water-in temperature and current mode
LED display
Operation mode display
ON/OFF
Time button
Timer off button
Timer on button
Up and down button
- The cables must be properly installed to prevent interference.
- The pump is intended for connection to a general power supply with earth connection.
- Section of the cable; This section is indicative and should be checked and adapted according to the needs
and conditions of use.
- The tolerance of acceptable voltage variation is +/- 10% during operation.
The connections must be dimensioned according to the power of the device and the state of installation.
