Spring Pin
25
Step 5

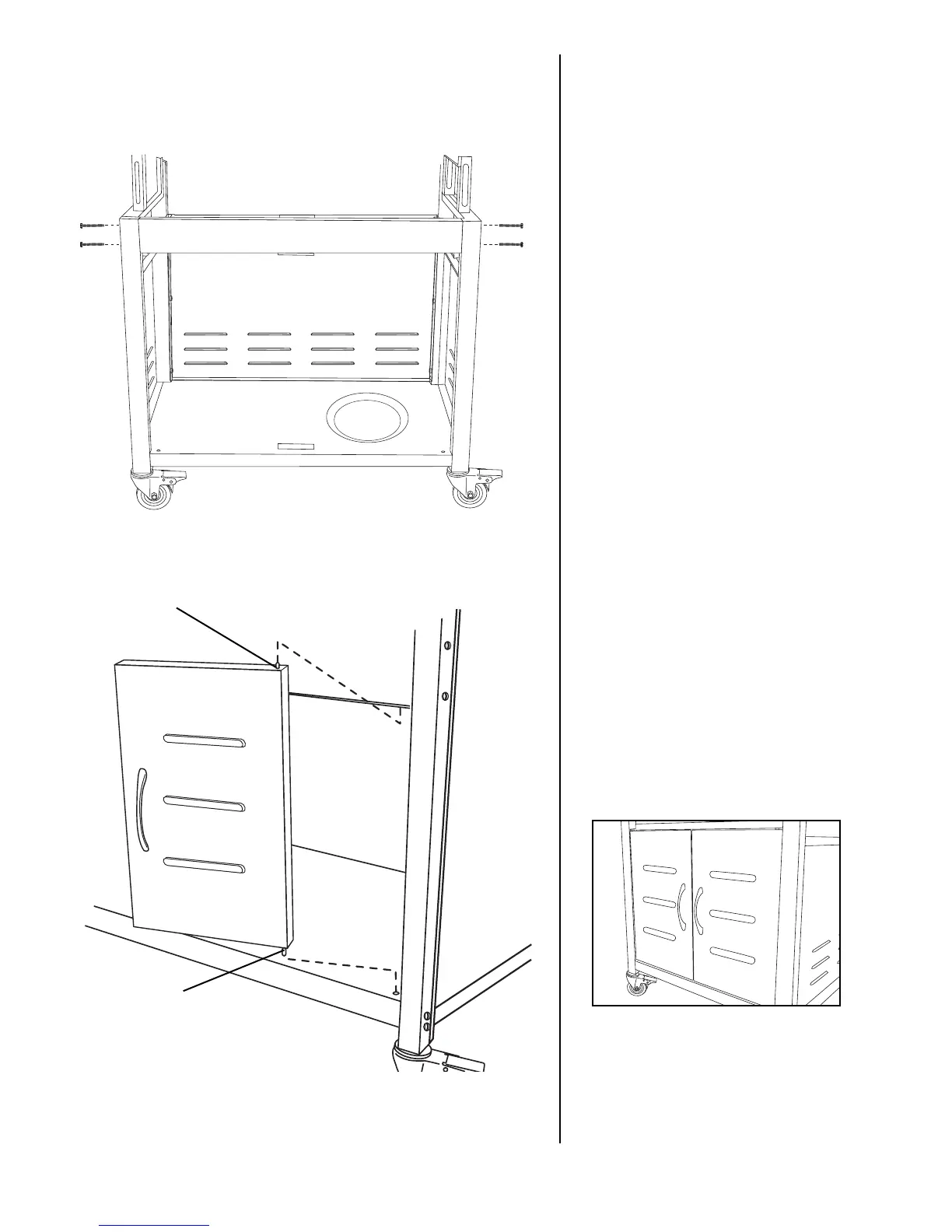

Install door bracket using the four
M6 X 60mm bolts. Make sure door
stop is set toward back of cart.
NOTE: Leave bolts hand tight until
Step 9.
Step 6
Insert right side door pivot into the
hole in bottom cart shelf. Then align
door with cart frame, depress
spring pin located on top edge of
door and slide door toward side
cart panel until spring pin locks into
hole in door bracket. Repeat for
other door.
Door Pivot
