Step 8

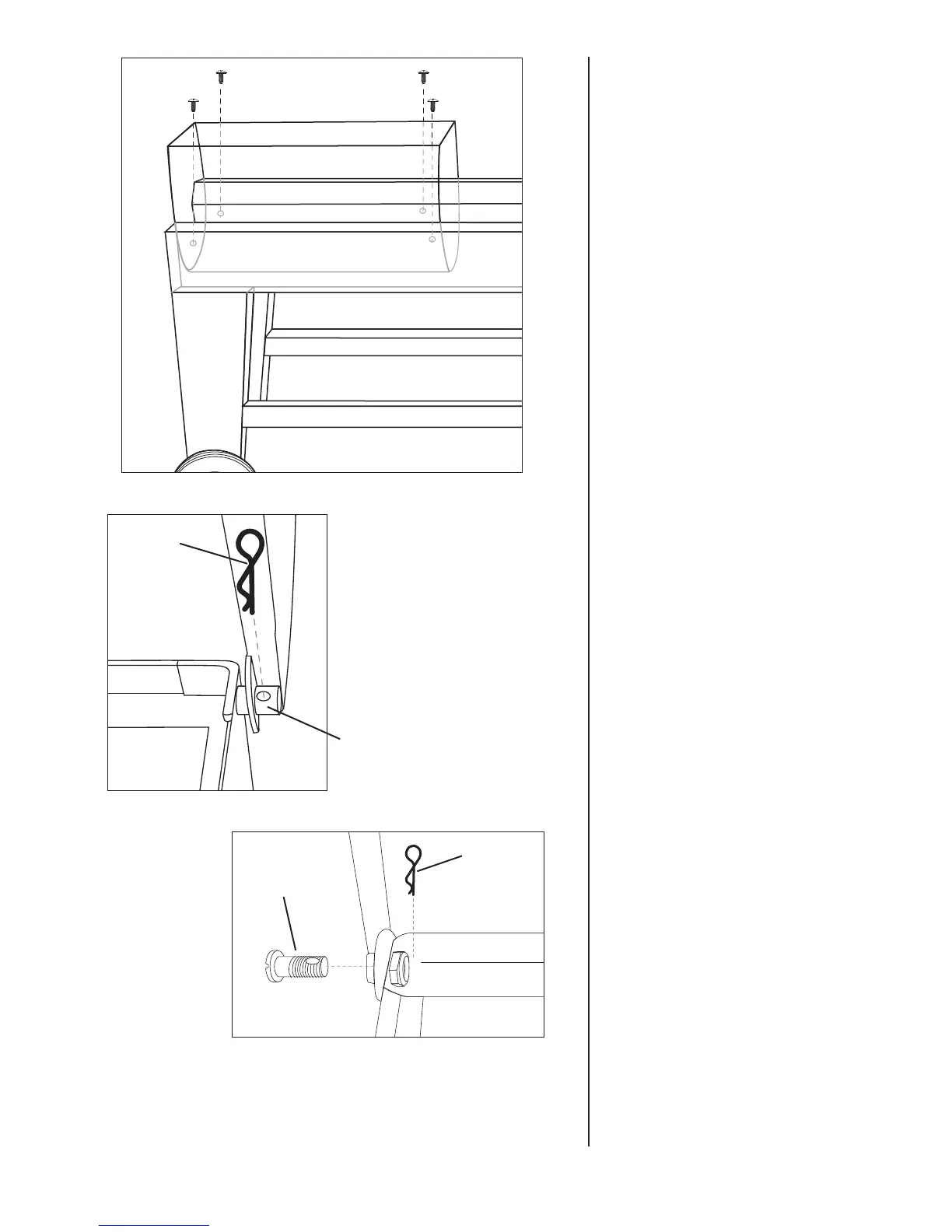

Attach gas grill bottom to the cart base
using four M6 X 10 mm bolts. Repeat for
charcoal grill bottom.
Step 9
Attach the gas grill lid to the gas grill
bottom by inserting hood over hinge post.
Then insert hinge bolt through other hinge
and secure both sides using one large and
one small hinge pin as shown. Repeat for
charcoal grill lid.
Small
Hood Pin
Large
Hood Pin
Hinge Post
Hood Hinge Bolt
To Next Page
