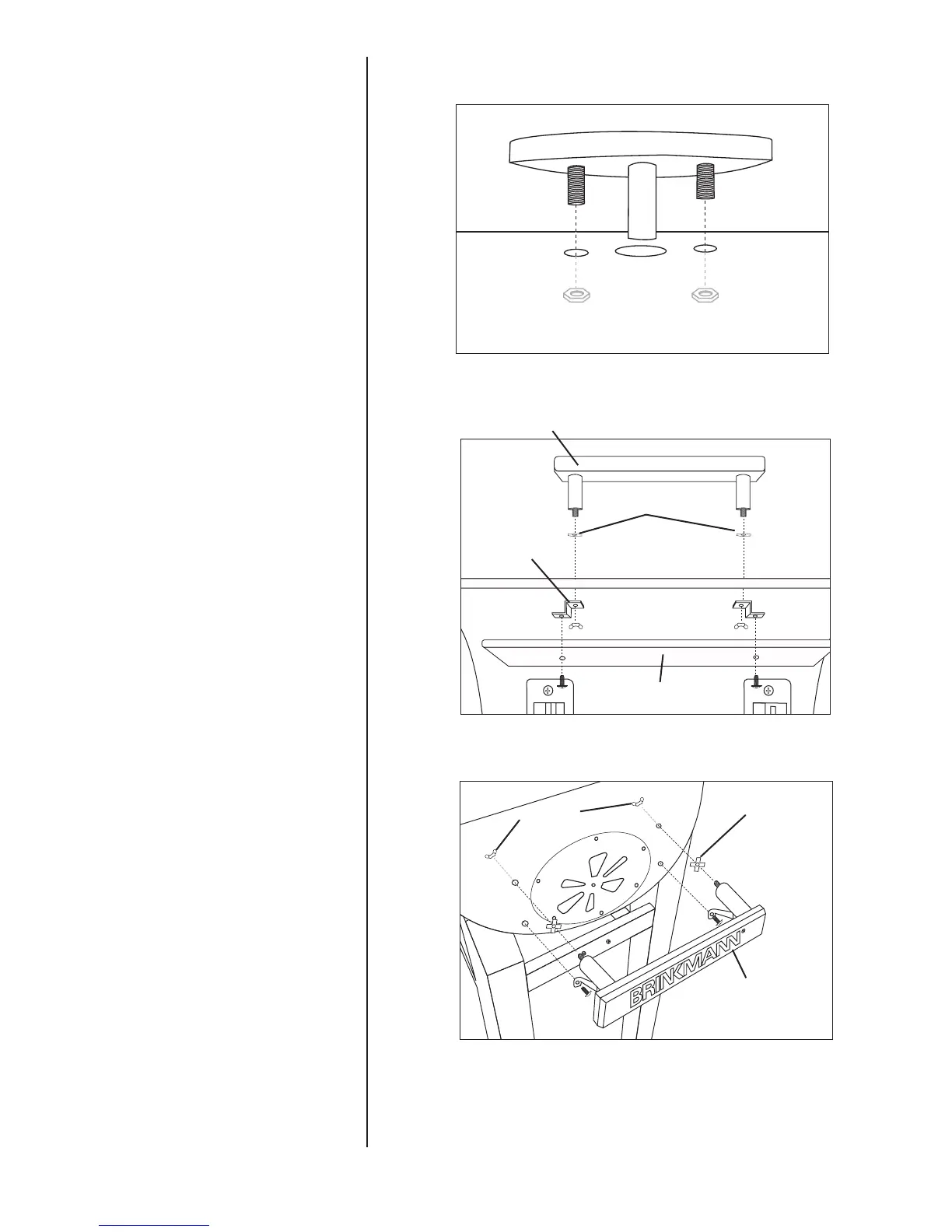

Step 10
Attach temperature gauge to lid using
pre-attached M5 nuts and tighten securely.
Repeat for other temperature gauge.
Step 11
Attach grill handles and heat shield
brackets to gas and charcoal grill lids using
two pre-attached wing nuts and cross heat
shields from the lid handles as shown.
Attach handle heat shield to heat shield
brackets using two M6 X 10 mm bolts for
both gas and charcoal grills.
Step 12
Attach the grill side handle to the charcoal
body using two pre-attached wing nuts and
cross heat shields, and two M5 x 10 mm
bolts as shown.
Grill Handle
Heat Shield
Brackets
Handle Heat Shield
Cross Heat Shields
Grill Side Handle
Wing Nuts
Cross Heat Shields
