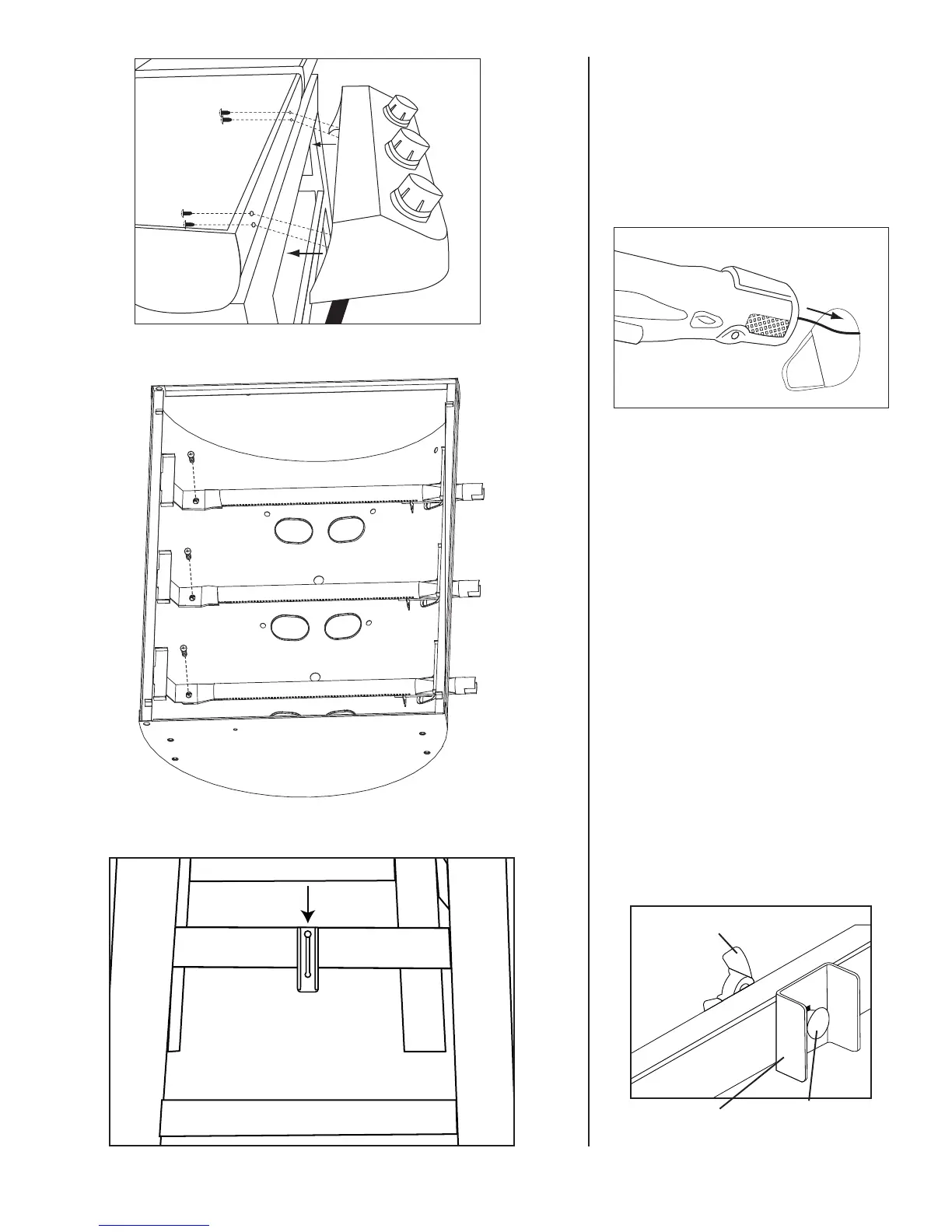

Step 13
Attach main control panel to gas grill using
four M6 X 10 mm bolts from inside gas
grill body.
Step 14
Insert electrode wire and burner openings
through burner holes in gas grill bottom.
Orient burners CORRECTLY by aligning
screw holes in burner to left as shown.
Secure burner tubes using three
M6 X 10 mm bolts.
Note: Make sure burner opening slides
over valve nozzle.
Step 15
Attach the tank bracket by inserting the
pre-attached carriage bolt through the
keyhole, slide down and then use the wing
nut to secure.
Wing Nut
Tank Bracket
Carriage
Bolt
