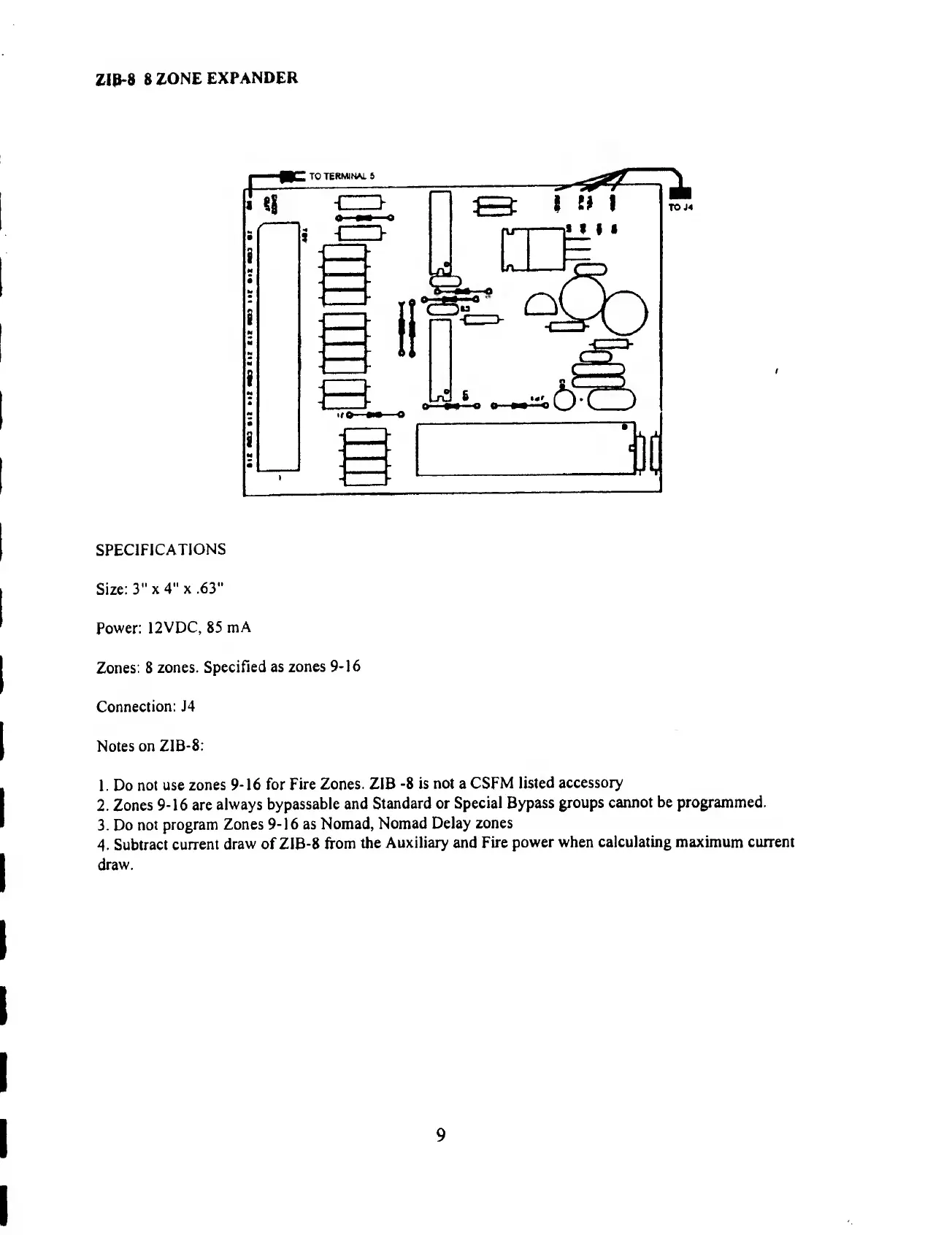

ZIP-8 8 ZONE EXPANDER
SPECIFICATIONS
Size: 3"x4"x .63"
Power: I2VDC, 85 mA
Zones: 8 zones. Specified as zones 9-16
Connection: J4
Notes on ZIB-8:
1. Do not use zones 9-16 for Fire Zones. ZIB -8 is not a CSFM listed accessory
2. Zones 9-16 are always bypassable and Standard or Special Bypass groups cannot be programmed.
3. Do not program Zones 9-16 as Nomad, Nomad Delay zones
4. Subtract current draw of ZIB-8 from the Auxiliary and Fire power when calculating maximum current
draw.
