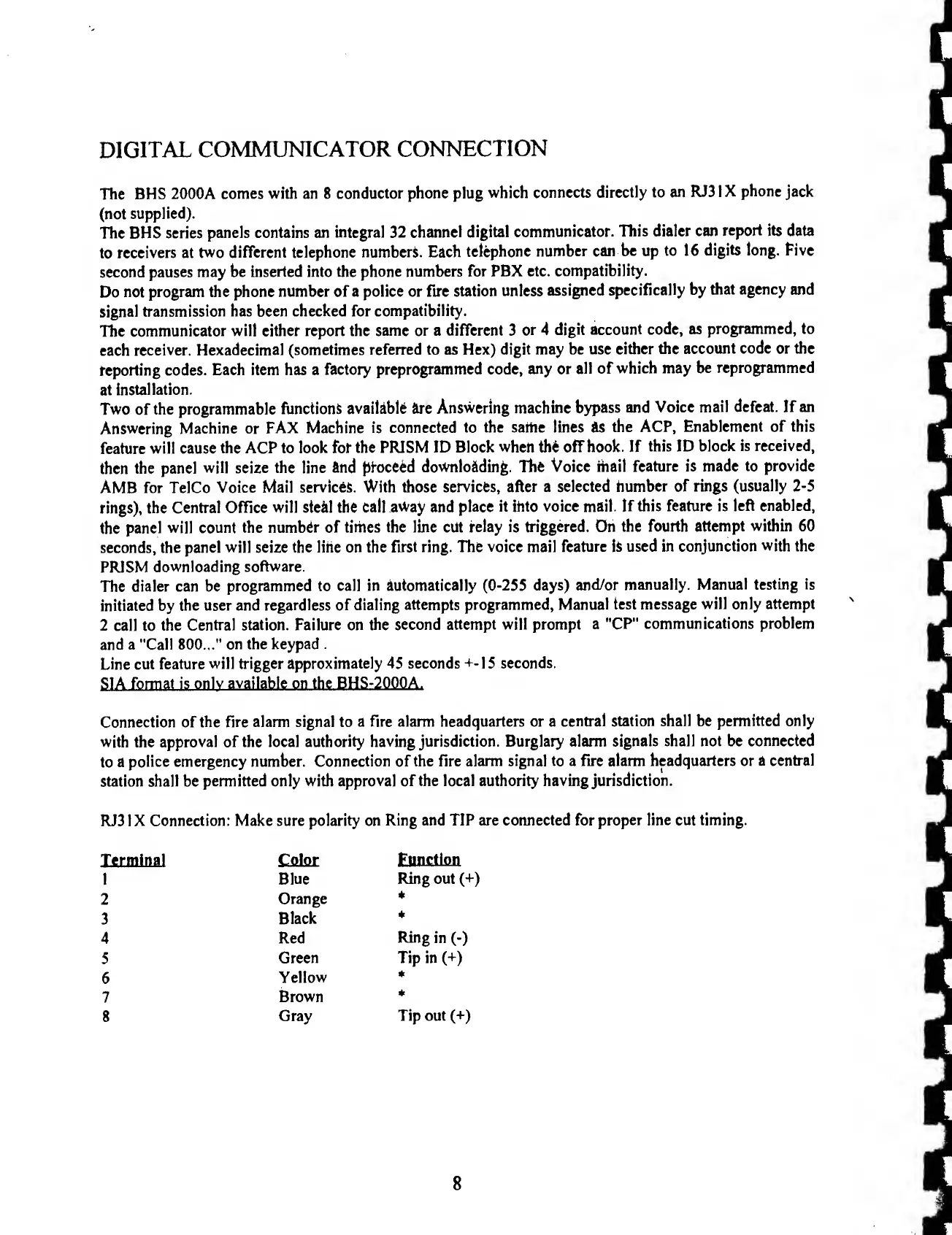

DIGITAL COMMUNICATOR CONNECTION
The BHS 2000A comes with an 8 conductor phone plug which connects directly to an RJ31X phone jack
(not supplied).
The BHS series panels contains an integral 32 channel digital communicator. This dialer can report its data
to receivers at two different telephone numbers. Each telephone number can be up to 16 digits long. Five
second pauses may be inserted into the phone numbers for PBX etc. compatibility.
Do not program the phone number of a police or fire station unless assigned specifically by that agency and
signal transmission has been checked for compatibility.
The communicator will either report the same or a different 3 or 4 digit account code, as programmed, to
each receiver. Hexadecimal (sometimes referred to as Hex) digit may be use either the account code or the
reporting codes. Each item has a factory preprogrammed code, any or all of which may be reprogrammed
at installation.
Two of the programmable functions available are Answering machine bypass and Voice mail defeat. If an
Answering Machine or FAX Machine is connected to the sathe lines 4S the ACP, Enablement of this
feature will cause the ACP to look for the PRISM ID Block when the off hook. If this ID block is received,
then the panel will seize the line and proceed downloading. The Voice itiail feature is made to provide
AMB for TelCo Voice Mail services. With those services, after a selected dumber of rings (usually 2-5
rings), the Central Office will steal the call a\Vay and place it ihto voice mail. If this feature is left enabled,
the panel will count the number of times the line cut relay is triggered. On the fourth attempt within 60
seconds, the panel will seize the line on the first ring. The voice mail feature is used in conjunction with the
PRISM downloading software.
The dialer can be programmed to call in automatically (0-255 days) and/or manually. Manual testing is
initiated by the user and regardless of dialing attempts programmed, Manual test message will only attempt
2 call to the Central station. Failure on the second attempt will prompt a "CP" communications problem
and a "Call 800..." on the keypad .
Line cut feature will trigger approximately 45 seconds +-15 seconds.
S1A format is only available on the.BHS-2Q0QA ,
Connection of the fire alarm signal to a fire alarm headquarters or a central station shall be permitted only
with the approval of the local authority having jurisdiction. Burglary alarm signals shall not be connected
to a police emergency number. Connection of the fire alarm signal to a fire alarm headquarters or a central
station shall be permitted only with approval of the local authority having jurisdiction.
RJ3IX Connection: Make sure polarity on Ring and TIP are connected for proper line cut timing.
Terminal
Color
Eunctlpn
1
Blue
Ring out (+)
2
Orange
*
3
Black
+
4
Red
Ring in (-)
5
Green Tip in (+)
6
Yellow
*
7
Brown
*
8
Gray
Tip out (+)
