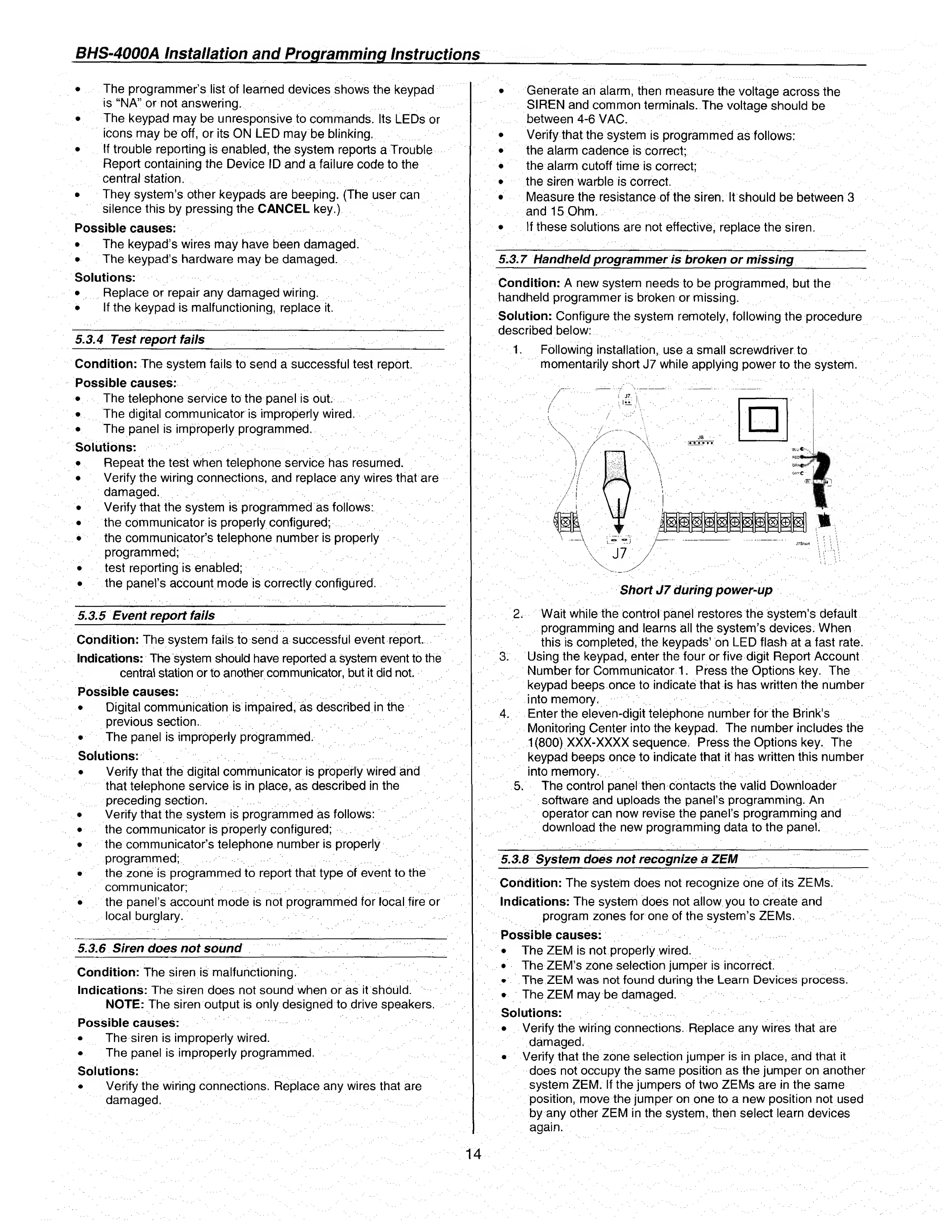

BHS-4000A Installation and Propramminq Instructions
• The programmer’s list of learned devices shows the keypad
is “NA” or not answering.
• The keypad may be unresponsive to commands. Its LEDs or
icons may be off, or its ON LED may be blinking.
• If trouble reporting is enabled, the system reports a Trouble
Report containing the Device ID and a failure code to the
central station.
• They system’s other keypads are beeping. (The user can
silence this by pressing the CANCEL key.)
Possible causes:
• The keypad’s wires may have been damaged.
• The keypad’s hardware may be damaged.
Solutions:
• Replace or repair any damaged wiring.
• If the keypad is malfunctioning, replace it.
5.3.4 T est report fails
Condition: The system fails to send a successful test report.
Possible causes:
• The telephone service to the panel is out.
• The digital communicator is improperly wired.
• The panel is improperly programmed.
Solutions:
• Repeat the test when telephone service has resumed.
• Verify the wiring connections, and replace any wires that are
damaged.
• Verify that the system is programmed as follows:
• the communicator is properly configured;
• the communicator’s telephone number is properly
programmed;
• test reporting is enabled;
• the panel’s account mode is correctly configured.
5.3.5 E vent report fails _ .
Condition: The system fails to send a successful event report.
Indications: The system should have reported a system event to the
central station or to another communicator, but it did not.
Possible causes:
• Digital communication is impaired, as described in the
previous section.
• The panel is improperly programmed.
Solutions:
• Verify that the digital communicator is properly wired and
that telephone service is in place, as described in the
preceding section.
• Verify that the system is programmed as follows:
• the communicator is properly configured;
• the communicator’s telephone number is properly
programmed;
• the zone is programmed to report that type of event to the
communicator;
• the panel’s account mode is not programmed for local fire or
local burglary.
5.3.6 S iren does not sound
Condition: The siren is malfunctioning.
Indications: The siren does not sound when or as it should.
NOTE: The siren output is only designed to drive speakers.
Possible causes:
• The siren is improperly wired.
• The panel is improperly programmed.
Solutions:
• Verify the wiring connections. Replace any wires that are
damaged.
• Generate an alarm, then measure the voltage across the
SIREN and common terminals. The voltage should be
between 4-6 VAC.
• Verify that the system is programmed as follows:
• the alarm cadence is correct;
• the alarm cutoff time is correct;
• the siren warble is correct.
• Measure the resistance of the siren. It should be between 3
and 15 Ohm.
• If these solutions are not effective, replace the siren.
5.3.7 H andheld programmer is broken or missing
Condition: A new system needs to be programmed, but the
handheld programmer is broken or missing.
Solution: Configure the system remotely, following the procedure
described below:
1. Following installation, use a small screwdriver to
momentarily short J7 while applying power to the system.
Short J7 during power-up
2. W a i t while the control panel restores the system’s default
programming and learns all the system’s devices. When
this is completed, the keypads’ on LED flash at a fast rate.
3. Using the keypad, enter the four or five digit Report Account
Number for Communicator 1. Press the Options key. The
keypad beeps once to indicate that is has written the number
into memory.
4. Enter the eleven-digit telephone number for the Brink's
Monitoring Center into the keypad. The number includes the
1 (800) XXX-XXXX sequence. Press the Options key. The
keypad beeps once to indicate that it has written this number
into memory.
5. T he control panel then contacts the valid Downloader
software and uploads the panel’s programming. An
operator can now revise the panel’s programming and
download the new programming data to the panel.
5.3.8 S ystem does not recognize a ZEM
Condition: The system does not recognize one of its ZEMs.
Indications: The system does not allow you to create and
program zones for one of the system’s ZEMs.
Possible causes:
• The ZEM is not properly wired.
• The ZEM’s zone selection jumper is incorrect.
V The ZEM was not found during the Learn Devices process.
• The ZEM may be damaged.
Solutions:
• Verify the wiring connections. Replace any wires that are
damaged.
• Verify that the zone selection jumper is in place, and that it
does not occupy the same position as the jumper on another
system ZEM. If the jumpers of two ZEMs are in the same
position, move the jumper on one to a new position not used
by any other ZEM in the system, then select learn devices
again.
