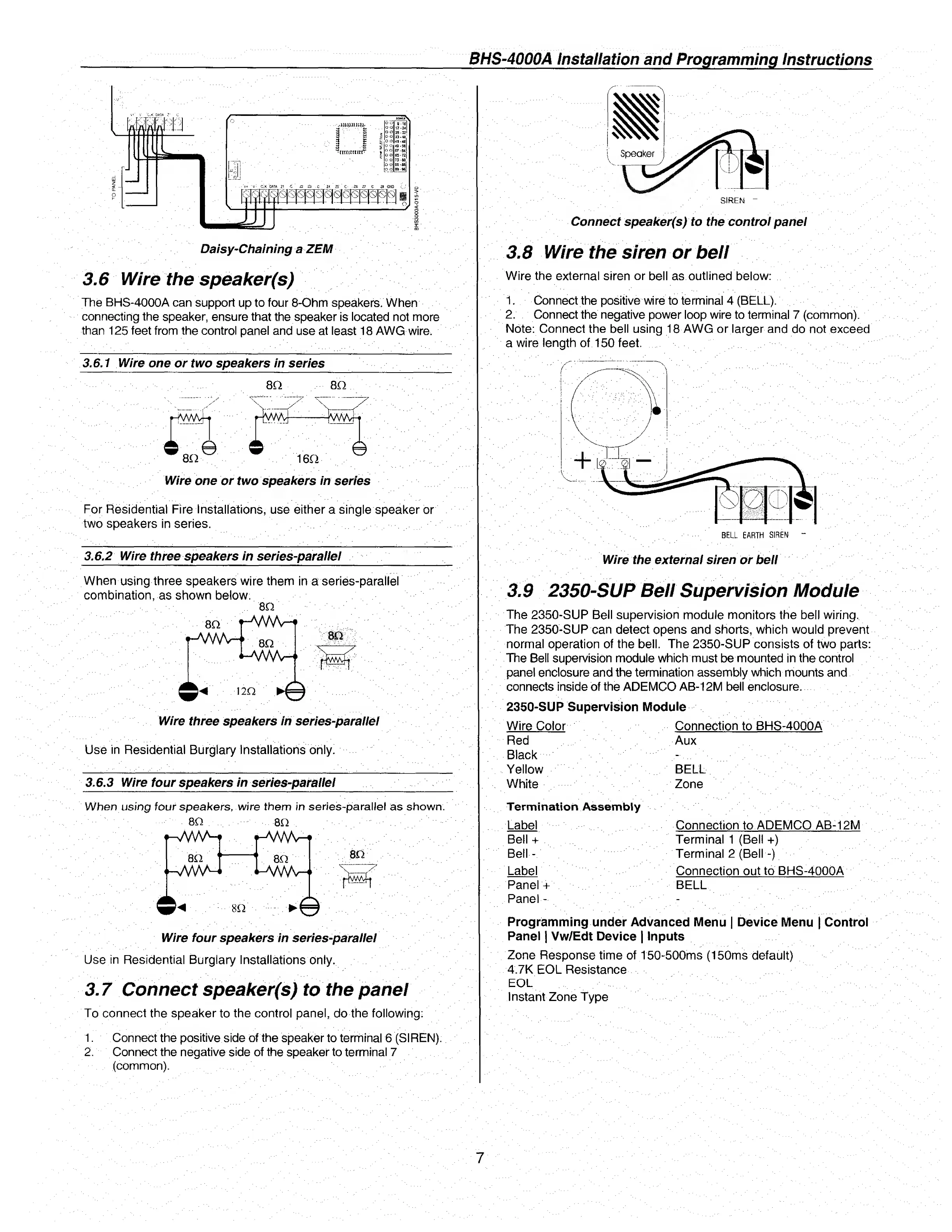

3.6 Wire the speaker(s)
The BHS-4000A can support up to four 8-Ohm speakers. When
connecting the speaker, ensure that the speaker is located not more
than 125 feet from the control panel and use at least 18 AWG wire.
3.6.1 Wire one or two speakers in series
8Q 80
Wire one or two speakers in series
For Residential Fire Installations, use either a single speaker or
two speakers in series.
3.8 Wire the siren or bell
Wire the external siren or bell as outlined below:
1. Connect the positive wire to terminal 4 (BELL).
2. Connect the negative power loop wire to terminal 7 (common).
Note: Connect the bell using 18 AWG or larger and do not exceed
a wire length of 150 feet.
BELL EARTH SIREN “
3.6.2 Wire three speakers in series-paraitei
When using three speakers wire them in a series-parallel
combination, as shown below.
Wire three speakers in series-parailei
Use in Residential Burglary Installations only.
3.6.3 Wire four speakers in series-parailei
Wire four speakers in series-parailei
Use in Residential Burglary Installations only.
3.7 Connect speaker(s) to the panel
To connect the speaker to the control panel, do the following:
1. Connect the positive side of the speaker to terminal 6 (SIREN).
2. Connect the negative side of the speaker to terminal 7
(common).
Wire the external siren or bell
3.9 2350-SUP Bell Supervision Module
The 2350-SUP Bell supervision module monitors the bell wiring.
The 2350-SUP can detect opens and shorts, which would prevent
normal operation of the bell. The 2350-SUP consists of two parts:
The Bell supervision module which must be mounted in the control
panel enclosure and the termination assembly which mounts and
connects inside of the ADEMCO AB-12M bell enclosure.
2350-SUP Supervision Module
Wire Color Connection to BHS-4000A
Red Aux
Black -
Yellow BELL
White Zone
Termination Assembly
Label Connection to ADEMCO AB-12M
Bell + Terminal 1 (Bell +)
Bell - Terminal 2 (Bell -)
Label Connection out to BHS-4Q00A
Panel + BELL
Panel -
Programming under Advanced Menu | Device Menu | Control
Panel | Vw/Edt Device | Inputs
Zone Response time of 150500ms (150ms default)
4.7K EOL Resistance
EOL
Instant Zone Type
