USE AND CARE
MODEL:

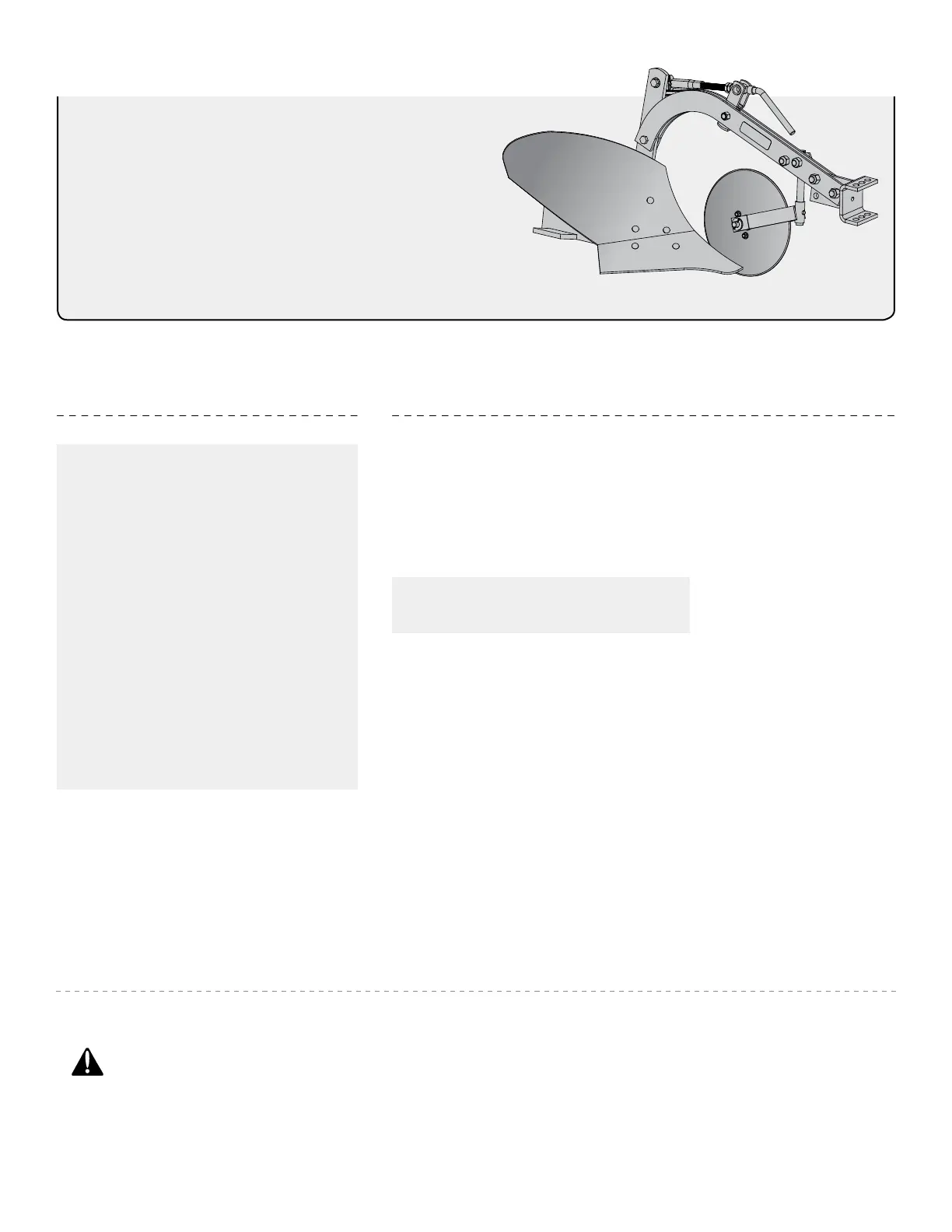

PP-510 PLOW
USE & CARE
SECTION
NOTE: During normal plowing, the right side Tractor Wheels will be riding
in the previously plowed furrow. (A furrow is the cut area your plow makes
while turning the soil).
An initial setting for your plow is required to cut
therstfurrowonlevelground.
PRE-ADJUSTMENTSPECIFICATIONS
Working Width ......... 8" - 10"
......... Steel
Compatability ....... All garden
tractor models*
Settings / Speed ...... 3rd Gear
Full Throttle
DIMENSIONS
Length ................... 42"
Width ................... 12"
Height ................... 23"
*Must be equipped with a sleeve
hitch (purchased through tractor
manufacturer).
PRE-SETS FOR APPROXIMATELY
5"-6" PLOWING DEPTH:
1. Remove stabilizer bolts and nuts from Sleeve Hitch.
The plow must be free to move side to side on hitch).
2. Lower your tractor lift handle and lock in the Lowered position.
(You may need to lower the "attachment depth control" on your
tractor to do this).
3. Mount the Plow to the Sleeve Hitch with the Hitch Pin furnished
with the Hitch. (Refer to Assembly Step #3 on pg 9 of this manual to
select the proper mounting hole).
4. Adjust lift spring tension on hitch as required.
(See hitch manual for instructions).
5. Adjust the depth crank of plow until point of plow share is on the
Refer to gure 1 on pg 14. NOTE: The Plow will appear to be angled to
the left. This will allow the plow to run level when the right hand tractor
wheels are in the plowed furrow.
WARNING -
needs to be ENGAGED at all times while operating the tractor. This actuates the Operator Sensing Device in
DISENGAGED IN ORDER TO RESTART ENGINE.
13 L-1043-3-BEnglish Manual
