Brinly PP-510 - Step 2 CRANK HANDLE; Step 3 HITCH BRACKET

==================================================================================================
ASSEMBLY

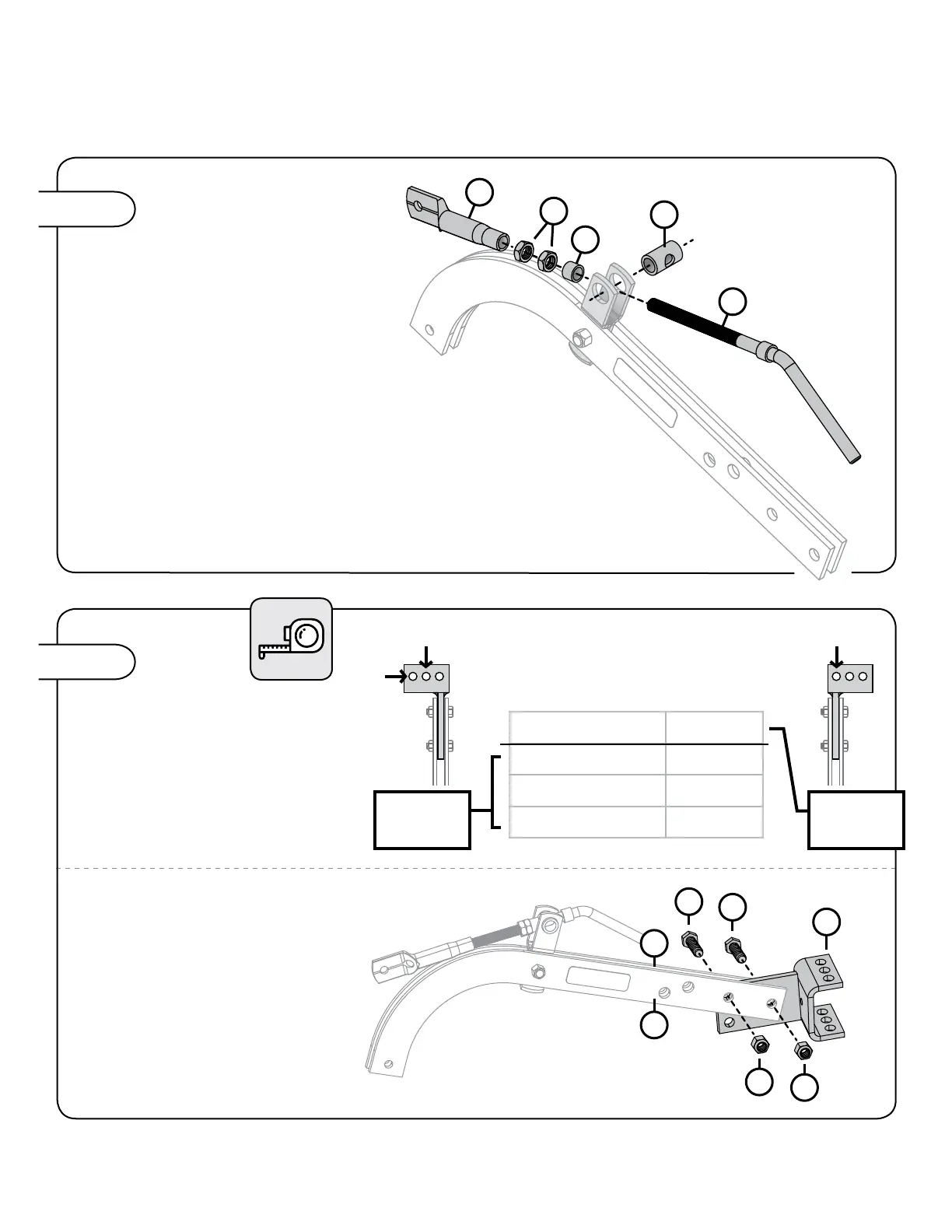

CRANK HANDLE
27

13
27
 1440
11
NOTE: Thread one jam nut (40) against the spacer (14) just
enough to eliminate any excessive movement of the crank against the
trunnion (27), taking care NOT to bind the crank (13).
Usingtwowrenches,lockthesecondjamnut(40)againsttherst.
HITCH BRACKET
Refer to this chart and measure
the distance BETWEEN the rear
wheels on your tractor for the
proper alignment of your bracket.
Using the alignment determined
12
BETWEEN10
and secure using:
30
3
Step 2
Step 3
14
11
40
13
27
Distance Between
Rear Tractor
Wheels (inches)
Use
Hole #
16" - 19" 1R
19" - 21" 2L
21" - 23" 3L
Over 23" 3L
Top View:
Assembly to
the Right
1R
Top View:
Assembly to
the Left
2L
3L
30
12
10
10
3
30
3
9 L-1043-3-BEnglish Manual
