Brinly STS-42BHDK - Page 12

1018189 Rev. C
12
================================================================================================

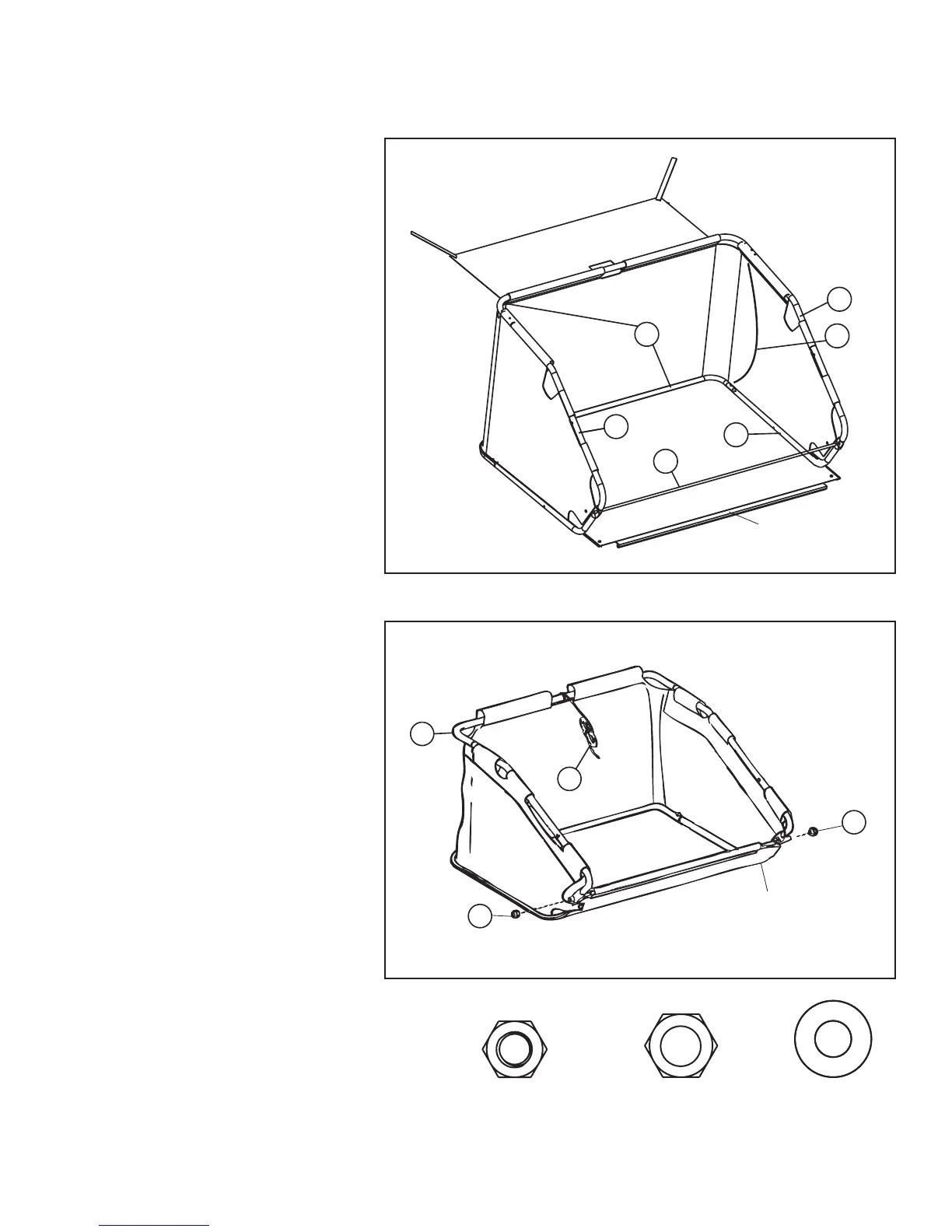

ASSEMBLY
STEP 8
----------------------------
STEP 9
----------------------------
a. Locate and align the holes in the upper
RearTube(53)withthesidetubes(56).
Locate and align the holes in the lower
RearTube(53)withtheLowerTube(52).
b. Stand in the bottom of the hopper.
InserttheendoftheSpringRod(58)into
thelowerholesalignedinstepa.Pullup
ontheupperRearTube(53)andinsert
theotherendoftheSpringRod(58)into
the upper holes.
Please note that this step must
be done with eye protection (safety
glasses) and gloves as the spring
rod requires some force to install.
After installation the spring rod will
be slightly bent.
a. AttachHamperPullRope(50)tothe
middleofRearTube(53).
b. UsingthehardwareinPanelF,
assembleone3/8”LockNut(47)on
each end of the Hamper Stop Rod
(54).TightentheLockNut(47)untilthe
HamperStopRod(54)isushwiththe
topoftheLockNut(47).
Note: Hold the Hamper Stop Rod
(54) with Pliers while tightening the
Lock Nuts (47). Upper and Lower
Side Tubes should be trapped
between the Hex Nut (46) and Lock
Nut (47) on the Hamper Stop Rod
(54) but still loose enough to pivot
freely. If the tubes do not pivot
freely, loosen the Hex Nut (46).
Step 8.
50
53
“J” Channel
a) Locate and align the holes in the upper Rear
Tube (53) with the side tubes (56). Locate
and align the holes in the lower Rear Tube
(53) with the Lower Tube (52).
b) Stand in the bottom of the hopper. Insert the
end of the Spring Rod (58) into the lower holes
aligned in step a. Pull up on the upper Rear
Tube (53) and insert the other end of the
Spring Rod (58) into the upper holes.
Please note that this step must be done with
eye protection (safety glasses) and gloves as
the spring rod requires some force to install.
After installation the spring rod will be slightly
bent.
a) Attach Hamper Pull Rope (50) to the middle of Rear Tube (53).
b) Using the hardware in Panel F, assemble one 3/8” Lock Nut (47) on each end of
the Hamper Stop Rod (54). Tighten the Lock Nut (47) until the Hamper Stop Rod (54)
is flush with the top of the Lock Nut (47).
Note: Hold the Hamper Stop Rod (54) with Pliers while tightening the Lock Nuts (47).
Upper and Lower Side Tubes should be trapped between the Hex Nut (46) and Lock
Nut (47) on the Hamper Stop Rod (54) but still loose enough to pivot freely. If the tubes
do not pivot freely, loosen the Hex Nut (46).
47
47
58
53
56
52
56
54
“J” Channel
50
9
5/16" Nylon Lock Nut
Qty. 2
51
5/16" Flat Washer
Qty. 4
47
3/8" Hex Lock Nut
Qty. 2
Step 9.
Step 8.
50
53
“J” Channel
a) Locate and align the holes in the upper Rear
Tube (53) with the side tubes (56). Locate
and align the holes in the lower Rear Tube
(53) with the Lower Tube (52).
b) Stand in the bottom of the hopper. Insert the
end of the Spring Rod (58) into the lower holes
aligned in step a. Pull up on the upper Rear
Tube (53) and insert the other end of the
Spring Rod (58) into the upper holes.
Please note that this step must be done with
eye protection (safety glasses) and gloves as
the spring rod requires some force to install.
After installation the spring rod will be slightly
bent.
a) Attach Hamper Pull Rope (50) to the middle of Rear Tube (53).
b) Using the hardware in Panel F, assemble one 3/8” Lock Nut (47) on each end of
the Hamper Stop Rod (54). Tighten the Lock Nut (47) until the Hamper Stop Rod (54)
is flush with the top of the Lock Nut (47).
Note: Hold the Hamper Stop Rod (54) with Pliers while tightening the Lock Nuts (47).
Upper and Lower Side Tubes should be trapped between the Hex Nut (46) and Lock
Nut (47) on the Hamper Stop Rod (54) but still loose enough to pivot freely. If the tubes
do not pivot freely, loosen the Hex Nut (46).
47
47
58
53
56
52
56
54
“J” Channel
50
9
5/16" Nylon Lock Nut
Qty. 2
51
5/16" Flat Washer
Qty. 4
47
3/8" Hex Lock Nut
Qty. 2
Step 9.
9
5/16”NylonLockNut
Qty.2
47
3/8”HexLockNut
Qty.2
51
5/16”FlatWasher
Qty.4
