Brinly STS-42BHDK - Page 13

1018189 Rev. C
13
================================================================================================

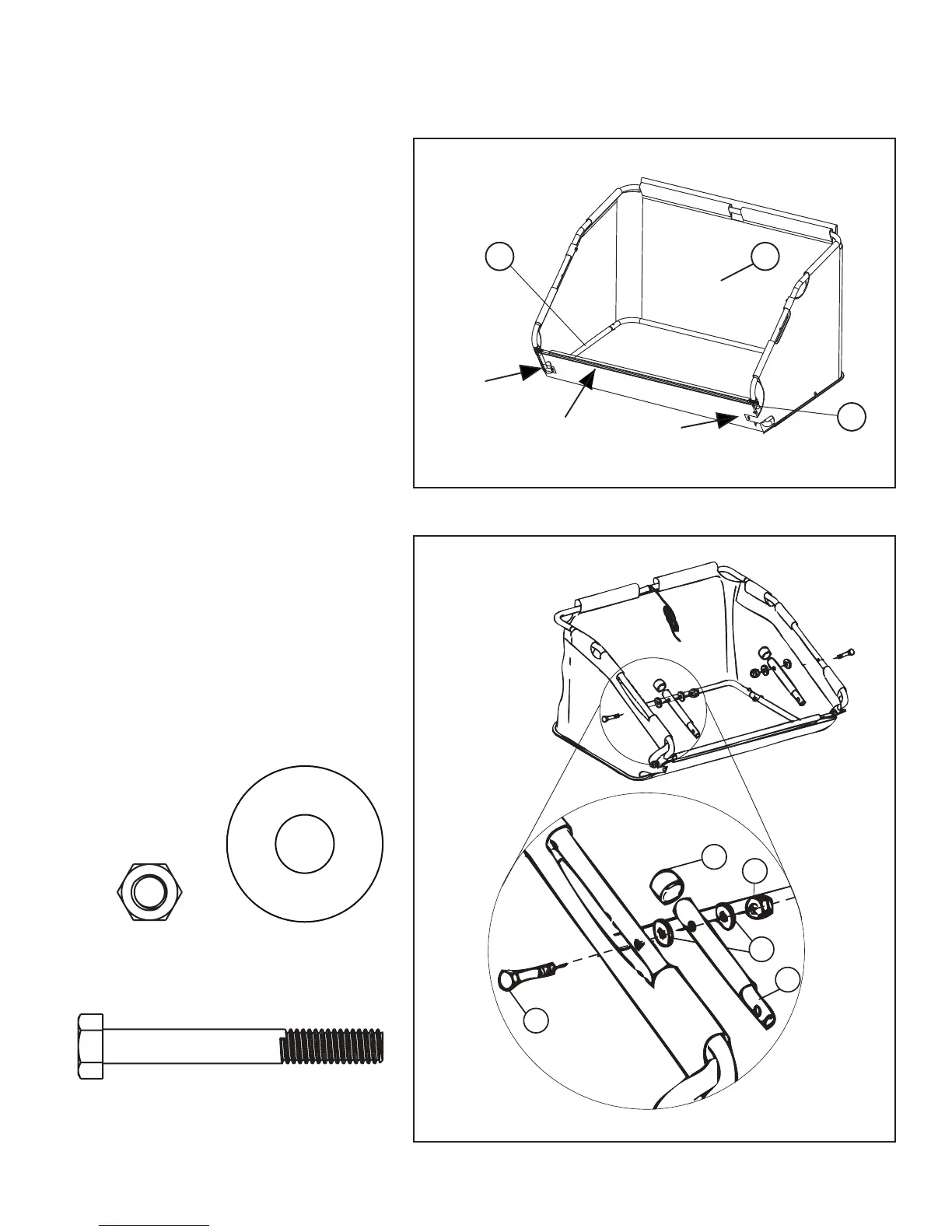

ASSEMBLY
STEP 10
-------------------------------
STEP 11
-------------------------------
a.PulluponbottomofHamper(55)from
“J”Channelandhook”J”Channelonto
HamperStopRod(54).
b. SnapsideapstoHamper(55)bottom
as shown.
Note: Flap should be on the
outside of Lower Side Tubes (52)
after assembly.
a. AttachHamperMountTube(57)with
HexBolts(45),Washers(51),andLock
Nuts(9)asshown.Donotovertighten.
HamperMountTube(57)mustbefree
to pivot.
b, AttachVinylCap(33)toHamperMount
Tube(57)asshown.
a) Attach Hamper Mount Tube (57) with Hex Bolts (45),
Washers (51), and Lock Nuts (9) as shown. Do not
overtighten. Hamper Mount Tube (57) must be free
to pivot.
b) Attach Vinyl Cap (33) to Hamper Mount Tube
(57) as shown.
45
5/16" x 2-1/2", Hex Bolt
Qty. 2
Step 11.
33
57
51
45
9
a) Pull up on bottom of Hamper (55) from “J” Channel
and hook ”J” Channel onto Hamper Stop Rod (54).
b) Snap side flaps to Hamper (55) bottom as shown.
Note: Flap should be on the outside of Lower Side
Tubes (52) after assembly.
Hook
Snap
Snap
55
54
52
Step 10.
9
5/16" Nylon Lock Nut
Qty. 2
51
5/16" Flat Washer
Qty. 4
a) Attach Hamper Mount Tube (57) with Hex Bolts (45),
Washers (51), and Lock Nuts (9) as shown. Do not
overtighten. Hamper Mount Tube (57) must be free
to pivot.
b) Attach Vinyl Cap (33) to Hamper Mount Tube
(57) as shown.
45
5/16" x 2-1/2", Hex Bolt
Qty. 2
Step 11.
33
57
51
45
9
a) Pull up on bottom of Hamper (55) from “J” Channel
and hook ”J” Channel onto Hamper Stop Rod (54).
b) Snap side flaps to Hamper (55) bottom as shown.
Note: Flap should be on the outside of Lower Side
Tubes (52) after assembly.
Hook
Snap
Snap
55
54
52
Step 10.
9
5/16" Nylon Lock Nut
Qty. 2
51
5/16" Flat Washer
Qty. 4
9
5/16”NylonLockNut
Qty.2
51
5/16”FlatWasher
Qty.4
45
5/16”x2-1/2”HexBolt
Qty.2
