Brinly STS-42BHDK - ATTACHING CLEVIS

1018189 Rev. C
9
================================================================================================
ASSEMBLY
STEP 4
---------------------------------------------------------------------------------
ATTACHING CLEVIS
AttachtheHitchClevisAssembly(1)tothe
TowTubes(2),asshown.
a) InstallHexBolts(63)throughTowTubes
(2)andHitchClevisAssembly(1),as
shown.
b) InstallLockNuts(9)toHexBolts.
ATTACHING CLEVIS
63
9
2
42
41

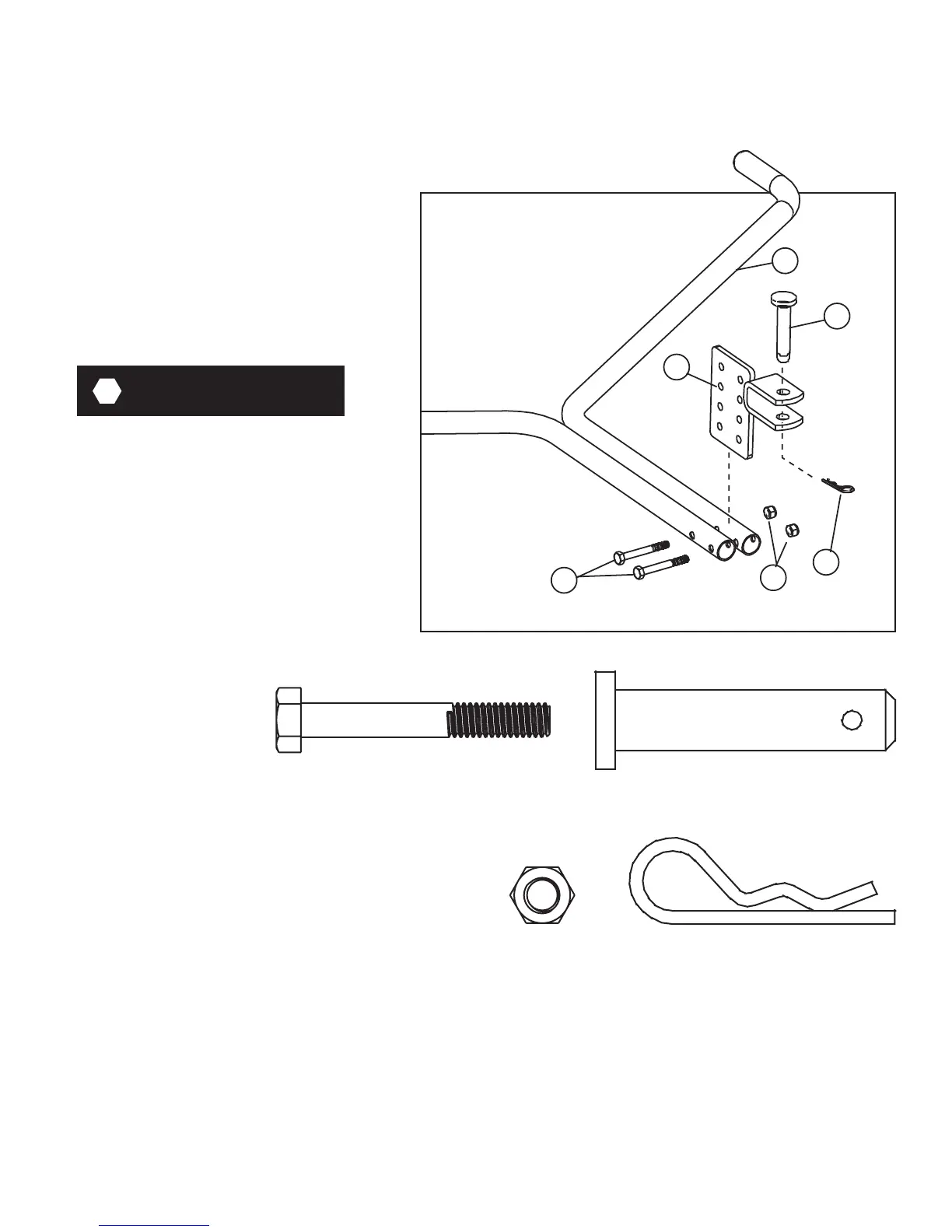

Attach the Hitch Clevis
Assembly (1) to the Tow Tubes
(2), as shown.
a) Install Hex Bolts (63)
through Tow Tubes (2) and
Hitch Clevis Assembly (1),
as shown.
b) Install Lock Nuts (9) to
Hex Bolts. Do not tighten
fasteners at this time.
1
63
5/16" x 2-1/4", Hex Bolt
Qty. 2
42
Hairpin Cotter, Large
Qty. 1
9
5/16" Nylon Lock Nut
Qty. 2
41
Hitch Pin, 1/2" x 2-1/2"
Qty. 1
Step 4.
!
DO NOT TIGHTEN
FASTENERS AT THIS TIME.
9
5/16”NylonLockNut
Qty.4
42
HairpinCotter,Large
Qty. 1
41
HitchPin,1/2”x2-1/2”
Qty. 1
63
5/16”x2-1/4”,HexBolt
Qty.2
