Brinly STS-42BHDK - Assembly

1018189 Rev. C
7
================================================================================================
ASSEMBLY
STEP 1
---------------------------------------------------------------------------------
Step 1.
9
5/16" Nylon Lock Nut
Qty. 4
9
62
5/16" x 1-1/2", Carriage Bolt
Qty. 4
62
14
35
31

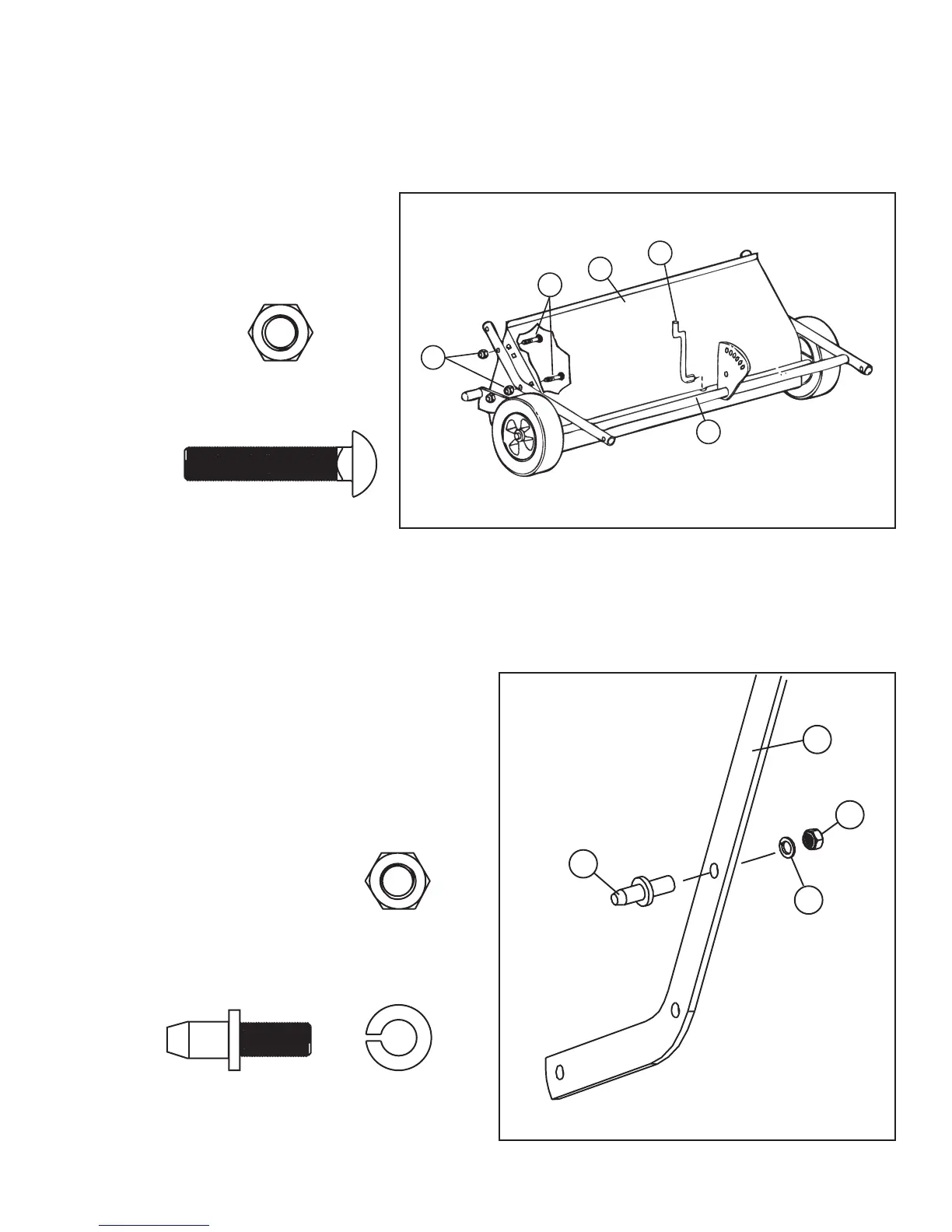

a) Attach Upper Frame Assembly (35) to
Brush Housing Assembly (31).
b) Assemble Lift Link (14) as shown.
Step 2.
44
39
40
3
a) Preassemble the Lock Pin (44)
to the Lift Handle (3).
39
5/16" Hex Nut
Qty. 1
44
Lock Pin
Qty. 1
40
5/16" Lock Washer
Qty. 1
a. Attachupperframeassembly(35)to
brushhousingassembly(31).
b. Assembleliftlink(14)asshown.
Step 1.
9
5/16" Nylon Lock Nut
Qty. 4
9
62
5/16" x 1-1/2", Carriage Bolt
Qty. 4
62
14
35
31
a) Attach Upper Frame Assembly (35) to
Brush Housing Assembly (31).
b) Assemble Lift Link (14) as shown.
Step 2.
44
39
40
3
a) Preassemble the Lock Pin (44)
to the Lift Handle (3).
39
5/16" Hex Nut
Qty. 1
44
Lock Pin
Qty. 1
40
5/16" Lock Washer
Qty. 1
STEP 2
---------------------------------------------------------------------------------
a. Preassemblethe
lockpin(44)tothe
lifthandle(3).
62
5/16”x1-1/2”
Carriage Bolt
Qty.4
9
5/16”NylonLockNut
Qty.4
39
5/16”HexNut
Qty. 1
44
LockPin
Qty. 1
40
5/16”LockWasher
Qty. 1
