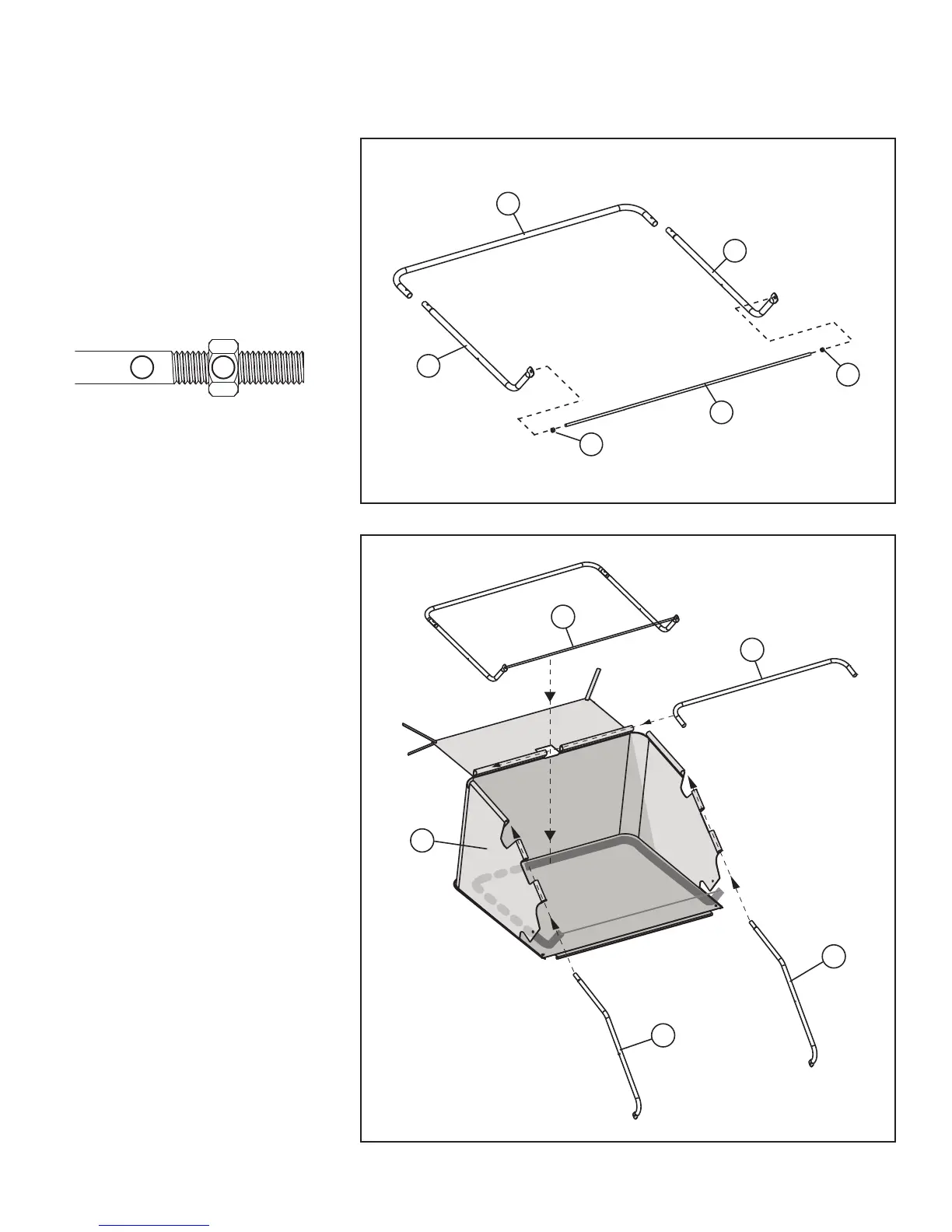

Step 6.
46
53
52
52
54
46
a) Lower the assembly in Step 6
into the bottom of hamper (55).
b) Assemble the Rear Tube (53)
with the holes down as shown.
Slide the Rear Tube (53)
through holes in hamper flaps.
c) Assemble the Upper Hamper
Side Tubes (56) through holes in
hamper flaps into the Rear Tube
(53) and onto the Hamper Stop
Rod (54).
53
56
55
56
54
a) Assemble Rear Tube (53) with
holes up to Lower Tube (52).
b) Using the hardware in Panel E,
assemble one 3/8” Hex Nut (46)
on each end of the Hamper Stop
Rod (54) until it is approximately
in the center of the threads.
Assemble each end of the
Hamper Stop Rod (54) through
the holes in the Lower Side
Tubes (52).
54 46
Step 7.
================================================================================================
ASSEMBLY
STEP 6
-------------------------
STEP 7
-------------------------
Step 6.
46
53
52
52
54
46
a) Lower the assembly in Step 6
into the bottom of hamper (55).
b) Assemble the Rear Tube (53)
with the holes down as shown.
Slide the Rear Tube (53)
through holes in hamper flaps.
c) Assemble the Upper Hamper
Side Tubes (56) through holes in
hamper flaps into the Rear Tube
(53) and onto the Hamper Stop
Rod (54).
53
56
55
56
54
a) Assemble Rear Tube (53) with
holes up to Lower Tube (52).
b) Using the hardware in Panel E,
assemble one 3/8” Hex Nut (46)
on each end of the Hamper Stop
Rod (54) until it is approximately
in the center of the threads.
Assemble each end of the
Hamper Stop Rod (54) through
the holes in the Lower Side
Tubes (52).
54 46
Step 7.
Step 6.
46
53
52
52
54
46
a) Lower the assembly in Step 6
into the bottom of hamper (55).
b) Assemble the Rear Tube (53)
with the holes down as shown.
Slide the Rear Tube (53)
through holes in hamper flaps.
c) Assemble the Upper Hamper
Side Tubes (56) through holes in
hamper flaps into the Rear Tube
(53) and onto the Hamper Stop
Rod (54).
53
56
55
56
54
a) Assemble Rear Tube (53) with
holes up to Lower Tube (52).
b) Using the hardware in Panel E,
assemble one 3/8” Hex Nut (46)
on each end of the Hamper Stop
Rod (54) until it is approximately
in the center of the threads.
Assemble each end of the
Hamper Stop Rod (54) through
the holes in the Lower Side
Tubes (52).
54 46
Step 7.
a.AssembleRearTube(53)withholes
uptoLowerTube(52).
b.UsingthehardwareinPanelE,
assembleone3/8”HexNut(46)on
eachendoftheHamperStopRod(54)
until it is approximately in the center of
the threads.
a.LowertheassemblyinStep6intothe
bottomofhamper(55).
b. AssembletheRearTube(53)with
the holes down as shown. Slide the
RearTube(53)throughholesin
hamperaps.
c. Assemble the Upper Hamper Side
Tubes(56)throughholesinhamper
apsintotheRearTube(53)andonto
theHamperStopRod(54).
Assemble each end of the Hamper Stop
Rod(54)throughtheholesintheLower
SideTubes(52).
