LYNX
TM
System Instructions
3. 2. 1.
4. 5. 6.
9. 8. 7.

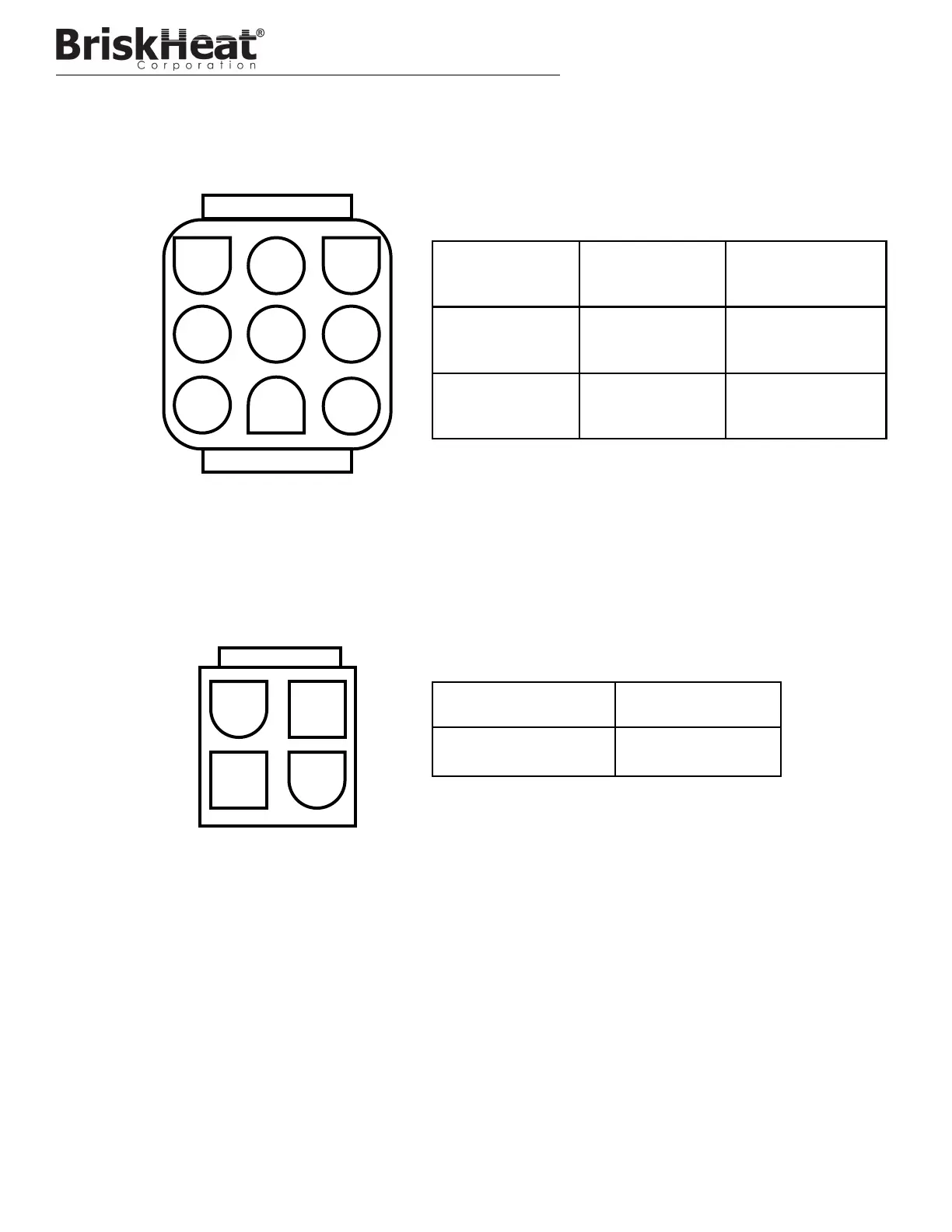

LYNX MODULE POWER INPUT CONNECTOR DIAGRAM
FOUND ON ALL LYNX JACKETS, STAND-ALONE DOCKING STATIONS (P/N: LYNX-DOC1-XX), AND EXTENSION
CABLES.
1. PIN: L1
Contact: 350705-1
2. PIN: EARTH
GROUND
Contact: 350669-1
3. PIN: L2
Contact: 350705-1
4. NOT USED 5. PIN: DIGITAL
GROUND
Contact: 350706-1
6. NOT USED
7. PIN: RS-485A
Contact: 350706-1
8. PIN: RS-485B
Contact: 350706-1
7. PIN: ENUMERATION
Contact: 350706-1
TOP
BOTTOM
3. 4.
2. 1.
TOP
3. PIN: RS-485A
Contact: 39-00-0039
4. PIN: RS-485B
Contact: 39-00-0039
1. PIN: DIGITAL GROUND
Contact: 39-00-0039
2. NOT USED
COMMUNICATION HARNESS CONNECTOR DIAGRAM
FOUND ON LYNX OI COMMUNICATION HARNESSES (P/N: LYNX-HN-XXX).
CONNECTOR P/N: TE MATE-N-LOK
P/N: 1-480706-9
CONNECTOR P/N: MOLEX MINI-FIT JP
P/N: 39012040
