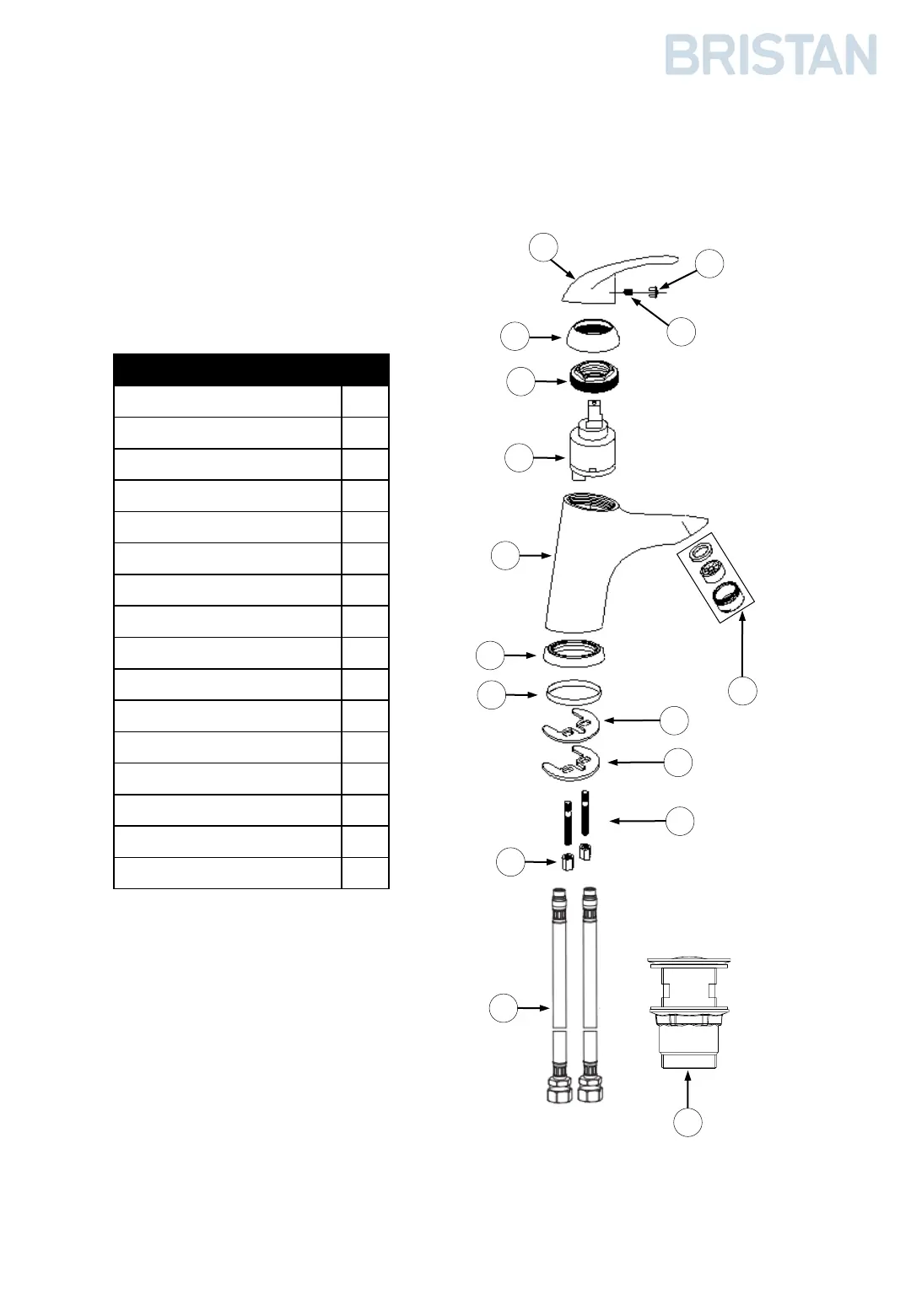

Parts contents list
1. Handle x 1
2. Indice Cap x 1
3. Grub Screw x 1
4. Shroud x 1
5. Retaining Nut x 1
6. Cartridge x 1
7. Mixer Body x 1
8. Plinth x 1
9. Anti Splash x 1
10. Washer x 1
11. ‘C’ Shaped Rubber Washer x 1
12. ‘C’ Shaped Metal Washer x 1
13. Threaded Rods x 2
14. Fixing Nuts x 2
15. Inlet Connection Pipes* x 2
16. Clicker Waste** x 1
* Copper inlet connection pipes supplied with J MBAS C
Flexible inlet connection pipes supplied with all other mixers
** Clicker waste not included with J BASNW C
