OPERATION
2 Outlet Diverter
This has 2 main positions, Outlet V open, and D open There is a 3rd outlet combining outlet V
and D but at a reduced flow.
3 Outlet Diverter
This has 3 main positions, Outlet V open, Top Outlet D Open and Bottom Outlet D Open.
There is also a 4th outlet option, which is outlet V with a reduced flow.

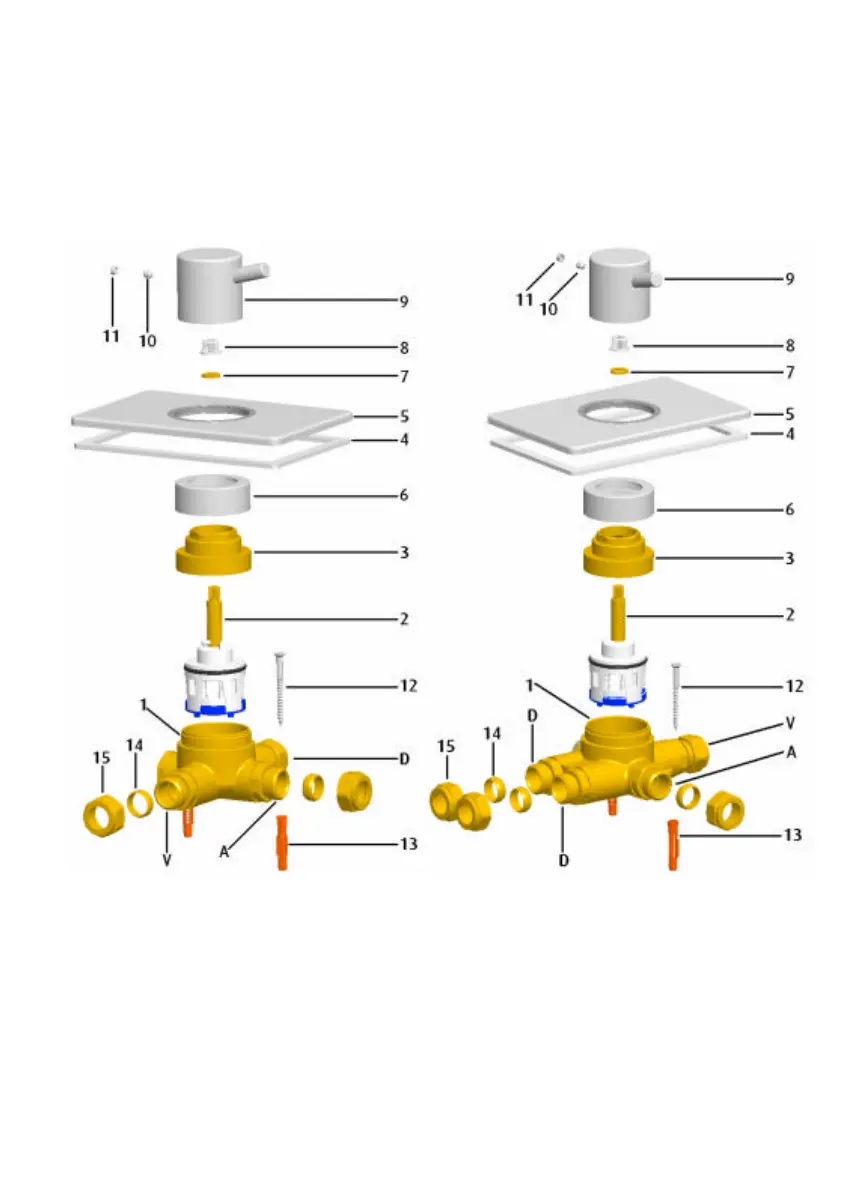

2 Outlet Diverter
3 Outlet Diverter
MAINTENANCE
If the fitting begins to drip:
1.
Remove handle (9) by prising out the cap (11) and loosening grub screw (10).
Remove the concealing plate (5) and the shroud (6).
2.
Unscrew the retaining nut (3) and carefully pull the cartridge (2) out of the diverter
body.
3. Check cartridge seals and ceramic discs for damage and debris.
4. Re-assemble and replace the concealing, shroud (6), pate (5) and handle (9) and test.
5. Contact our help line if problem persists.
