Brivis ICE DONSC15Z7 User Manual

15
Brivis Networker
INDOOR UNIT ELECTRIC BOX
NG-2
G W R
Electronic Control Module
C Y
TSTAT
TW1 TW2
ZONE /
ADD-ON
ZONE A
ZONE B
M
Fn
A1
A2

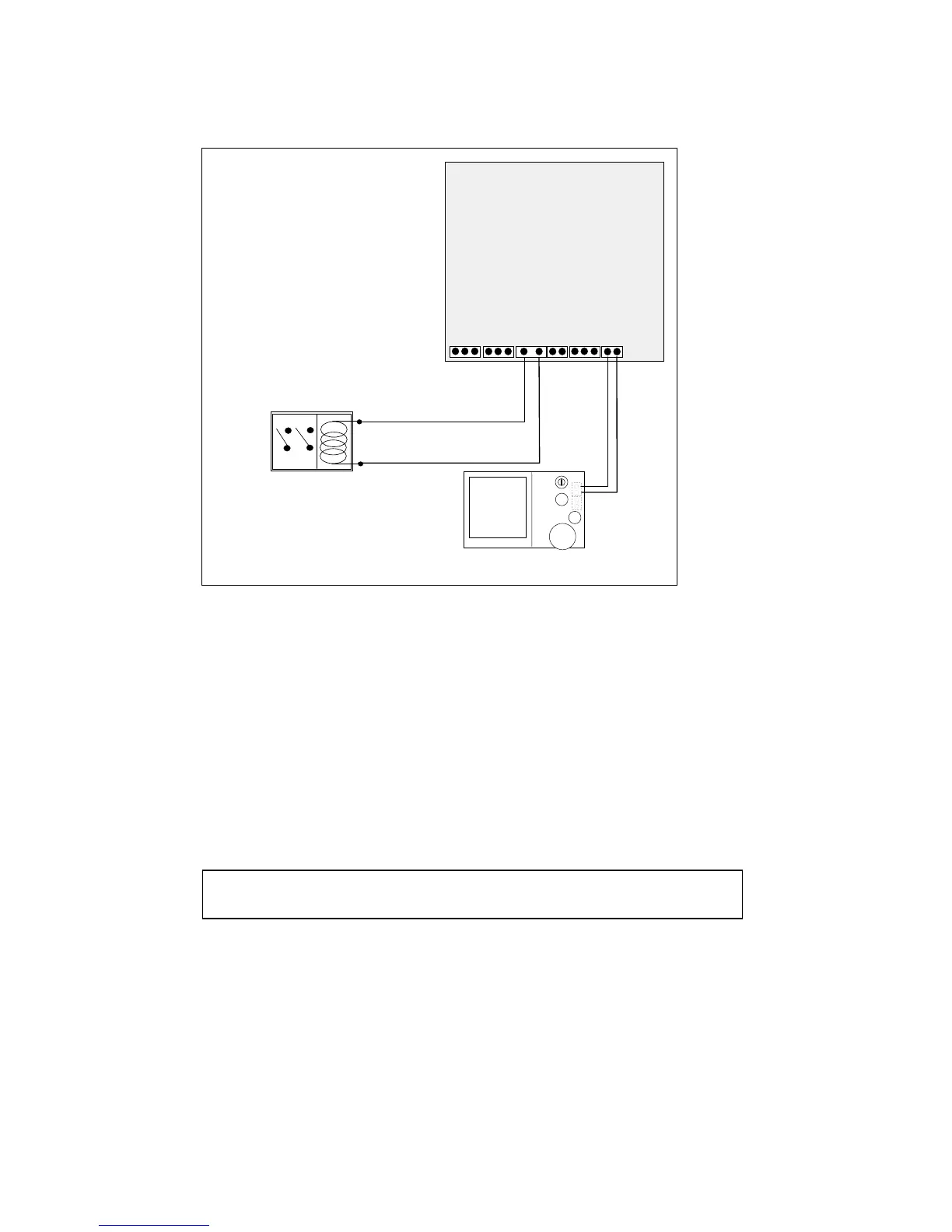

Fig. 12 – Wiring Circuit for Brivis StarPro HX/MX Series Heaters with ICE
Using Brivis Networker
StarPro model heaters can be configured for zoning and/or Add-On Refrigerative Air Conditioning. For
more information regarding connection to a StarPro unit please refer to the associated heater installer’s
manual.
Your zoning requirements may require a 'Brivis Network 516 module' (Part No. B023178), please
refer to the associated heater installer’s manual
Note: For ICE connection to a Brivis SP4, SP5 or SP6 StarPro heater, a
‘Brivis Network 516 module’ (Part No. B023178) must be fitted.
