Broadcast Electronics 3000 Series - Recorder-Reproducer Remote Control; Power Connections

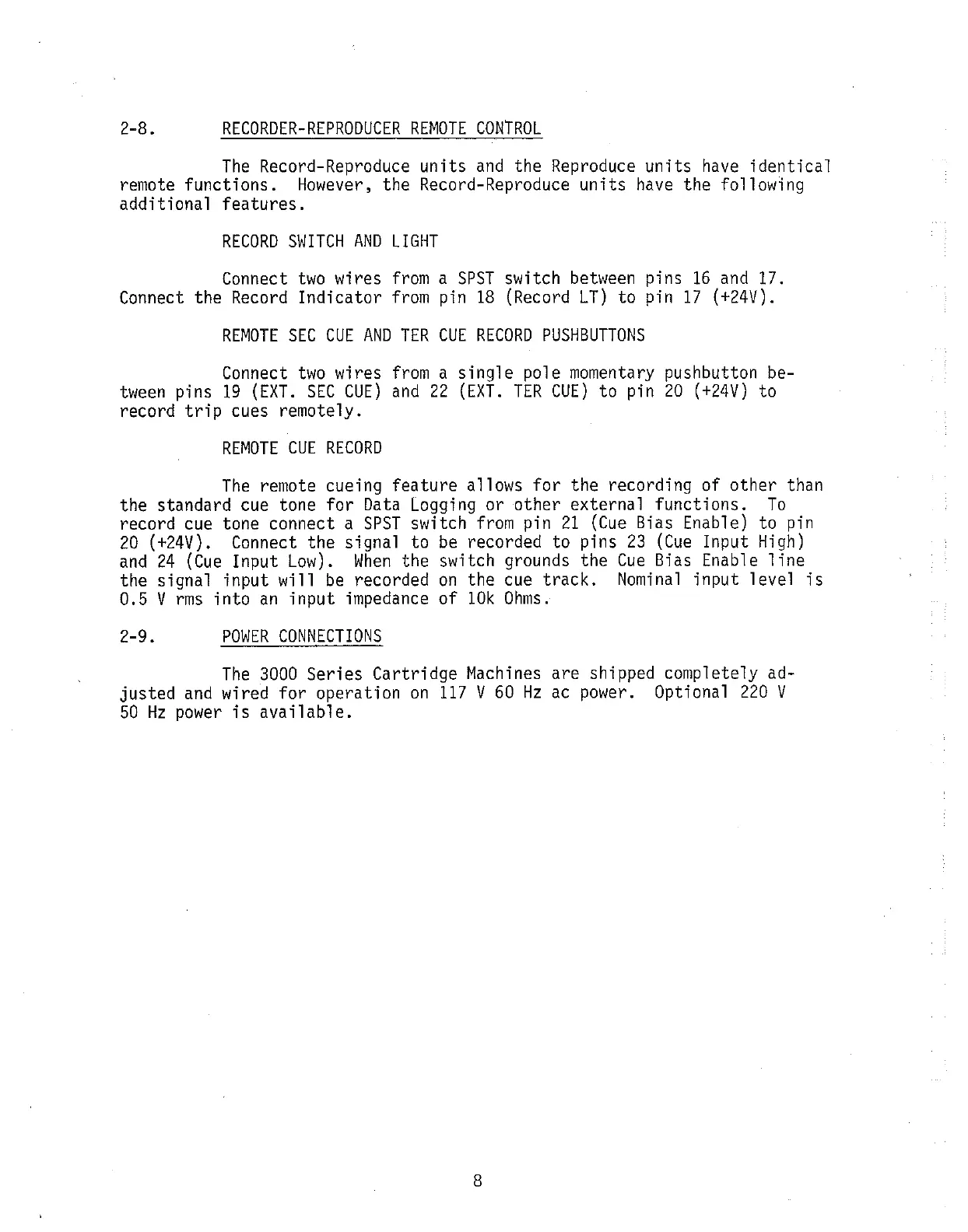

2-8. RECORDER-REPRODUCER REMOTE CONTROL
The Record-Reproduce units and the Reproduce units have identical
remote functions. However, the Record-Reproduce units have the following
additional
features.
RECORD SWITCH AND LIGHT
Connect two wires from a SPST switch between pins 16 and 17.
Connect the Record Indicator from pin 18 (Record LT) to pin 17 (+24V).
REMOTE SEC CUE AND TER CUE RECORD PUSHBUTTONS
Connect two wires from a single pole momentary pushbutton be-
tween pins 19 (EXT. SEC CUE) and 22 (EXT. TER CUE) to pin 20 (+24V) to
record
trip cues remotely.
REMOTE CUE RECORD
The remote cueing feature allows for the recording of other than
the standard cue tone
for Data logging or other external functions. To
record cue tone connect a SPST switch from pin 21 (Cue Bias Enable) to pin
20 (+24V). Connect the signal to be recorded to pins 23 (Cue Input High)
and 24 (Cue Input Low). When the switch grounds the Cue Bias Enable line
the signal input will be recorded on the cue track. Nominal input level is
0.5 V rms into an input impedance of 10k Ohms.
2-9. POWER CONNECTIONS
The 3000 Series Cartridge Machines are shipped completely ad-
justed and wired for operation on 117 V 60 Hz ac power. Optional 220 V
50 Hz power is available.
8
