Broadcast Electronics 3000 Series - Operation

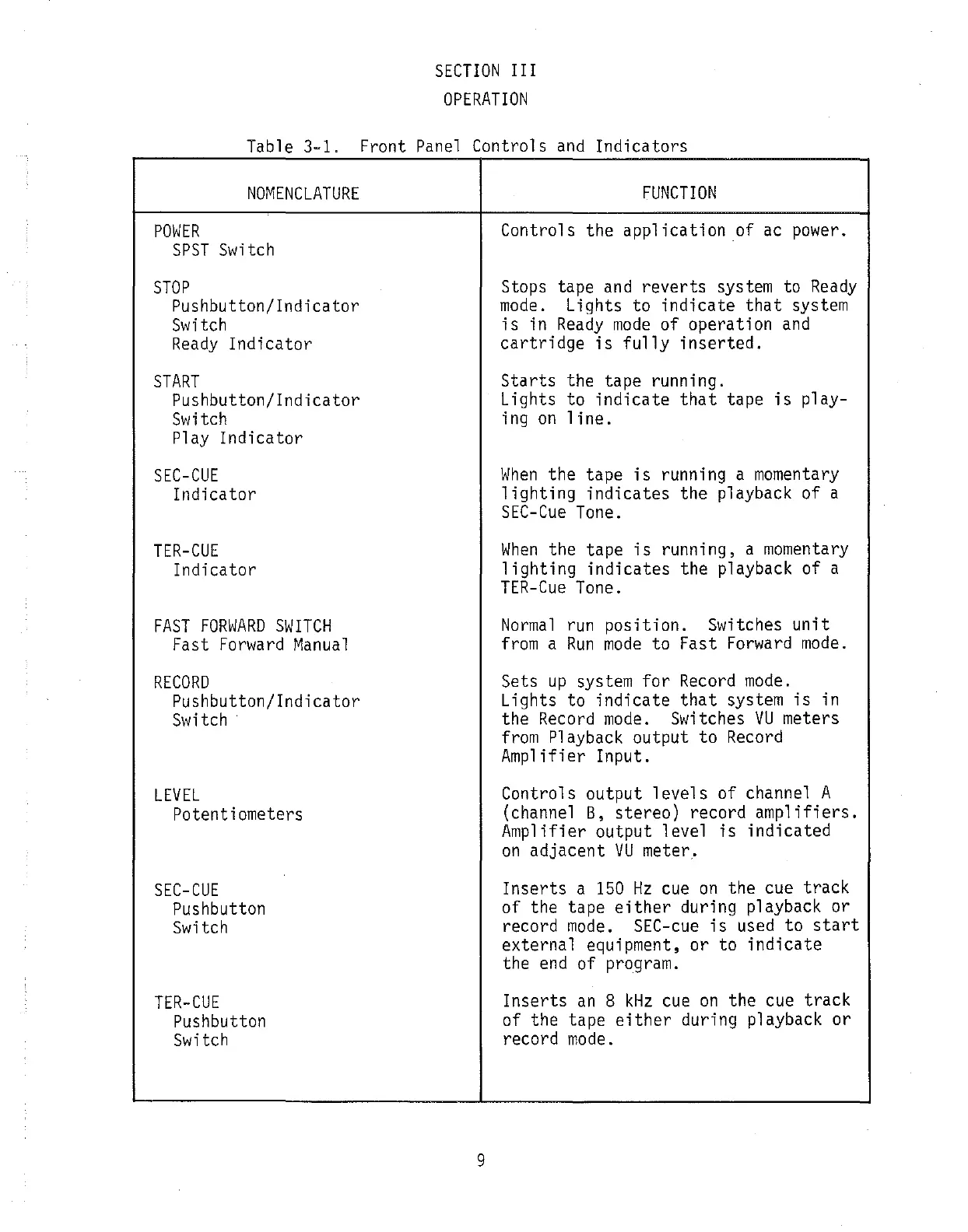

Table 3-1
NOMENCLATURE
POWER
SPST Switch
STOP
Pushbutton/Indicator
Switch
Ready Indicator
START
Pushbutton/Indicator
Switch
Play Indicator
SEC-CUE
Indicator
TER-CUE
Indicator
FAST FORWARD SWITCH
Fast Forward Manual
RECORD
Pushbutton/Indicator
Switch
·
LEVEL
Potentiometers
SEC-CUE
Pushbutton
Switch
TER-CUE
Pushbutton
Switch
SECTION III
OPERATION
Front Panel Controls and Indicators
9
FUNCTION
Controls the application of ac power.
Stops tape and reverts system to Ready
mode. Lights to indicate that system
is in Ready mode of operation and
cartridge is fully inserted.
Starts the tape running.
Lights to
indicate that tape is play-
ing
on line.
When the tape is running a momentary
lighting indicates the playback of a
SEC-Cue Tone.
When the tape is running, a momentary
lighting indicates the playback of a
TER-Cue Tone.
Normal run position. Switches unit
from a Run mode to Fast Forward mode.
Sets up system for Record mode.
Lights to indicate that system is in
the
Record mode. Switches VU meters
from Playback output to Record
Amplifier Input.
Controls output levels of channel A
(channel
B, stereo) record amplifiers.
Amplifier output level is indicated
on adjacent VU meter,
Inserts a 150 Hz cue on the cue track
of the tape either during playback or
record
mode. SEC-cue is used to start
external equipment, or to indicate
the end of program.
Inserts an 8 kHz cue on the cue track
of the tape either during playback or
record
mode.
