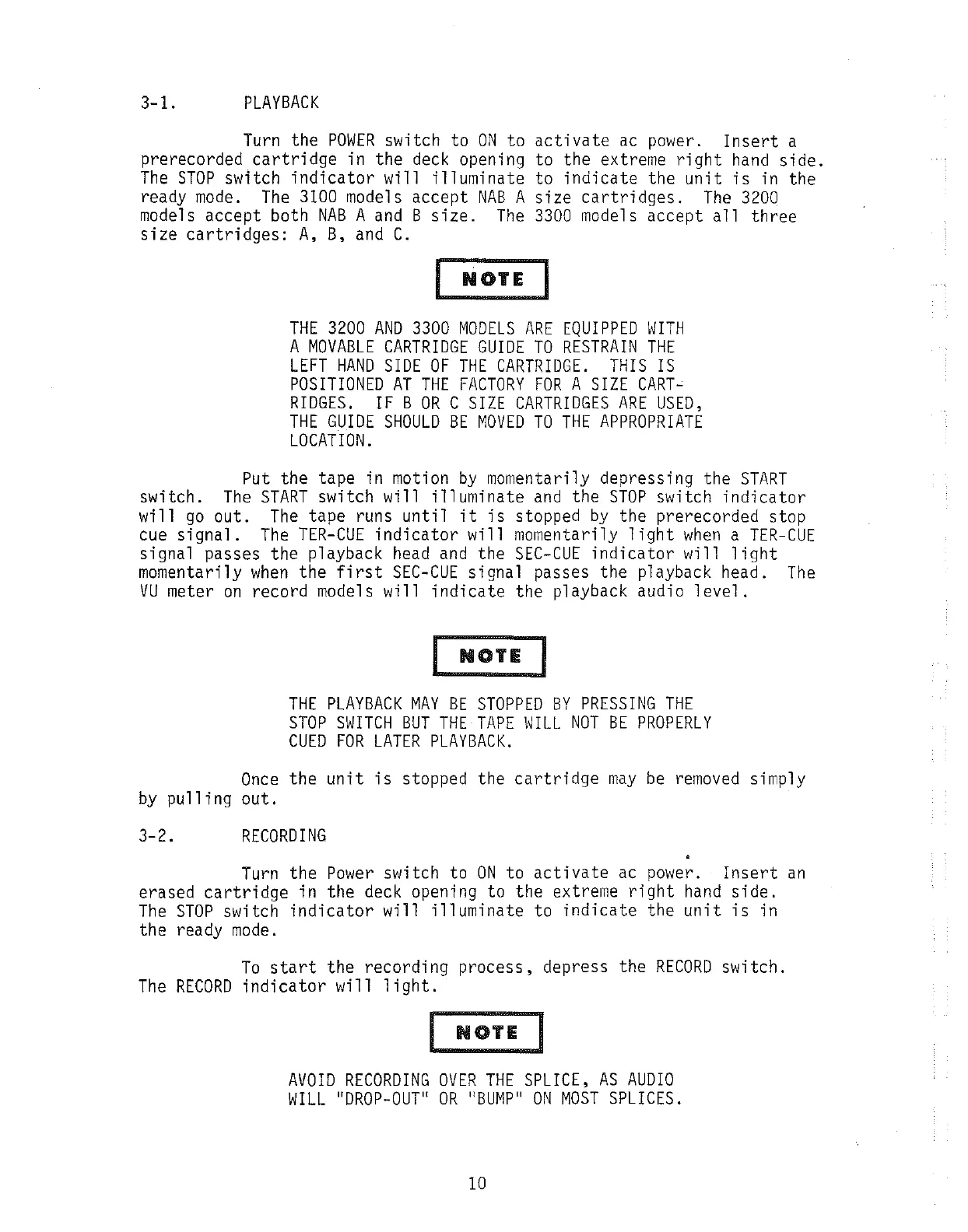

3-1. PLAYBACK
Turn the POWER switch to ON to activate ac power. Insert a
prerecorded
cartridge in the deck opening to the extreme right hand side.
The STOP switch indicator will illuminate to indicate the unit is in the
ready
mode. The 3100 models accept NAB A size cartridges. The 3200
models accept both NAB A and B size. The 3300 models accept all three
size cartridges: A, B, and C.
I NIOTIE
THE 3200 AND 3300 MODELS ARE EQUIPPED WITH
A MOVABLE CARTRIDGE GUIDE TO RESTRAIN THE
LEFT HAND SIDE OF THE CARTRIDGE. THIS IS
POSITIONED AT THE FACTORY FOR A SIZE CART-
RIDGES. IF B OR C SIZE CARTRIDGES ARE USED,
THE GUIDE SHOULD BE MOVED TO THE APPROPRIATE
LOCATION.
Put the tape in motion by momentarily depressing the START
switch. The START switch will illuminate and the STOP switch indicator
will go out. The tape runs until it is stopped by the prerecorded stop
cue signal. The TER-CUE indicator will momentarily light when a TER-CUE
signal passes the playback head and the SEC-CUE indicator will light
momentarily when the first SEC-CUE signal passes the playback head. The
VU meter on record models will indicate the playback audio level.
I NIOU I
THE PLAYBACK MAY BE STOPPED BY PRESSING THE
STOP SWITCH BUT THE TAPE WILL NOT BE PROPERLY
CUED FOR LATER PLAYBACK.
Once the unit is stopped the cartridge may be removed simply
by pulling out.
3-2.
RECORDING
Turn the Power switch to ON to activate ac power. Insert an
erased cartridge in the deck opening to the extreme right hand side.
The STOP switch indicator will illuminate to indicate the unit is in
the ready
mode.
To start the recording process, depress the RECORD switch.
The RECORD indicator will light.
NIOTIE I
AVOID RECORDING OVER THE SPLICE, AS AUDIO
WILL "DROP-OUT" OR "BUMP" ON MOST SPLICES.
10
