Broadcast Electronics 3000 Series - Page 39

w
-"'
MODEL
3100P
3200P
3300P
MONO, PLAYBACK ONLY
3100PS
3200PS
3300PS
STEREO, PLAYBACK ONLY
3200RP
3300RP
MONO, RECORD/PLAYBACK
3200RPS
3300RPS
STEREO, RECORD/PLAYBACK
OPTION PLAYBACK/LOGIC
POWER SUPPLY
RECORD AMP/BIAS
RECORD CONTROL/ I
INSTALLED
PCB PCB
PCB
CUE GENERATOR PCB
NONE 914-1501
914-1505
-
-
MANUAL FF
914-1511
914-1525 -
-
Q TRIPS ONLY
914-1521 914-1515 -
-
FF + Q TRIPS
914-1531 914-1535-1 -
-
NONE 914-1541 914-1505 -
-
MANUAL FF 914-1551
914-1525
-
-
Q TRIPS ONLY
914-1561 914-1515
-
-
FF + Q TRIPS
914-1571 914-1535-1
- -
NONE 914-1501 914-1505 914-1502 914-1503
MA!jUAL FF
914-1511 914-1525 914-1502 914-1503
Q TRIPS ONLY
914-1521 914-1515 914-1502 914-1513
FF + Q TRIPS
914-1531
914-1535-1
914-1502 914-1513
NONE 914-1541 914-1505 914-1512 914-1523
MANUAL FF 914-1551 914-1525 914-1512
914-1523
Q TRIPS ONLY 914-1561 914-1515 914-1512 914-1533
FF + Q TRIPS
914-1571
914-1535-1 914-1512 914-1533
J
NOTES: 1) FF =FAST FORWARD
2) Q TRIPS = QI 150 Hz AND Qll 8 kHZ AUXILIARY CUES

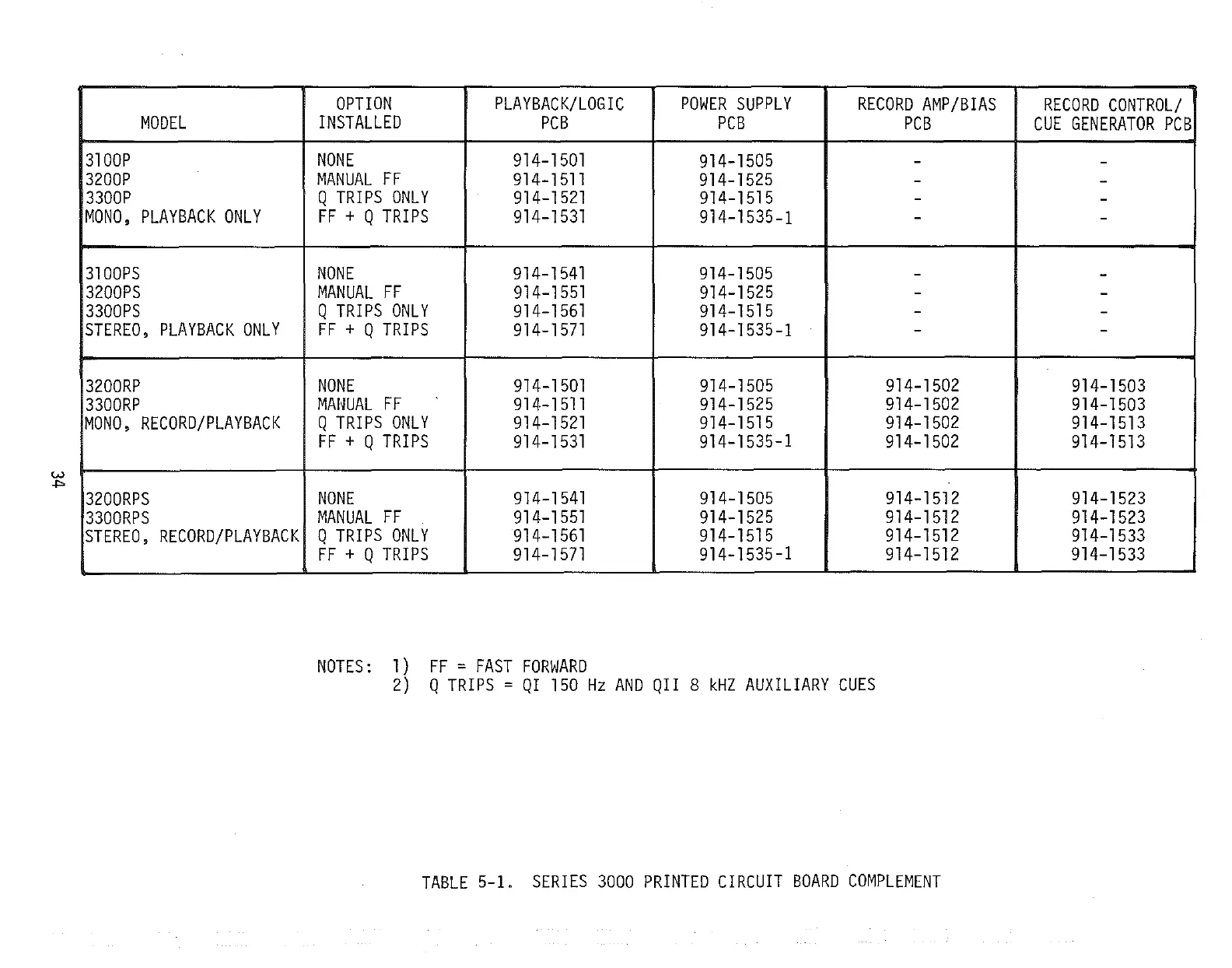

TABLE 5-1. SERIES 3000 PRINTED CIRCUIT BOARD COMPLEMENT
