Broadcast Electronics 3000 Series - Page 42

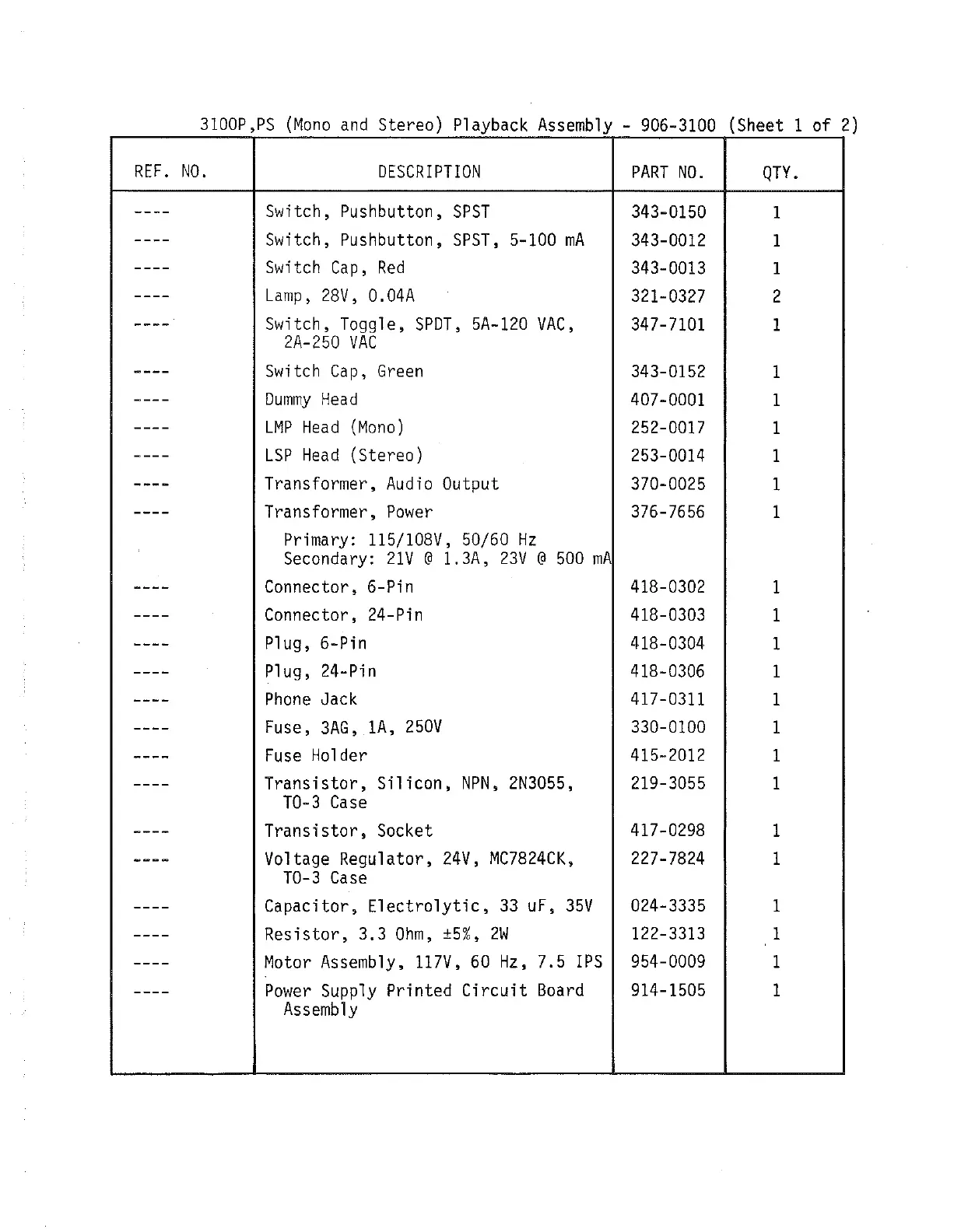

3100P,PS (Mono and Stereo) Playback Assembly- 906-3100 (Sheet 1 of 2)
REF. NO. DESCRIPTION
Switch, Pushbutton, SPST
Switch, Pushbutton, SPST, 5-100 mA
Switch Cap, Red
Lamp, 28V, 0.04A
Switch, Toggle, SPOT, 5A-120 VAC,
2A-250 VAC
Switch Cap, Green
Dummy Head
LMP Head (Mono)
LSP Head (Stereo)
Transformer,
Audio Output
Transformer, Power
Primary: 115/108V, 50/60Hz
Secondary: 21V@ 1.3A, 23V@ 500 mA
Connector, 6-Pin
Connector, 24-Pin
Plug, 6-Pin
Plug, 24-Pin
Phone Jack
Fuse,
3AG, 1A, 250V
Fuse Holder
Transistor, Silicon, NPN, 2N3055,
T0-3 Case
Transistor, Socket
Voltage Regulator,
24V, MC7824CK,
T0-3 Case
Capacitor, Electrolytic, 33 uF, 35V
Resistor, 3.3 Ohm, ±5%, 2W
Motor Assembly, 117V, 60Hz, 7.5 IPS
Power Supply Printed Circuit Board
Assembly
PART NO.
343-0150
343-0012
343-0013
321-0327
347-7101
343-0152
407-0001
252-0017
253-0014
370-0025
376-7656
418-0302
418-0303
418-0304
418-0306
417-0311
330-0100
415-2012
219-3055
417-0298
227-7824
024-3335
122-3313
954-0009
914-1505
QTY.
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
