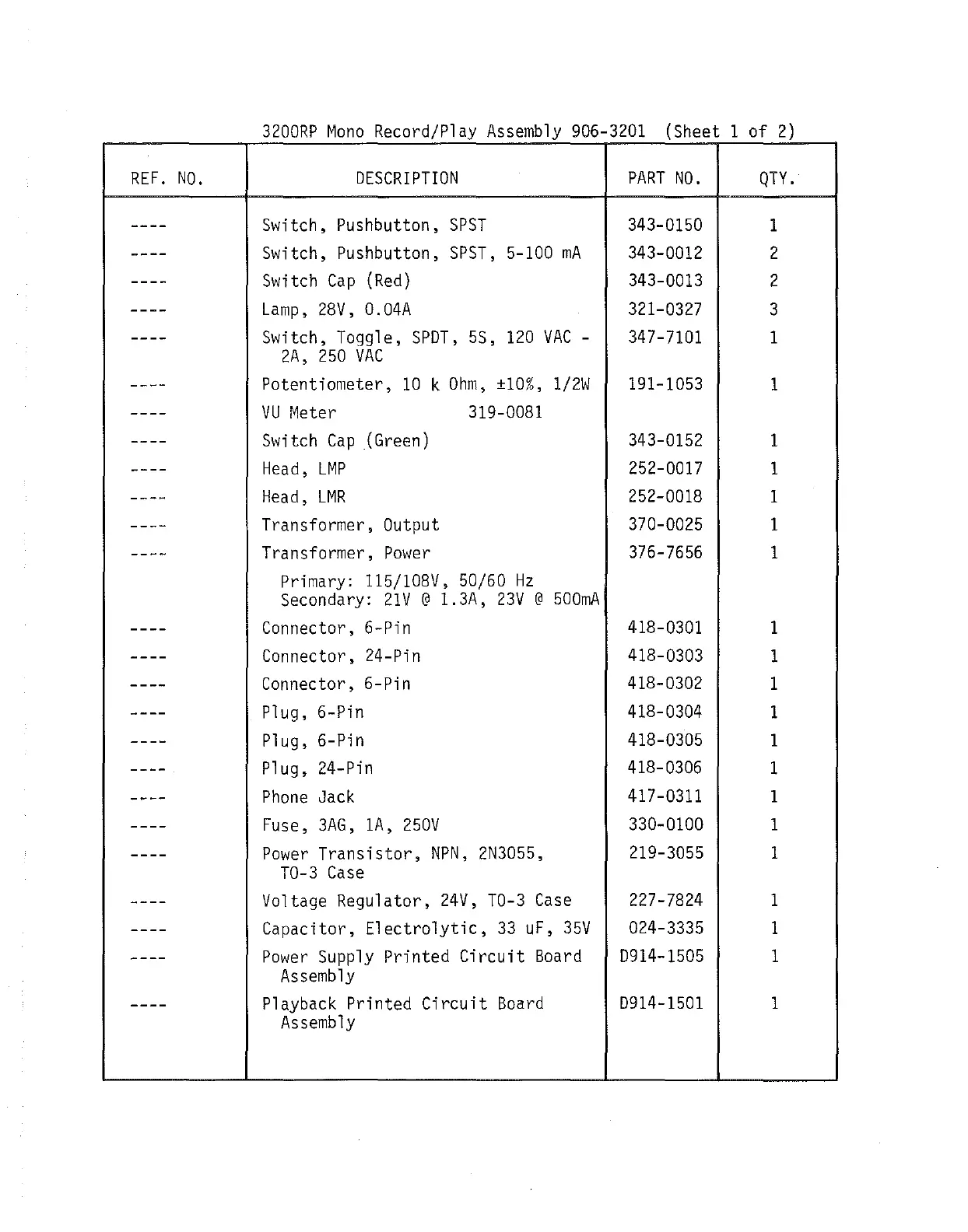

3200RP Mono Record/Play Assembly 906-3201 (Sheet 1 of 2)
DESCRIPTION
Switch, Pushbutton, SPST
Switch, Pushbutton, SPST, 5-100 mA
Switch Cap (Red)
Lamp, 28V, 0.04A
Switch, Toggle, SPOT, 55, 120 VAC-
2A, 250 VAC
Potentiometer, 10 k Ohm, ±10%, 1/2W
VU Meter 319-0081
Switch Cap (Green)
Head, LMP
Head, LMR
Transformer, Output
Transformer,
Power
Primary: 115/108V, 50/60Hz
Secondary:
21V@ 1.3A, 23V@ 500mA
PART NO.
343-0150
343-0012
343-0013
321-0327
347-7101
191-1053
343-0152
252-0017
252-0018
370-0025
376-7656
Connector,
6-Pin 418-0301
Connector,
24-Pin 418-0303
Connector,
6-Pin 418-0302
Plug, 6-Pin 418-0304
Plug, 6-Pin
418-0305
Plug, 24-Pin 418-0306
Phone Jack 417-0311
Fuse,
3AG, 1A, 250V 330-0100
Power Transistor, NPN, 2N3055, 219-3055
T0-3 Case
Voltage Regulator, 24V, T0-3 Case 227-7824
Capacitor,
Electrolytic, 33 uF, 35V 024-3335
Power Supply Printed Circuit Board 0914-1505
Assembly
Playback Printed Circuit Board 0914-1501
Assembly
QTY.
1
2
2
3
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
