Broadcast Electronics 3000 Series - Page 48

REF. NO.

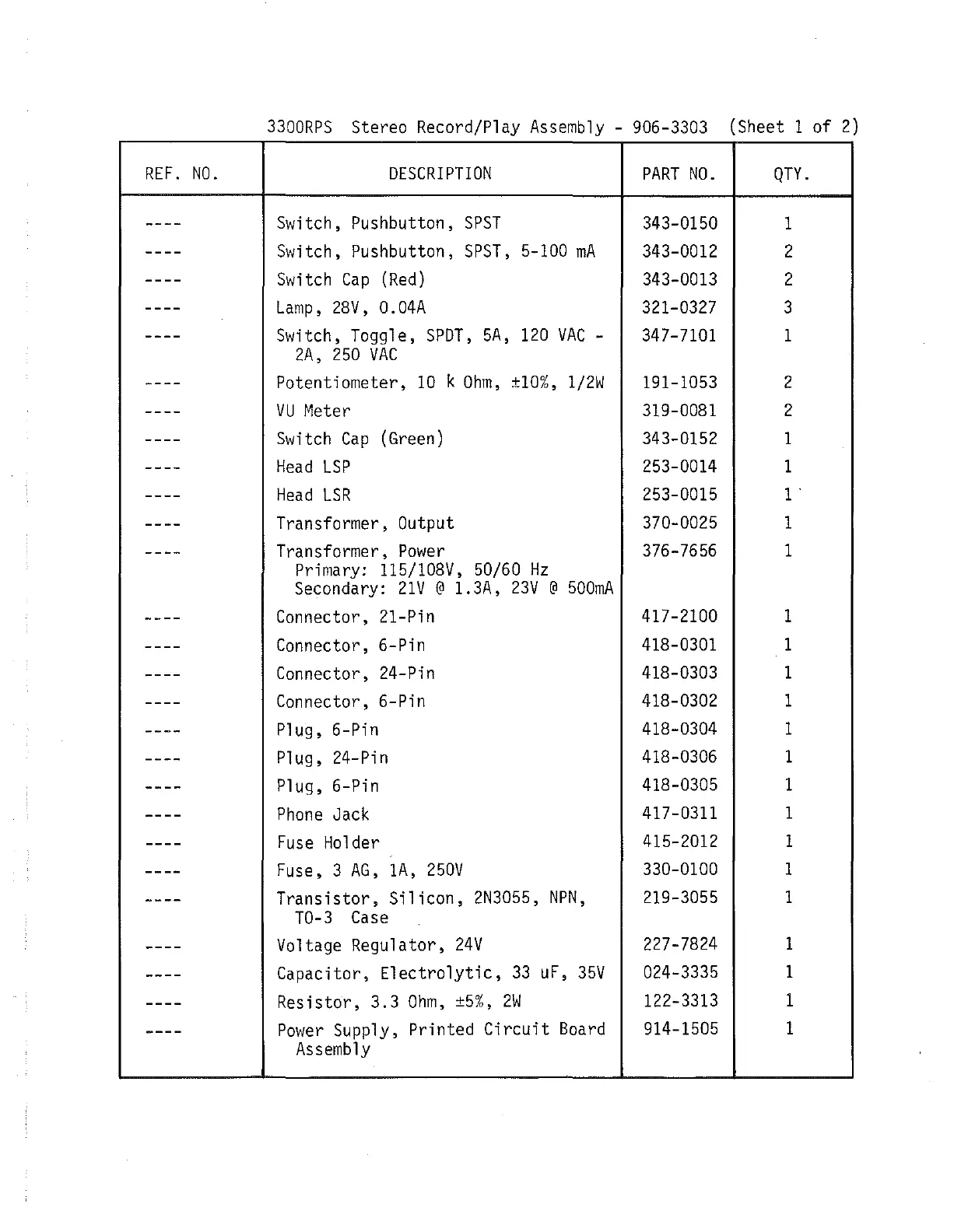

3300RPS Stereo Record/Play Assembly - 906-3303 (Sheet 1 of 2)
DESCRIPTION
Switch, Pushbutton, SPST
Switch, Pushbutton, SPST, 5-100 mA
Switch Cap (Red)
Lamp, 28V, 0.04A
Switch, Toggle, SPOT, 5A, 120 VAC-
2A, 250 VAC
Potentiometer, 10 k Ohm, ±10%, 1/2W
VU Meter
Switch
Cap (Green)
Head LSP
Head LSR
PART NO.
343-0150
343-0012
343-0013
321-0327
347-7101
191-1053
319-0081
343-0152
253-0014
253-0015
Transformer, Output 370-0025
Transformer, Power 376-7656
Primary: 115/108V, 50/60Hz
Secondary: 21V @ 1.3A, 23V @ 500mA
Connector, 21-Pin
Connector, 6-Pin
Connector, 24-Pin
Connector, 6-Pin
Plug, 6-Pin
Plug, 24-Pin
Plug, 6-Pin
Phone Jack
Fuse Holder
Fuse, 3
AG, 1A, 250V
Transistor, Silicon, 2N3055, NPN,
T0-3 Case
Voltage Regulator, 24V
Capacitor, Electrolytic, 33 uF, 35V
Resistor, 3.3 Ohm, ±5%, 2W
Power Supply, Printed Circuit Board
Assembly
417-2100
418-0301
418-0303
418-0302
418-0304
418-0306
418-0305
417-0311
415-2012
330-0100
219-3055
227-7824
024-3335
122-3313
914-1505
QTY.
1
2
2
3
1
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
