Broadcast Electronics 3000 Series - Page 58

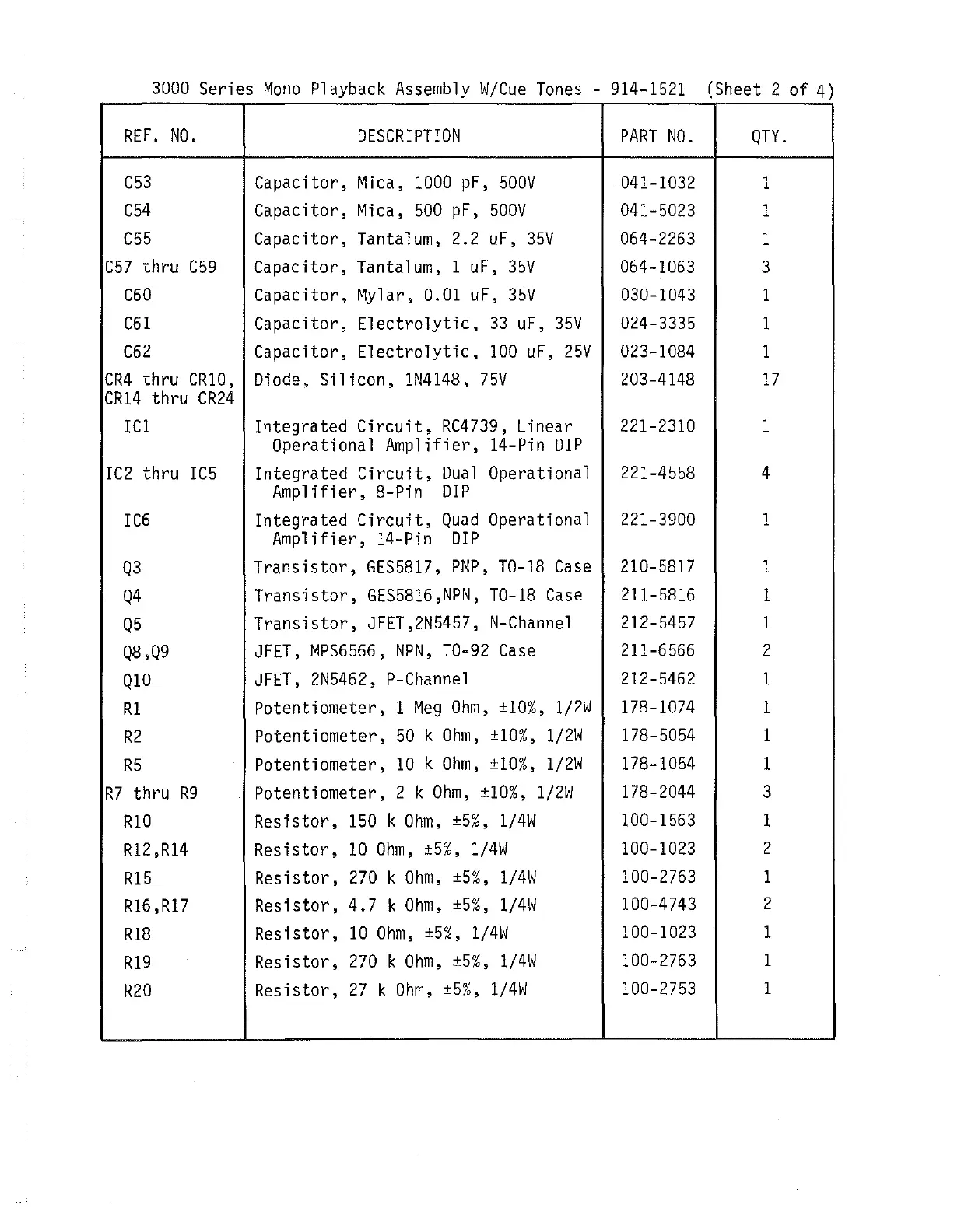

3000 Series Mono Playback Assembly W/Cue Tones - 914-1521 (Sheet 2 of 4)
REF. NO.
C53
C54
C55
C57 thru C59
C60
C61
C62
CR4 thru CRlO,
CR14 thru CR24
ICl
rc2 thru res
IC6
Q3
Q4
Q5
Q8,Q9
QlO
Rl
R2
RS
R7 thru R9
RIO
Rl2,Rl4
Rl5
Rl6,Rl7
Rl8
Rl9
R20
DESCRIPTION
Capacitor, Mica, 1000 pF, SOOV
Capacitor, Mica, 500 pF, SOOV
Capacitor, Tantalum, 2.2 uF, 35V
Capacitor, Tantalum, 1 uF, 35V
Capacitor, Mylar, 0.01 uF, 35V
Capacitor, Electrolytic, 33 uF, 35V
Capacitor, Electrolytic, 100 uF, 25V
Diode, Silicon, 1N4148, 75V
Integrated Circuit, RC4739, Linear
Operational Amplifier,
14-Pin DIP
Integrated Circuit, Dual Operational
Amplifier,
8-Pin DIP
Integrated Circuit, Quad Operational
Amplifier,
14-Pin DIP
Transistor, GES5817, PNP, T0-18 Case
Transistor, GES5816,NPN, T0-18 Case
Transistor, JFET,2N5457, N-Channel
JFET, MPS6566, NPN, T0-92 Case
JFET, 2N5462, P-Channel
Potentiometer, 1 Meg Ohm, ±10%, l/2W
Potentiometer, 50 k Ohm, ±10%, l/2W
Potentiometer, 10 k Ohm, ±10%, l/2W
Potentiometer, 2 k Ohm, ±10%, l/2W
Resistor, 150 k Ohm, ±5%, l/4W
Resistor, 10 Ohm, ±5%, l/4W
Resistor, 270 k Ohm, ±5%, l/4W
Resistor, 4.7 k Ohm, ±5%, l/4W
Resistor, 10 Ohm, ±5%, l/4W
Resistor, 270 k Ohm, ±5%, 1/4W
Resistor, 27 k Ohm, ±5%, l/4W
PART NO.
041-1032
041-5023
064-2263
064-1063
030-1043
024-3335
023-1084
203-4148
221-2310
221-4558
221-3900
210-5817
211-5816
212-5457
211-6566
212-5462
178-1074
178-5054
178-1054
178-2044
100-1563
100-1023
100-2763
100-4743
100-1023
100-2763
100-2753
QTY.
1
1
1
3
1
1
1
17
1
4
1
1
1
1
2
1
1
1
1
3
1
2
1
2
1
1
1
