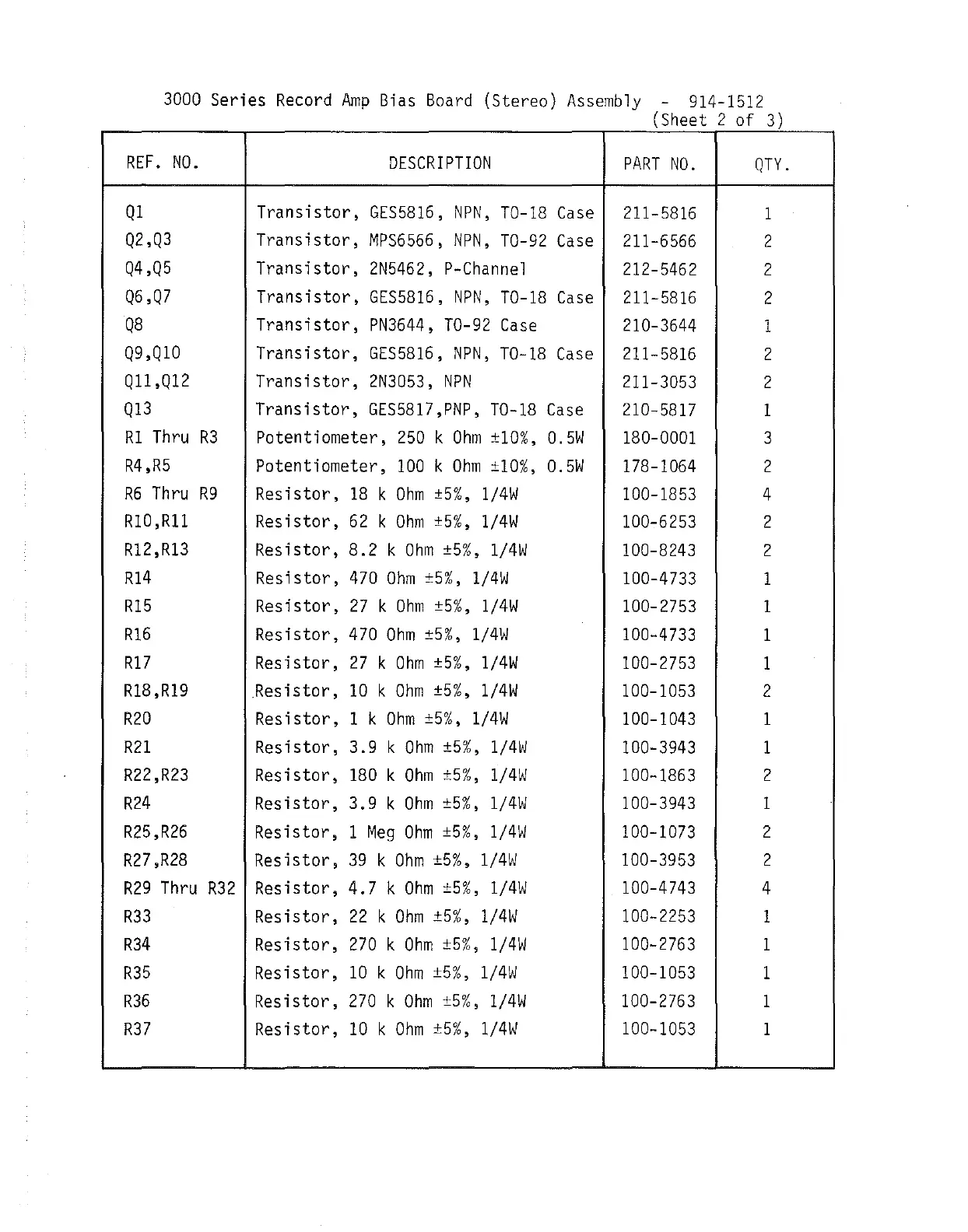

3000 Series Record Amp Bias Board (Stereo) Assembly - 914-1512
(Sheet 2
of 3)
REF. NO.
DESCRIPTION
PART NO.
QTY.
Q1 Transistor,
GES5816, NPN, T0-18
Case 211-5816
1
Q2,Q3 Transistor,
MPS6566, NPN, T0-92 Case
211-6566 2
Q4 ,Q5 Transistor,
2N5462, P-Channel
212-5462 2
Q6,Q7 Transistor,
GES5816, NPN, T0-18
Case 211-5816
2
Q8 Transistor,
PN3644, T0-92 Case
210-3644
1
Q9,Q10 Transistor,
GES5816, NPN, T0-18
Case
211-5816 2
Q11 ,Q12
Transistor, 2N3053, NPN
211-3053 2
Q13 Transistor, GES5817,PNP, T0-18
Case
210-5817 1
R1 Thru
R3 Potentiometer, 250 k Ohm ±10%, 0.5W
180-0001 3
R4 ,R5
Potentiometer, 100 k Ohm ±10%, 0.5W
178-1064 2
R6 Thru
R9 Resistor, 18 k Ohm ±5%, 1/4W
100-1853
4
R10 ,R11
Resistor, 62 k Ohm ±5%, 1/4W
100-6253 2
R12,R13 Resistor,
8.2 k Ohm ±5%, 1/4W
100-8243 2
R14 Resistor, 470 Ohm ±5%, 1/4W
100-4733
1
R15 Resistor, 27 k Ohm ±5%, 1/4W
100-2753 1
R16 Resistor, 470 Ohm ±5%, 1/4W 100-4733
1
R17 Resistor, 27 k Ohm ±5%, 1/4W
100-2753
1
R18,R19 Resistor, 10 k Ohm ±5%, 1/4W
100-1053 2
R20 Resistor, 1 k Ohm ±5%, 1/4W
100-1043 1
R21 Resistor,
3.9 k Ohm ±5%,
1/4W
100-3943 1
R22,R23
Resistor,
180 k Ohm ±5%,
1/4W 100-1863 2
R24 Resistor, 3.9 k Ohm ±5%, 1/4W 100-3943 1
R25,R26 Resistor, 1 Meg Ohm ±5%, 1/4W 100-1073 2
R27,R28 Resistor, 39 k Ohm ±5%, 1/4W 100-3953 2
R29 Thru
R32
Resistor, 4.7 k Ohm ±5%, 1/4W 100-4743
4
R33 Resistor,
22 k Ohm ±5%, 1/4W 100-2253
1
R34 Resistor,
270 k Ohm ±5%, 1/4W
100-2763 1
R35 Resistor, 10 k Ohm ±5%, 1/4W 100-1053
1
R36 Resistor,
270 k Ohm ±5%, 1/4W
100-2763 1
R37 Resistor,
10 k Ohm ±5%, 1/4W 100-1053
1
