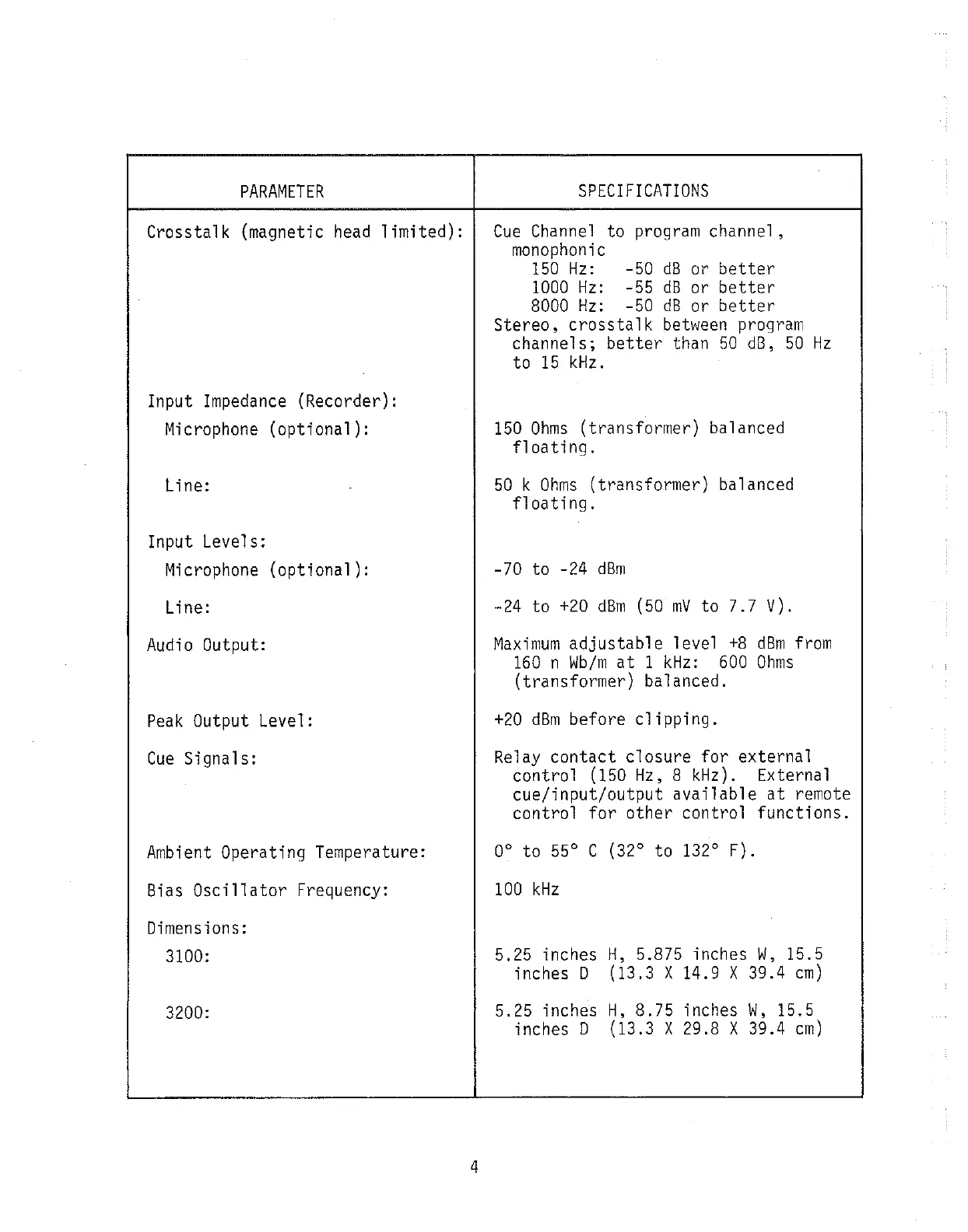

PARAMETER
Crosstalk (magnetic head limited):
Input Impedance (Recorder):
Microphone (optional):
Line:
Input Levels:
Microphone (optional):
Line:
Audio Output:
Peak Output Level:
Cue Signals:
Ambient Operating Temperature:
Bias
Oscillator Frequency:
Dimensions:
3100:
3200:
4
SPECIFICATIONS
Cue Channel to program channel,
monophonic
150 Hz: -50 dB or better
1000 Hz: -55 dB or better
8000 Hz: -50 dB or better
Stereo, crosstalk between program
channels; better than 50 dB, 50 Hz
to 15 kHz.
150 Ohms (transformer) balanced
floating.
50 k Ohms (transformer) balanced
floating.
-70 to -24 dBm
-24 to +20 dBm (50 mV to 7.7 V).
Maximum adjustable level +8 dBm from
160 n Wb/m at 1 kHz: 600 Ohms
(transformer) balanced.
+20 dBm before clipping.
Relay contact closure for external
contra 1
(150 Hz, 8 kHz). Extern a 1
cue/input/output available at remote
control
for other control functions.
0° to 55° C (32° to 132° F).
100 kHz
5.25 inches H, 5.875 inches W, 15.5
inches D (13.3 X 14.9 X 39.4
em)
5.25 inches H, 8.75 inches W, 15.5
inches D (13.3 X 29.8 X 39.4
em)
