Broadcast Electronics 3000 Series - Page 91

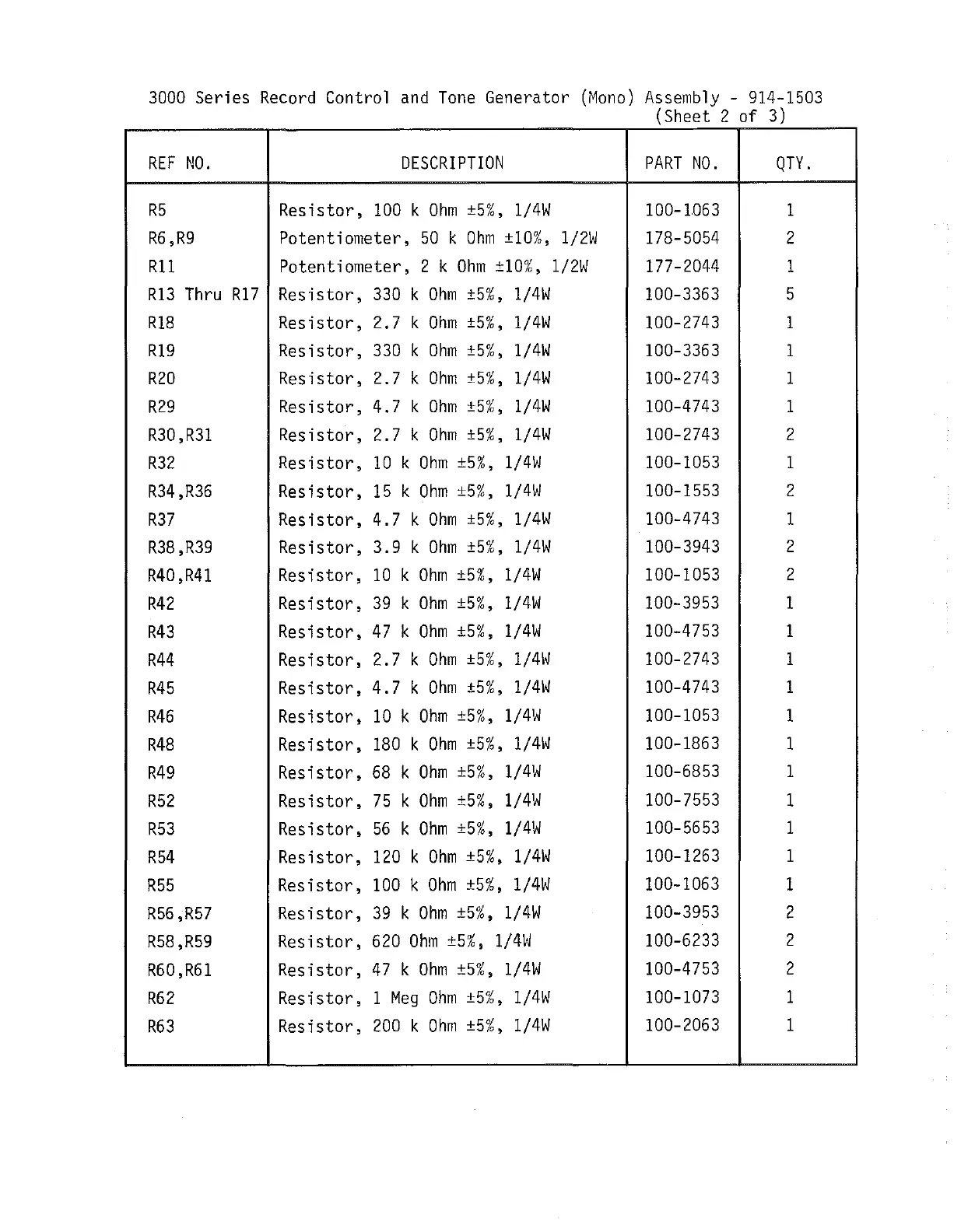

3000 Series Record Control and Tone Generator (Mono) Assembly - 914-1503
(Sheet 2 of 3)
REF NO. DESCRIPTION PART NO.
QTY.
R5 Resistor, 100 k Ohm ±5%, 1/4W 100-1063
1
R6 ,R9 Potentiometer, 50 k Ohm ±10%, 1/2W 178-5054 2
Rll
Potentiometer, 2 k
Ohm ±10%, 1/2W
177-2044 1
R13 Thru R17 Resistor,
330 k Ohm ±5%, 1/4W 100-3363 5
R18 Resistor, 2.7 k Ohm ±5%, 1/4W 100-2743 1
R19 Resistor,
330 k Ohm ±5%,
1/4W 100-3363 1
R20 Resistor,
2.7 k Ohm ±5%, 1/4W 100-2743 1
R29 Resistor, 4.7 k Ohm ±5%, 1/4W 100-4743 1
R30,R31
Resistor,
2.7 k Ohm ±5%, 1/4W 100-2743 2
R32
Resistor, 10 k Ohm ±5%, 1/4W 100-1053 1
R34 ,R36 Resistor,
15 k Ohm ±5%, 1/4W 100-1553 2
R37 Resistor,
4.7 k Ohm ±5%, 1/4W
100-4743
1
R38,R39 Resistor,
3.9 k Ohm ±5%, 1/4W 100-3943
2
R40 ,R41 Resistor,
10 k Ohm ±5%, 1/4W 100-1053 2
R42
Resistor,
39 k Ohm ±5%, 1/4W 100-3953
1
R43
Resistor,
47 k Ohm ±5%, 1/4W
100-4753
1
R44
Resistor,
2.7 k Ohm ±5%, 1/4W 100-2743 1
R45
Resistor,
4.7 k Ohm ±5%, 1/4W 100-4743 1
R46 Resistor,
10 k Ohm ±5%, 1/4W
100-1053
1
R48 Resistor,
180 k Ohm ±5%, 1/4W
100-1863
1
R49
Resistor, 68
k Ohm ±5%,
1/4W 100-6853 1
R52 Resistor,
75 k Ohm ±5%, 1/4W
100-7553
1
R53 Resistor,
56 k Ohm ±5%, 1/4W
100-5653 1
R54
Resistor,
120 k Ohm ±5%, 1/4W
100-1263 1
R55
Resistor,
100 k Ohm ±5%, 1/4W
100-1063
1
R56 ,R57
Resistor,
39 k Ohm ±5%, 1/4W
100-3953
2
R58,R59 Resistor,
620 Ohm ±5%, 1/4W 100-6233
2
R60,R61
Resistor,
47 k Ohm ±5%, 1/4W
100-4753 2
R62 Resistor,
1 Meg Ohm ±5%, 1/4W 100-1073 1
R63
Resistor,
200 k Ohm ±5%, 1/4W
100-2063 1
