MODEL B5936SS
Page 9

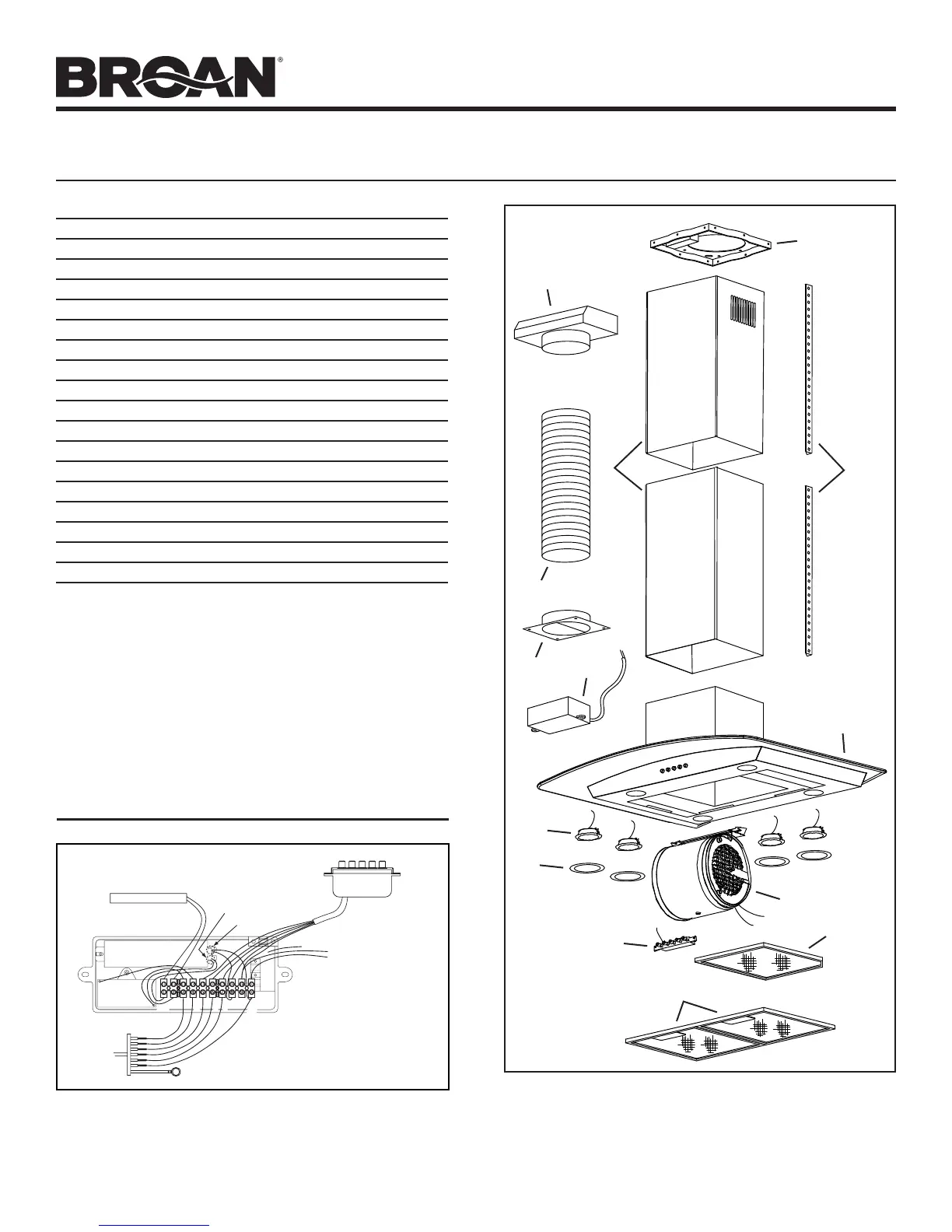

SERVICE PARTS
1
2
4
5
6
7
9
10
11
12
13
14
Replacement parts can be ordered on our website:
www.broan.com
KEY PART NO. DESCRIPTION QTY.
1 S99527129 Decorative Upper and Lower Flues 1
2 S99526974 Motor / Blower Assembly 1
3 S99526975 Light Socket Assembly 4
4 S99527010 Light Trim Ring / Lens Assembly 4
5 S99526976 Push Button Assembly 1
6 S97018029 Aluminum Grease Filters (pair) 2
7 S99527023 Non-Duct Recirculation Filter 1
8 S99527131 Curved Metal Plate with Rail 1
9 S99526983 Damper / Duct Connector 1
10 S99526984 6” Dia. Expandable Flexible Aluminum Duct 1
11 S99527021 Non-Duct Plenum Assembly 1
12 S99527130 Angle Mounting Bracket 8
13 S99527022 Ceiling Mounting Bracket w/ Outlet Box 1
14 S99527013 Plastic Cover 1
S99527011 Transformer (not shown) 1
S99527012 Capacitor (not shown) 1
S99527132 Parts Bag (not shown) 1
S99528459 Non-Duct Filter Clips (not shown) 1
Order service parts by Part No. - not by Key No.
8
WIRING DIAGRAM
TO MOTOR
HALOGEN
TRANSFORMER
CAPACITOR
PUSH BUTTON
B
R
N
B
L
K
BLK
BLK
R
W
120V
120V
12V
100W Y
B
R
N
W G
R
Y
B
L
K
B
L
U
O
BLK
W
R
BRN
INPUT
OUTPUT
WO R
stop low mid
high lamp
GRN
3
