USE AND CARE
Follow wiring instructions packed with range hood, and adhere to
all local and state codes, and the National Electrical Code.
_ ARNING: To reduce the risk of electric shock,
disconnect from power supply before servicing.
Page 4
To clean blower assembly: Remove access panel, unplug blower
from housing, remove blower mounting nuts, and carefully re-
move blower from housing. Use appropriate vacuum attachment
or a soft cloth and mild soap or detergent to clean blower dis-
charge area and wheel. DO NOT ALLOW WATER TO ENTER
MOTOR. Make sure blower assembly is completely dry before
reinstalling.
Motor is permanently lubricated. Do not oil or disassemble motor.

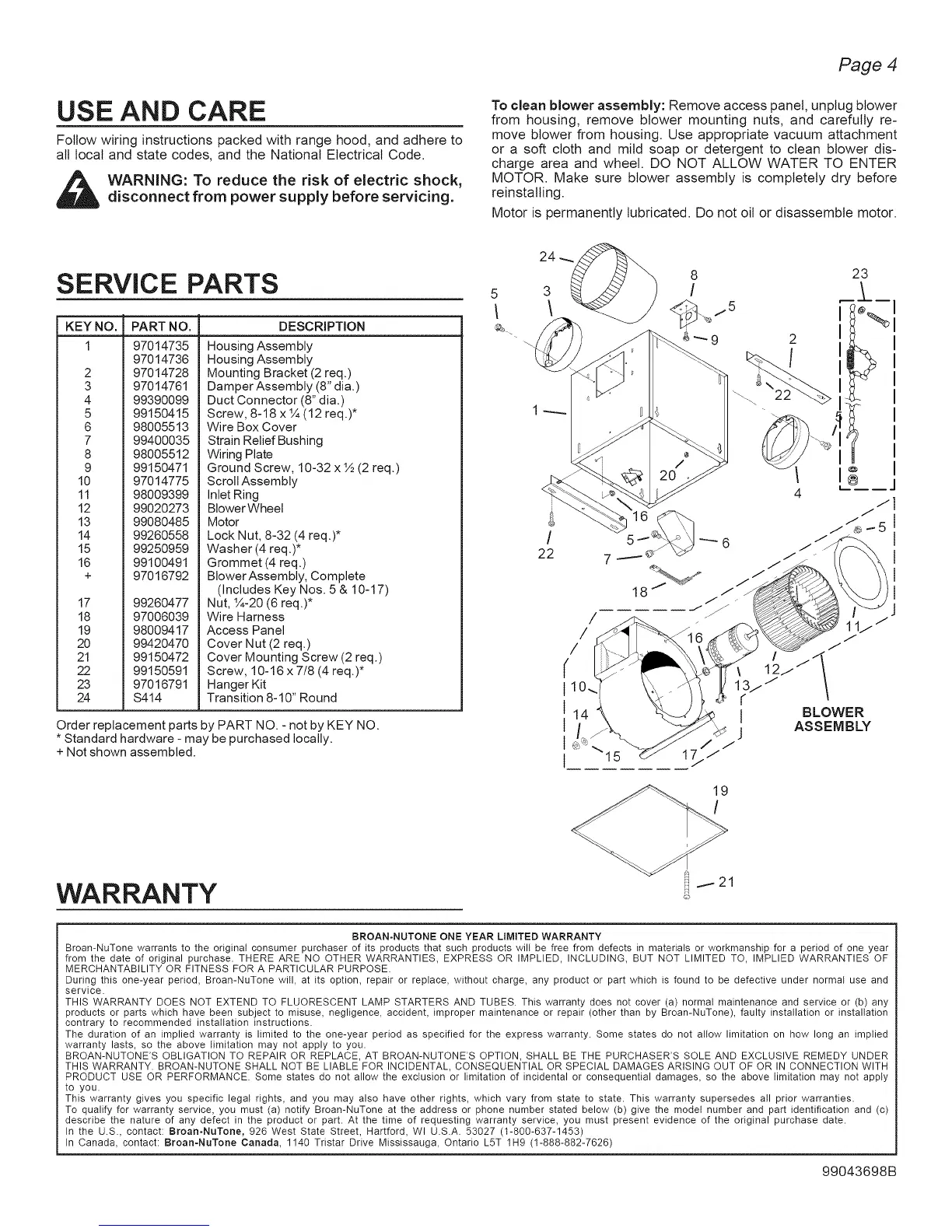

SERVICE PARTS
KEY NO. PART NO.
1 97014735
97014736
2 97014728
3 97014761
4 99390099
5 99150415
6 98005513
7 99400035
8 98005512
9 99150471
10 97014775
11 98009399
12 99020273
13 99080485
14 99260558
15 99250959
16 99100491
+ 97016792
17 99260477
18 97006039
19 98009417
20 99420470
21 99150472
22 99150591
23 97016791
24 $414
DESCRIPTION
Housing Assembly
Housing Assembly
Mounting Bracket (2 req.)
Damper Assembly (8" dia.)
Duct Connector (8" dia.)
Screw, 8-18 x 1¼(12 req.)*
Wire Box Cover
Strain Relief Bushing
Wiring Plate
Ground Screw, 10-32 x ½ (2 req.)
Scroll Assembly
Inlet Ring
Blower Wheel
Motor
Lock Nut, 8-32 (4 req.)*
Washer (4 req.)*
Grommet (4 req.)
Blower Assembly, Complete
(Includes Key Nos. 5 & 10-17)
Nut, 1¼-20 (6 req.)*
Wire Harness
Access Panel
Cover Nut (2 req.)
Cover Mounting Screw (2 req.)
Screw, 10-16 x 7/8 (4 req.)*
Hanger Kit
Transition 8-10" Round
Order replacement parts by PART NO. - not by KEY NO.
* Standard hardware - may be purchased locally.
+ Not shown assembled.
WARRANTY
24
3
\
22
4
23
%1
>
/
22
/
/
/
f
I10.
I
I
I
I
16
1//
/
/
I BLOWER
j ASSEMBLY
! ..--- 21
BROAN-NUTONE ONE YEAR LIMITED WARRANTY
Broan-NuTone warrants to the original consumer purchaser of its products that such products will be free from defects in materials or workmanship for a period of one year
from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use and
service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS AND TUBES. This warranty does not cover (a) normal maintenance and service or (b) any
products or parts which have been subject to misuse, negligence, accident, improper maintenance or repair (other than by Broan-NuTone), faulty installation or installation
contrary to recommended installation instructions.
The duration of an implied warranty is limited to the one-year period as specified for the express warranty. Some states do not allow limitation on how long an implied
warranty lasts, so the above limitation may not apply to you.
BROAN-NUTONE'S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE'S OPTION, SHALL BE THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY UNDER
THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH
PRODUCT USE OR PERFORMANCE. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply
to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This warranty supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone at the address or phone number stated below (b) give the model number and part identification and (c)
describe the nature of any defect in the product or part. At the time of requesting warranty service, you must present evidence of the original purchase date.
In the U.S., contact: Broan-NuTone, 926 West State Street, Hartford, WI U.S.A. 53027 (1-800-637-1453)
In Canada, contact: Broan-NuTone Canada, 1140 Tfistar Drive Mississauga, Ontario L5T 1H9 (1-888-882-7626)
