4 Brocade 6520 Hardware Reference Manual
53-1002705-01
Non-port side of the Brocade 6520
1
DRAFT: BROCADE CONFIDENTIAL

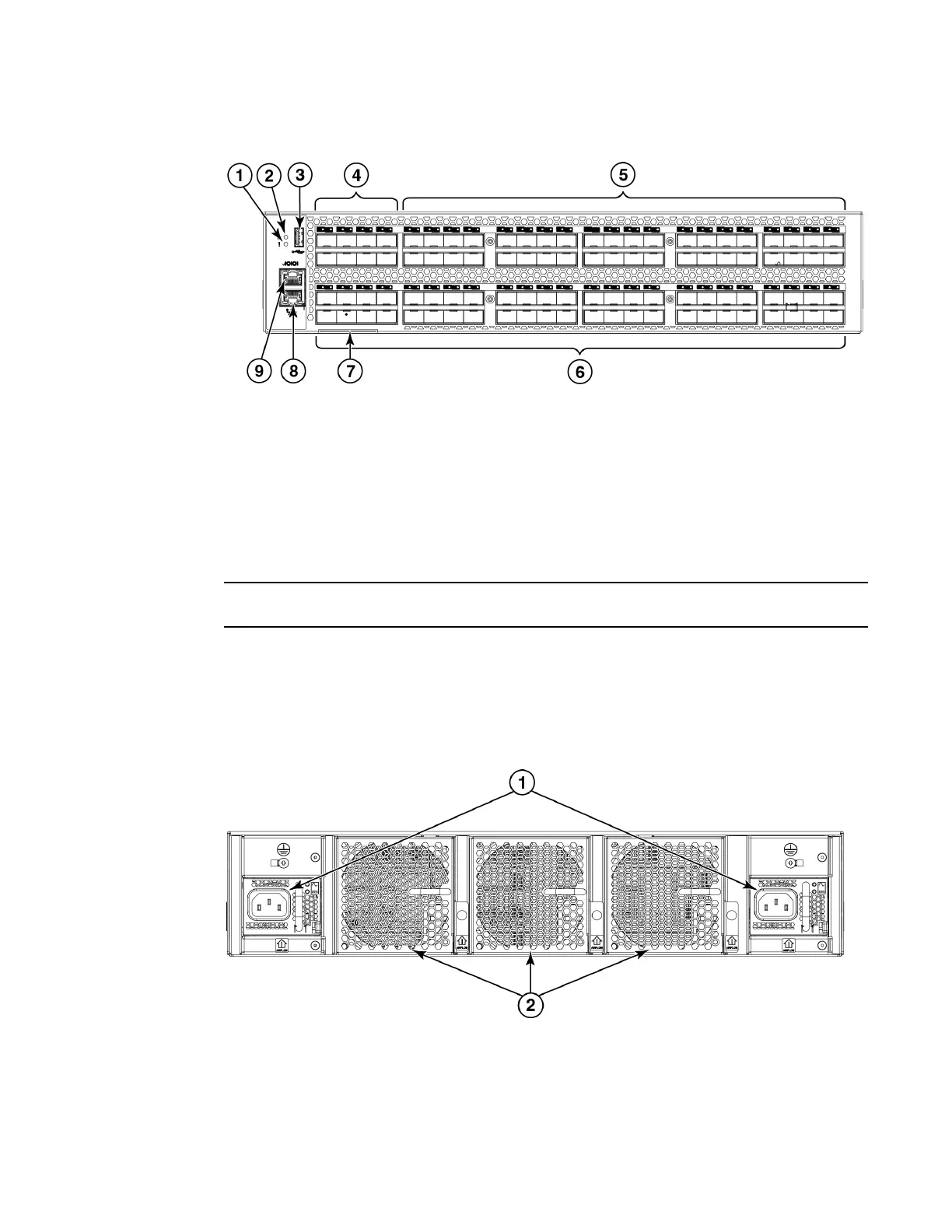

FIGURE 1 Port side view of the Brocade 6520
NOTE
The two LEDs on the serial console port are non-functional.
Non-port side of the Brocade 6520
Figure 2 shows the non-port side of the Brocade 6520, which contains the power supplies
(including the AC power receptacle) and fans.
FIGURE 2 Non-port side of the Brocade 6520
1 System status LED 6 FC ports 48-95
2 System power LED 7 Switch ID pull-out tab
3 USB port 8 Management Ethernet port with LEDs
4 FC ports 0-7 (all LEDs above) 9 Serial console port
5FC ports 8-47
1 Power supplies 2 Fans
