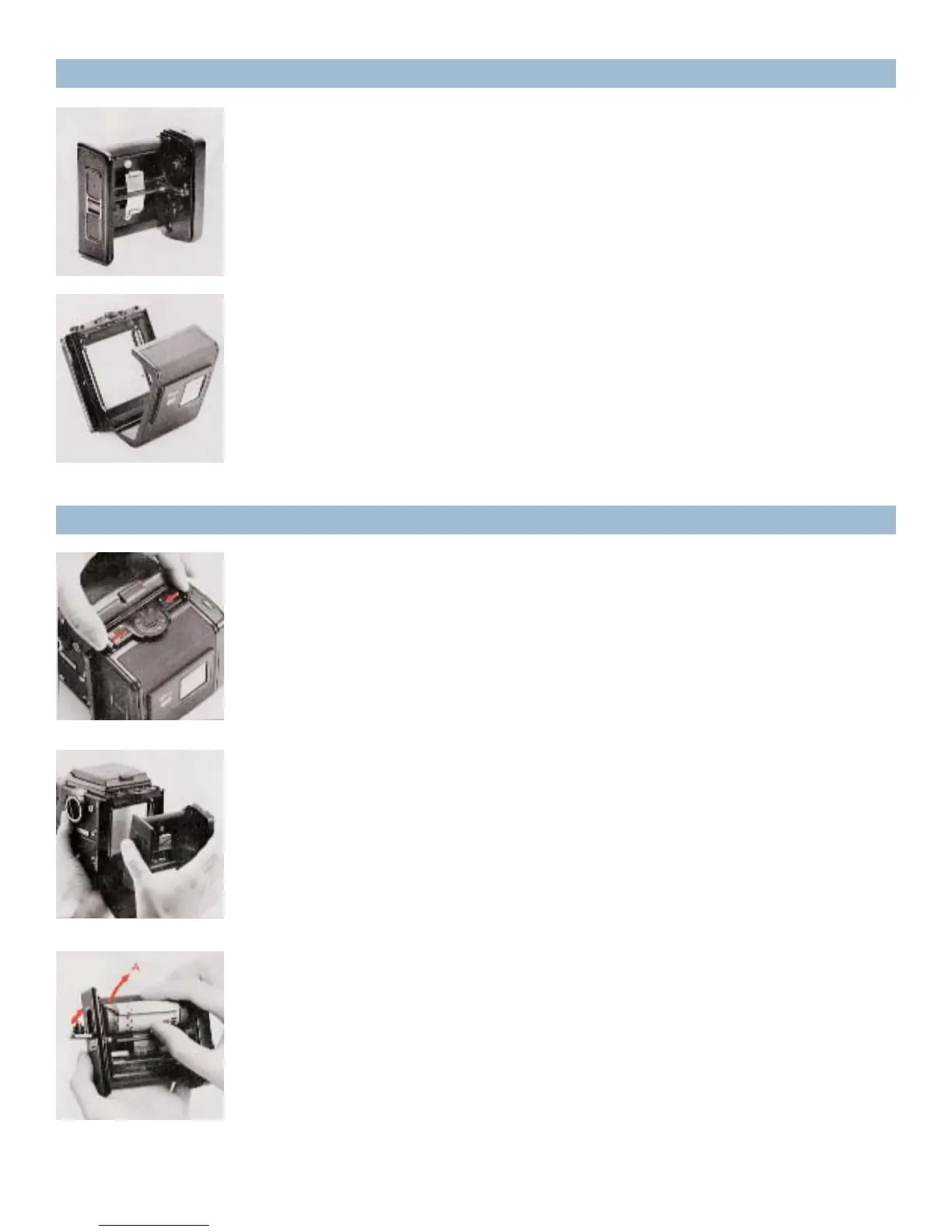

A. The film back consists of a film holder and a film back frame, with
exclusive film backs available for 120 and 220 roll films. The film hold-
er has an insert or frame for loading film, as well as a built-in winding
mechanism.
B. The film back frame has a base with a dark slide slit and a back
cover with an ASA/ISO film dial and a film type indicator frame. The
film back frame completely encloses the film holder and shields it
from outside light, as well as connecting it to the main camera body
and also coupling with the finders with built-in exposure meters.
A. To open the back cover, squeeze the left and right back cover
release buttons, in the arrow-indicated directions, at the same time
and the back cover will open.
B. The film holder can be taken out for film loading, upon opening
the back cover.
4. Construction of Film Back
5. Film Loading
C. There are two spool holders on the film holder. The top one is for
the fresh film spool and the bottom is for the empty take-up spool.
The left side shaft of spool holder can be opened by pushing the
fresh film spool outward in the arrow-indicated "A" direction.
Therefore, insert the right end of the spool on to the right side shaft,
which is fixed, and then close the left side holder (shaft) that will
engage the spool.
* The spool holders on the left side will be locked securely when the
back cover is closed.
