Brooks Automation
260301 Revision A 33
ATR60LF RFID Reader CAN Bus 6 Installation
Product Manual 6.10 Input and Output

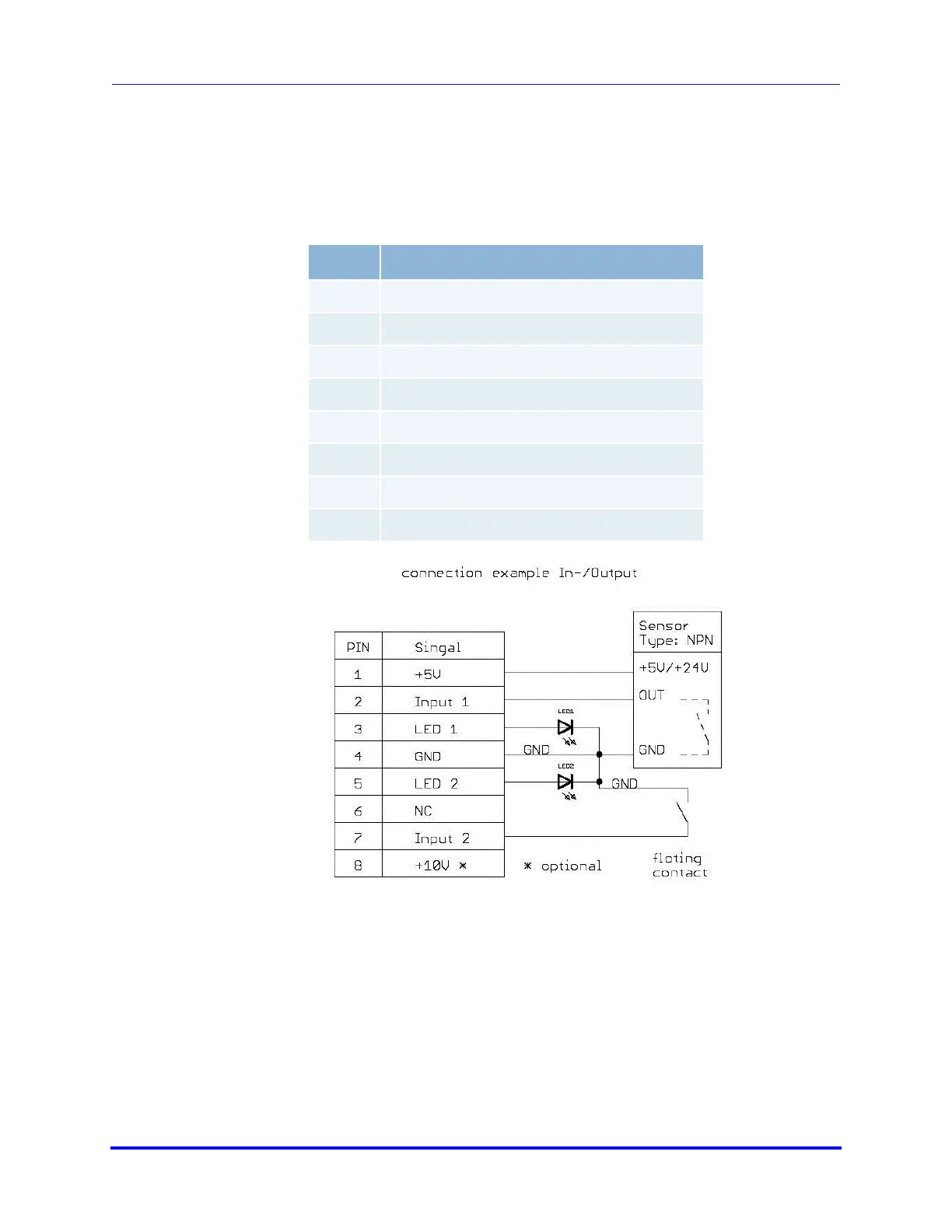

6.10 Input and Output
The port labeled Remote I/O is used for external presence sensors and an
external output like a LED for status indication. The input signal is used for
pod placement and pod removal events.
The port is a shielded RJ45 socket.
###
Pin Signal
1 + 5 V
2 Input 1
3 LED 1 out
4 GND
5 LED 2 out
6 NC
7 Input 2
8 10 V (optionally)
