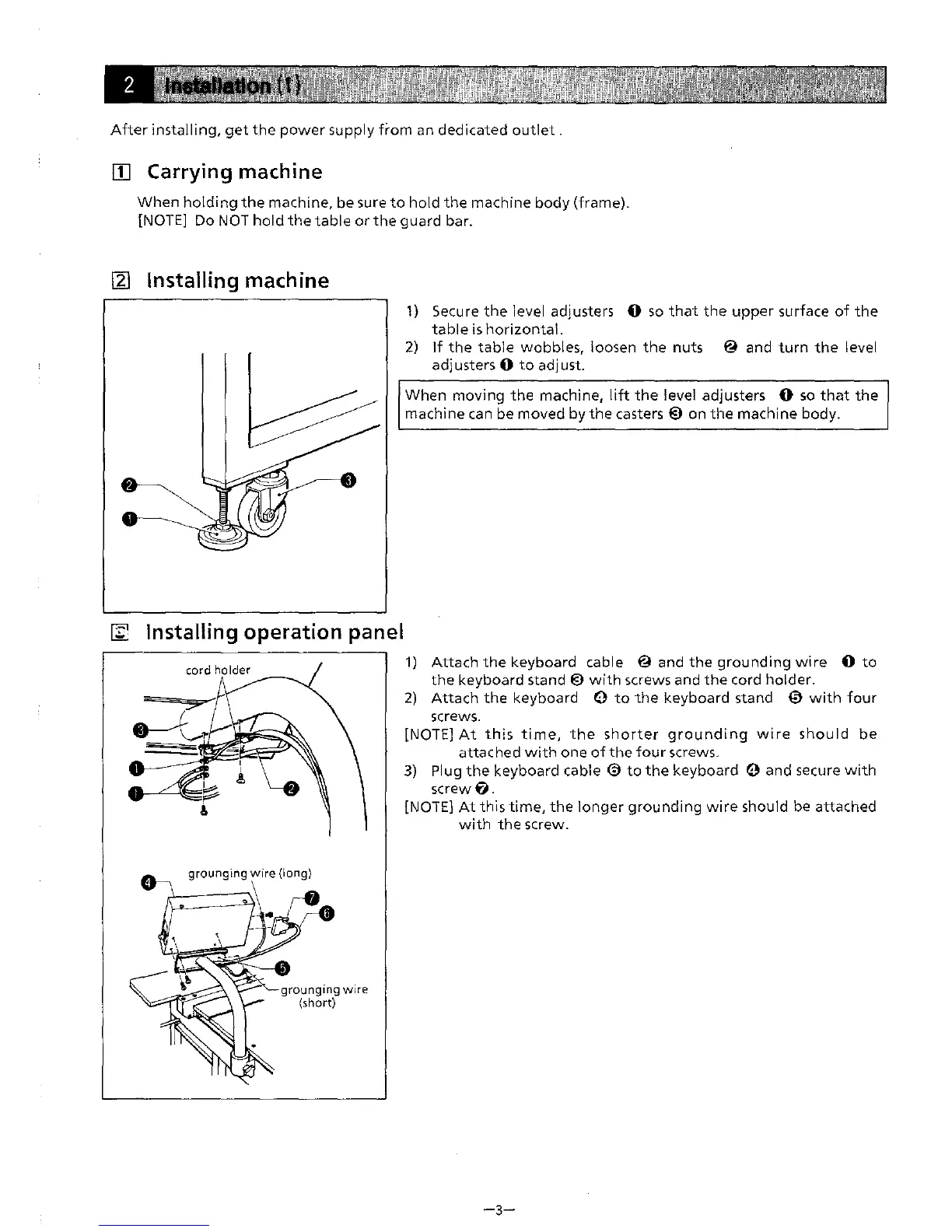

Brother BAS-411 - 2 Installation

After installing, get the power supply from an dedicated outlet.
!Il Carrying machine
When holding the machine, be sure to hold the machine body (frame).
[NOTE] Do NOT hold the table or the guard bar.
~ Installing machine
Installing operation panel
grounging wire
(short)
1) Secure the level adjusters 0 so that the upper surface of the
table is horizontal.
2) If the table wobbles, loosen the nuts @ and turn the level
adjusters
0 to adjust.
When
moving the machine, lift the level adjusters 0 so that the
machine can be moved by the casters@ on the machine body.
1) Attach the keyboard cable @ and the grounding wire 0 to
the keyboard stand @ with screws and the cord holder.
2) Attach the keyboard 0 to the keyboard stand 0 with four
screws.
[NOTE] At this time, the shorter grounding wire should be
attached with one of the four screws.
3) Plug the keyboard cable @to the keyboard 0 and secure with
screw a.
[NOTE] At this time, the longer grounding wire should be attached
with the screw.
-3-
