Brother DCP-8110DN

2-12
Confidential

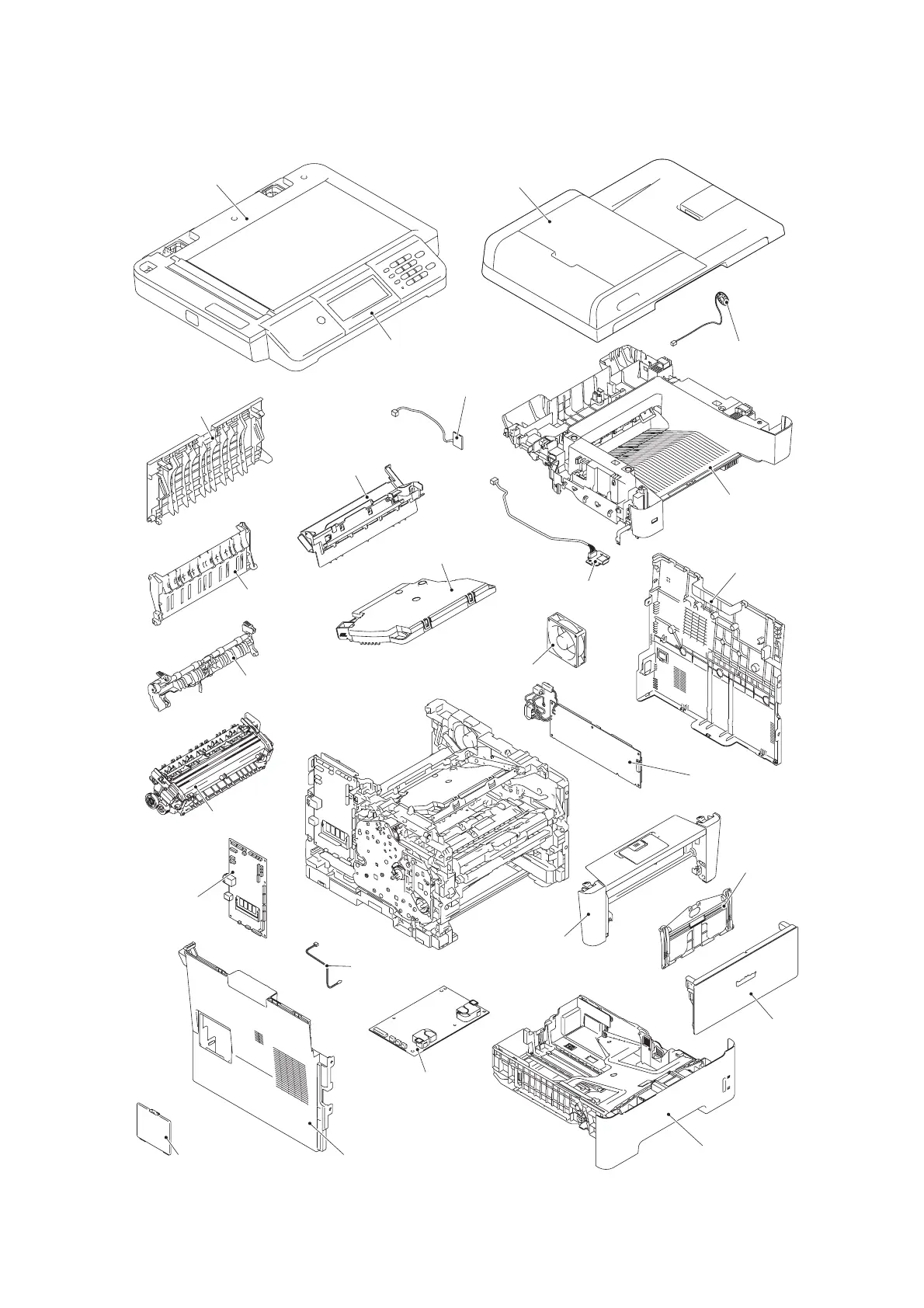

2.5 Main Components
Fig. 2-8
Outer chute
ADF unit
Document scanner unit
Control panel ASSY
Wireless LAN PCB ASSY
Speaker unit
Joint cover
USB host PCB ASSY
Main fan
Side cover R ASSY
Laser unit
Air duct
Back cover
Fuser cover
Fuser unit
Main PCB
ASSY
Access cover
Side cover L
Paper tray 1
MP cover
ASSY
Front cover ASSY
Internal temperature
thermistor
High-voltage
power supply
PCB ASSY
Low-voltage
power supply
PCB ASSY
MP paper
guide ASSY
