(5) Release the lock, and disconnect the LCD flat cable from the panel PCB ASSY.

(6) Disconnect the back light harness from the panel PCB ASSY.

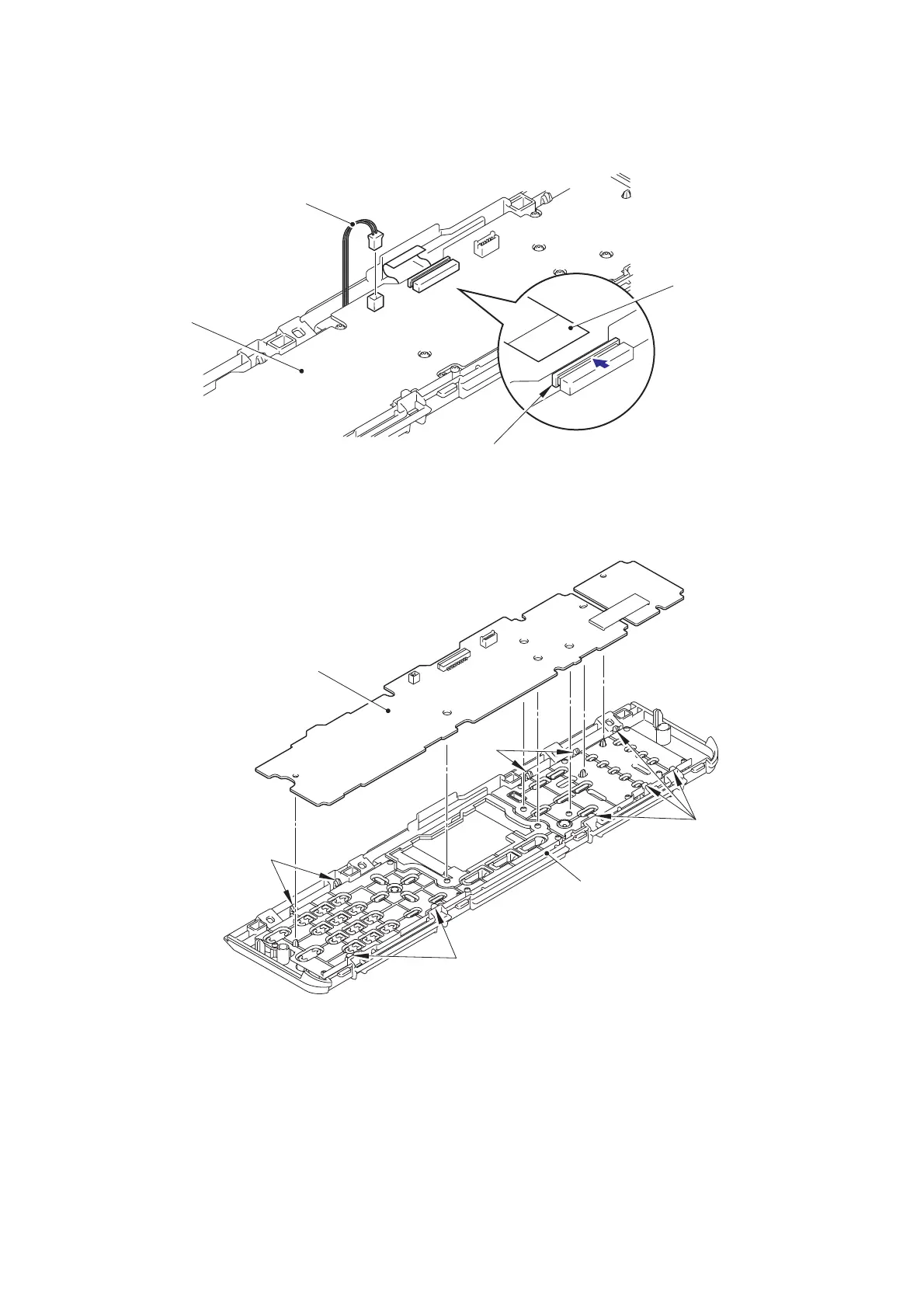

Fig. 3-73

(7) Release the ten hooks (six for DCP models), and remove the panel PCB ASSY from the

control panel ASSY.

Fig. 3-74

LCD flat cable

Back light harness

Panel PCB ASSY

Lock

Panel PCB ASSY

Hooks

Control panel ASSY

Hooks
